Original
Operating Instructions
VERSION 1.9

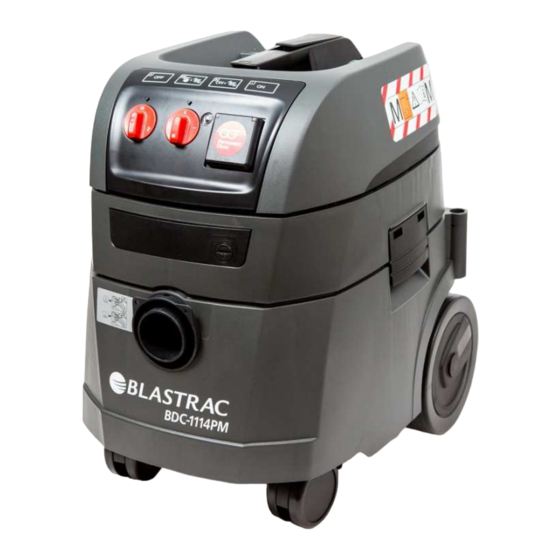

BDC-1114PM / BDC-1114PH / BDC-1114PH CA ASBESTOS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BDC-1114PM and is the answer not in the manual?

Questions and answers

Summary of Contents for Blastrac BDC-1114PM

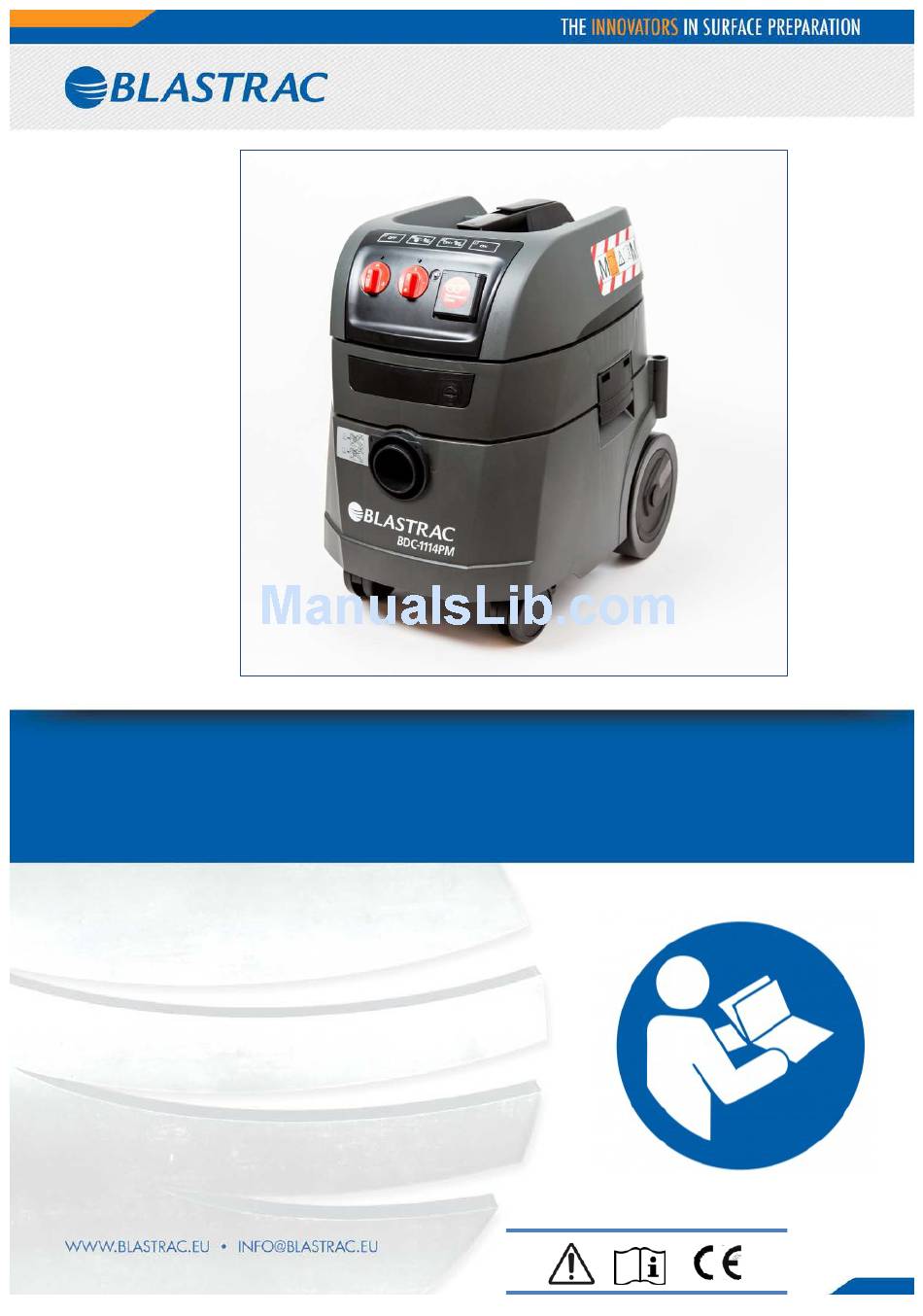

  • Page 1 Original Operating Instructions VERSION 1.9 BDC-1114PM / BDC-1114PH / BDC-1114PH CA ASBESTOS...
  • Page 2 Ø 4 - 3.5 – 3 - 2.5 mm D Motor protection filter ES 408040 J Connector ES 529752 for Blastrac Ø 51 mm hose E Crevice nozzle (Option) ES 430690 K Blastrac PU dust hose Ø51 mm 004583 (Option) L Fleece filter-bag (M-class) ES 435305...
  • Page 3: Machine Description

    Application The BDC-1114 is especially designed to be used in combination with Blastrac hand grinders, hand scarifiers, hand blaster machines and some other types of Blastrac machines. But the BDC-1114 is also a perfect dust collector for all other kind of hand equipment and machines.
  • Page 4: Filter Cartridges

    Labels: The following labels are placed on the machine. Type plate on all classes machines Descriptions : Data regarding power supply.  IP enclosures  Serial number  CE marking  Class M appliances. WARNING: This unit contains hazardous dust. Emptying and maintenance, including the removal of the dust bag, may only be carried out by someone who is familiar with the unit and wearing suitable protective...
  • Page 5 -All parts of the dust collector must be considered as contaminated when they are removed from the hazardous zone and appropriate actions must be taken to prevent dust from dispersing. -Blastrac B.V. cannot be held responsible for the misuse and /or failure to comply with the rules by the user.
  • Page 6: Safety Advice

    1 Safety advice DANGER! – WARNING! ▶Danger of suffocation ● Keep packaging material such as plastic bags away from children. ▶Never stand or sit upon the vacuum device. ▶Particular caution is advised when ascending stairs. Pay attention to standing safely. ▶Do not pull the suction hose and connection line over sharp edges, kink it or shut it.
  • Page 7 DANGER! – WARNING! ▶If the connector line of the vacuum device has been damaged, it must be replaced with a special connector line which is available from the producer or their service. ▶Electric brushes: Do not allow the rotating brushes to get into contact with the power connection line.
  • Page 8 Read the operating manual carefully before starting to use the vacuum cleaner. It provides important instructions for the operation, safety, care and 3 Before use maintenance. Keep the operating manual in a safe ▶▶ When unpacking, check that the delivery is place and, in case you sell the unit, hand it on to the next complete and that there is no transport damage.
  • Page 9: Switching On And Off

    Hose inner Selection switch Information diameter position 8, page 2) Ø 50 mm 35 (Blastrac dust hose) Clean the water level sensors (1) regularly Ø 35 mm 35 (70 m /hr) and examine for signs of damage.
  • Page 10: Emptying The Container

    7 Emptying the container ▷▷ Wet vacuum cleaning without paper filter bags. The folding filter cassettes are designed for wet Information vacuum cleaning. The fitted sensor switches the motor off when the container is full. The handling of the vacuum Only permitted for dust with AGW‘s >...
  • Page 11: Changing The Filter

    8 Changing the filter Information Operating the rotary slider 8.1 Changing the folding filter ▶▶ Push the rotary slider from the inside to the outside, turn through 180° (see mark) and then ▷▷ Shake the folding filter cassettes before push inwards again from the outside through the changing them.
  • Page 12: Maintenance

    10 Transport Caution ▷▷ Insert the closing plug of the vacuum cleaner into the suction aperture. ▷▷ The motor head must be securely fixed to the Precautionary measures with vacuum container (close the latches). cleaners class H and M ▷▷ Place the accessories in a suitable plastic bag The outside of the vacuum cleaner should be and seal the plastic bag or place it in the tool cleaned and wiped down or should be treated with...
  • Page 13: Genuine Accessories

    PE emptying and disposal bag only for vacuum cleaner H ASBESTOS Set of 5 ASBESTOS Ordernr. ES430249 Additional accessories can be found in the special accessory list which can be obtained on request from the Blastrac team on the internet: www.Blastrac.eu.
  • Page 14: Technical Data

    14 Technical Data BDC-1114PM BDC-1114PM BDC-1114PM BDC-1114PH BDC-1114PH BDC-1114PH 230V 110V-50Hz 120V-60Hz Power consumption 1,2 kW 1,2 kW 1,2 kW Max. power 1,4 kW 1,4 kW 1,4 kW Electrical connection / 220-240V / 50-60 Hz 100-120V / 50 Hz 100-120V / 60 Hz...
  • Page 15: Ec Declaration Of Conformity

    Original version. EC DECLARATION OF CONFORMITY in accordance with Appendix II sub A of Directive 2006/42/EC BLASTRAC B.V. Utrechthaven 12 NL - 3433 PN NIEUWEGEIN The Netherlands Declare under our sole responsibility that the dust collecting machine as described below,...
  • Page 16 Inspection comments Inspection before initial operation on: Date of initial operation: Recurring inspections Date Findings Repairs / Cleaning Test...
  • Page 17 *competent person Other comments:...
  • Page 18 SERVICE MANUAL BDC-1114 VERSION 1.5...
  • Page 19 Index 1. Assembly plans & Spare parts Contact...
  • Page 20 1. Assembly plans & Spare parts...
  • Page 21: Operating Unit

    Operating Unit...
  • Page 22 Operating unit Item Part number Description Qty. 1+2+3 ES407937 Handle, cover plate & bolt ES512761 Handle ES407944 Bolt ES590448 Power cord 230V / 50-60Hz ES552866 Power cord 110V / 60Hz (USA) ES581910 Power cord 110V / 50Hz (UK) ES531137 Strain relief clamp ES510484 Cover housing ES408019...
  • Page 23 Suction unit...
  • Page 24 Suction unit Item Part number Description Qty. ES417714 Motor plug connector ES408224 Bearing pin ES510033 Motor housing ES723723 Rivet ES535395 Flat spring 31/1+37+38+ Pressure spring + locking knob + lock bar + ES408231 38/1+38/2 locking spring 39+39/1 ES408767 Electrode + clamping piece 40+41 ES414775 Motor 230V + upper sealing...
  • Page 25 Dustbin Item Part number Description ES011851 Container ES511399 Axle 3+4+5 ES408347 Wheel complete ES408903 Wheel plug ES408941 Wheel over ES408408 Castor wheel ES512549 Discharge bolt ES408958 Drain set ES406930 Container stopper ES509037 Rotary valve...
  • Page 26: Product Warranty

    13201 North Santa Fe Avenue  Oklahoma City, OK 73114  Ph: 800-256-3440  F: 405-478-8608 blastrac.com Product Warranty Standard Equipment Products: Blastrac warrants its Blastrac Standard Equipment Products against defects in quality of material and workmanship, under normal and proper use for a period of 1 Year from the date of delivery, as noted on the returned warranty registration card, or, in the case of Rental Fleet Machines, 180 Days from the date of assignment to Rental Fleet.
  • Page 27 Blastrac Returned Merchandise Authorization (RMA) Form. Blastrac will then send the RMA form to the customer authorizing the return of the parts for warranty evaluation. The parts must be received within sixty (60) days following the RMA origination date or the warranty claim will be denied.
  • Page 28 ® the information recorded here by registering online at blastrac.com, or complete this page and fax to 866-485-1046, or if you prefer, detach and mail to: Blastrac, 13201 North Santa Fe Avenue, Oklahoma City, OK 73114-9901...
  • Page 29 Contact Blastrac NA 13201 North Santa Fe Avenue Oklahoma City, OK 73114 Tel: 800-256-3440 Fax: 405-478-8608 www.blastrac.com...

This manual is also suitable for:

Bdc-1114phBdc-1114ph ca asbestos
