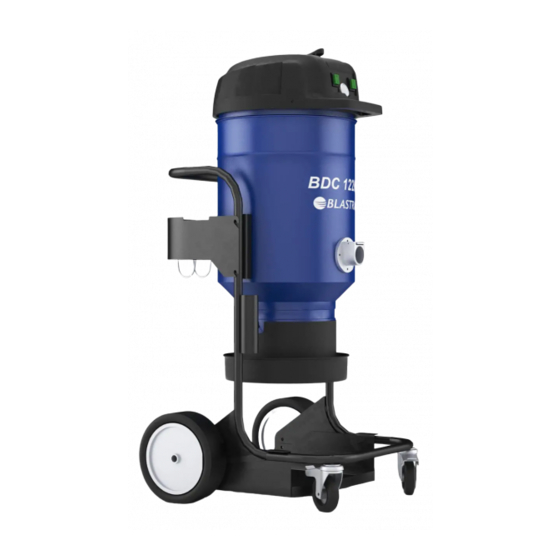

- Page 1 BDC122M BDC122H MANUALE DI ISTRUZIONI INSTRUCTIONS MANUAL MANUEL D’INSTRUCTIONS BETRIEBSANLEITUNG MANUAL DE INSTRUCCIONES C439-I-GB-F-D-E 08/2017...
-
Page 2: Table Of Contents
Main and absolute filter disassembly and replacement .........12 Longopac replacement ..................13 ® At the end of a cleaning session ...............13 Tightness inspection ..................14 Disposing of the vacuum cleaner ..............14 Wiring diagrams ....................14 Recommended spare parts .............. 15 Troubleshooting ................16 www.blastrac.eu ‒ info@blastrac.eu... -
Page 3: Instructions For Use
Children must be supervised to make sure they will not play with the vacuum cleaner. www.blastrac.eu ‒ info@blastrac.eu... -
Page 4: Improper Use
Naked flames. Combustible gas. Flammable liquids, aggressive fuels (gasoline, solvents, acids, alkaline solutions, etc.). Explosive dust/substances and/or ones liable to ignite in a spontaneous way (such as magnesium or aluminium dusts, etc.). NB: Fraudulent use is not admitted. www.blastrac.eu ‒ info@blastrac.eu... -
Page 5: Ec Declaration Of Conformity
L: retains at least 99% of vacuumed particles (see EN 60335-2-69, Annexe AA); M: retains at least 99.9% of vacuumed particles (see EN 60335-2-69, Annexe AA); H: retains at least 99.995% of vacuumed particles (see EN 60335-2-69, Annexe AA). www.blastrac.eu ‒ info@blastrac.eu... -
Page 6: Vacuum Cleaner Description
Besides the primary filter, which retains the most common types of dust, the vacuum cleaner is fitted with a secondary filter (absolute class H) with a higher filtering capacity for fine dusts and dusts that are hazardous to health. www.blastrac.eu ‒ info@blastrac.eu... -
Page 7: Optional Kits
H07 RN - F. The same rule applies if an extension is used. ■ The cable must be replaced by the manufacturer’s Service Centre staff or by equivalent qualified personnel. www.blastrac.eu ‒ info@blastrac.eu... -
Page 8: Extensions
For maintenance procedures not described off the power supply when the current in this manual, please contact the discharged to the ground exceeds 30 mA for manufacturer’s technical support or sales 30 msec. or an equivalent protection circuit. network. www.blastrac.eu ‒ info@blastrac.eu... - Page 9 A (mm) B (mm) C (mm) 1275 (1) Net weight Storage conditions: Operating conditions: T: -10°C ÷ +40°C Maximum altitude: 800 m Humidity: 85% (Up to 2,000 m with reduced performances) T: -10°C ÷ +40°C Humidity: 85% www.blastrac.eu ‒ info@blastrac.eu...
-
Page 10: Technical Data Bdc-122 (Us)
C (mm - in) 1275 - 50.19” (1) Net weight Storage conditions: Operating conditions: T: -10°C ÷ +40°C Maximum altitude: 800 m Humidity: 85% (Up to 2,000 m with reduced performances) T: -10°C ÷ +40°C Humidity: 85% www.blastrac.eu ‒ info@blastrac.eu... -
Page 11: Controls And Indicators
Consult the “Troubleshooting” chapter if Turn the button (1) to “0” position to stop the ■ faults occur. first motor (indicator light off). ■ Turn the button (2) to “0” position to stop the second motor (indicator light off). www.blastrac.eu ‒ info@blastrac.eu... -
Page 12: Primary Filter Shaker
Place the two clamps at a distance of 50 mm between them, then with a pair of scissors cut between the two clamps. ■ Remove the bag full of dust (1, Fig.8) and place the new section of Longopac (3, Fig.8). ® www.blastrac.eu ‒ info@blastrac.eu... -
Page 13: Maintenance, Cleaning And Decontamination
■ This procedure must also be followed when the filters are eliminated (primary and absolute filters). ■ Compartments that are not dust-tight must be opened with suitable tools (screwdrivers, wrenches, etc.) and thoroughly cleaned. www.blastrac.eu ‒ info@blastrac.eu... -
Page 14: Main And Absolute Filter Disassembly And Replacement
Unlock the safety bolt (6). ■ ■ Release the closing band (7). ■ Remove the head (8) and the cage. but do not lift the star filter (9). Insert the belt (10) around the filter chamber. ■ www.blastrac.eu ‒ info@blastrac.eu... -
Page 15: Longopac ® Replacement
(9) and turning it as shown in the figure (26, Fig.9). ■ Lock the lever with the nut (4), then reinstall the cover (3). Fasten the closing band (7). ■ ■ Tighten the safety bolt (6) again. www.blastrac.eu ‒ info@blastrac.eu... -
Page 16: Tightness Inspection
Replace the gasket (1, Fig. 13) if it is not tight, or if it other commercial waste. is torn, cut, etc. Wiring diagrams Model (US) Figure 15 Item Type Description Q.ty 4083901814 Switch 2 pole 20A 4083901814 Switch 2 pole 20A www.blastrac.eu ‒ info@blastrac.eu... -
Page 17: Recommended Spare Parts
Kit for safe replacement of the filter 4089100953 Longopac BLS-1058 ® 230V 1000W Motor 4085400024 110V 1000W Motor 4085400026 Brushes (carbon) for 230V 1000W motors (2 brushes) 40000885 Brushes (carbon) for 120V 1000W motors (2 brushes) 40000886 www.blastrac.eu ‒ info@blastrac.eu... -
Page 18: Troubleshooting
Remove and replace the (carbon) motor Noisy motors broken brushes. Check all ground connections. In particular on Electrostatic current on the Missing or inefficient grounding the vacuum inlet fitting; replace the hose with vacuum cleaner an antistatic hose. www.blastrac.eu ‒ info@blastrac.eu... - Page 19 Instruction Manual BDC-122M / BDC-122H 18/18 www.blastrac.eu ‒ info@blastrac.eu...
- Page 20 Operating manual BDC-122M / BDC-122H 1/16 13 A 3000 W Kg 71 Ref.No: 50/60 Hz Nilfisk S.p.A. 41059 ZOCCA (Mo) Italy www.nilfisk.com www.blastrac.eu ‒ info@blastrac.eu...
- Page 21 Operating manual BDC-122M / BDC-122H 2/16 www.blastrac.eu ‒ info@blastrac.eu...
- Page 22 Operating manual BDC-122M / BDC-122H 3/16 www.blastrac.eu ‒ info@blastrac.eu...
- Page 23 Operating manual BDC-122M / BDC-122H 4/16 1 (RED) 3 (GREEN) www.blastrac.eu ‒ info@blastrac.eu...
- Page 24 Operating manual BDC-122M / BDC-122H 5/16 www.blastrac.eu ‒ info@blastrac.eu...
- Page 25 Operating manual BDC-122M / BDC-122H 6/16 www.blastrac.eu ‒ info@blastrac.eu...
- Page 26 Operating manual BDC-122M / BDC-122H 7/16 www.blastrac.eu ‒ info@blastrac.eu...
- Page 27 Operating manual BDC-122M / BDC-122H 8/16 www.blastrac.eu ‒ info@blastrac.eu...
- Page 28 Operating manual BDC-122M / BDC-122H 9/16 www.blastrac.eu ‒ info@blastrac.eu...
- Page 29 Operating manual BDC-122M / BDC-122H 10/16 www.blastrac.eu ‒ info@blastrac.eu...
- Page 30 Operating manual BDC-122M / BDC-122H 11/16 www.blastrac.eu ‒ info@blastrac.eu...
- Page 31 Operating manual BDC-122M / BDC-122H 12/16 www.blastrac.eu ‒ info@blastrac.eu...
- Page 32 Operating manual BDC-122M / BDC-122H 13/16 Model (EU) www.blastrac.eu ‒ info@blastrac.eu...
- Page 33 Operating manual BDC-122M / BDC-122H 14/16 Model (US) www.blastrac.eu ‒ info@blastrac.eu...
- Page 34 - Ak by neboli rešpektované pokyny a nariadenia uvedené v tejto užívatel’ské príručke. - Če niso bila upoštevana navodila in uredbe, ki so uvedene v tem priročniku za The item of equipment identified above has been subject to internal manufacturing checks with monitoring of the final assessment by BLASTRAC B.V. uporabnka.
- Page 35 Operating manual BDC-122M / BDC-122H 16/16 www.blastrac.eu ‒ info@blastrac.eu...
- Page 39 BLASTRAC THE NETHERLANDS BLASTRAC POLAND BLASTRAC FRANCE EUROPEAN HEAD OFFICE SALES & SERVICE CENTRE SALES & SERVICE CENTRE WWW.BLASTRAC.EU WWW.BLASTRAC.PL WWW.BLASTRAC.FR BLASTRAC ITALY BLASTRAC GERMANY BLASTRAC UKRAINE SALES & SERVICE CENTRE SALES & SERVICE CENTRE SALES & SERVICE CENTRE WWW.BLASTRAC.IT WWW.BLASTRAC.DE...
