B41XTCE-11 Gas Fireplace

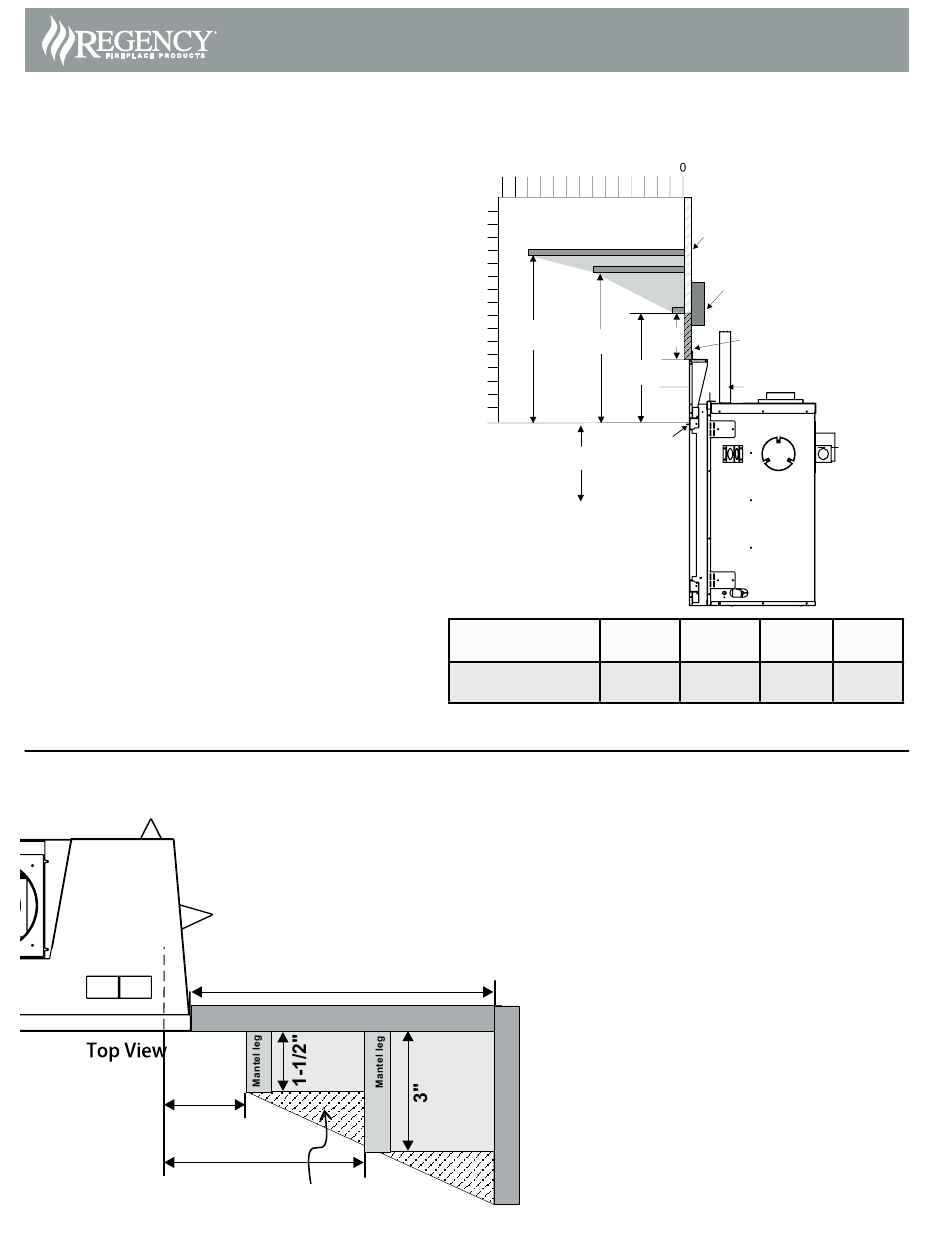

MANTEL CLEARANCES
Due to the extreme heat this fireplace emits, the mantel clearances are critical.
Combustible mantel clearances from top of front
facing are shown in the diagram on the right.
Note: A non-combustible mantel may be
installed at a lower height if the framing is
made of metal studs covered with a non-
combustible board. The non-combustible
mantel when installed at a lower overall
height may not be lower than 6 inches
from the top of the fireplace opening.
Note: Ensure the paint that is used on the mantel
and the facing is "heat resistant" or the paint
may discolour.
MANTEL LEG CLEARANCES
4"
9" Side Wall
(Measured from side of
Fireplace Opening)
7"
Allowable mantel leg
projection.
Gas Fireplaces
Mantel Clearances
14
12
10
8
6
4
12"
7"
24
B
C
12
D
0
Inches
A
Fireplace
Opening
To Floor
A
Mantel Clearances
B41XTCE
From Top of
32-11/16"
Fireplace Opening
(830mm)
2
Combustible
Non-combustible
Header
(steel stud)
1"
on edge
6"
Non-combustible
Standoff
Top of
B
C
25-13/16"
22-1/16"
(656mm)
(560mm)
D
17-9/16"
(446mm)
