Base Station Setup

1. Click Survey parameters button
2. Click Start Base tab (Figure 1-4). This tab allows the user to apply receiver as the base,
selecting receiver style from the list (how to create new style see "How to create new/edit
receiver style" on page 8), and make settings for base receiver:
If the Write to receiver file check box is selected the logfile will be saved in the receiver's
memory. Type in the logfile name in the edit field below.
3. Click Start button and enter the base station coordinates:
4. Click Start Base button to start transmit corrections.
5. Click Exit to disconnect and close Tracy.
www.javad.com
.

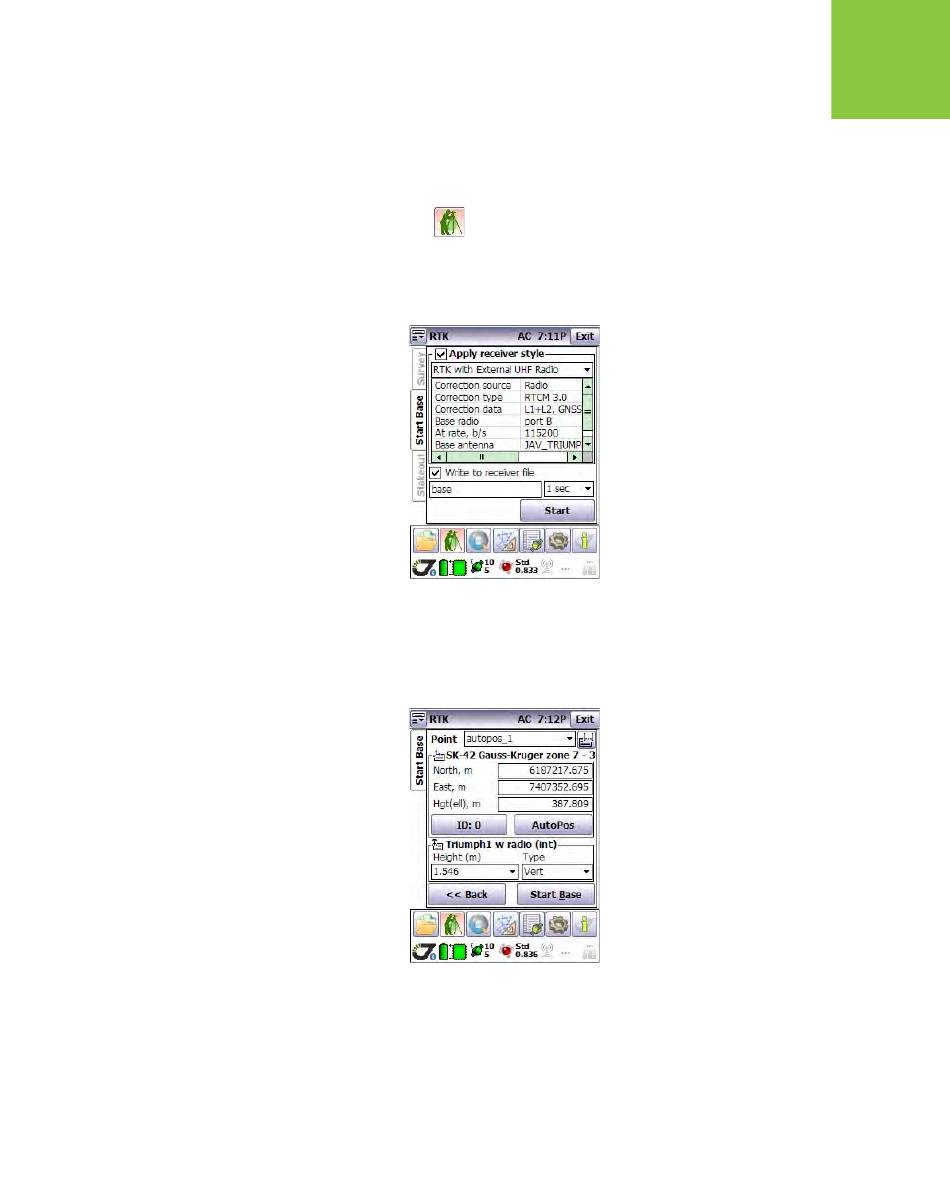

Figure 1-4. Start Base tab
