Javad TRIUMPH-1 Configuration Example page 3

B
ASE AND
T
RACY
Base Configuration (TRIUMPH-1 with external UHF
Modem)
Establishing Connection between receiver and Tracy
1. Configure your external UHF radio (HPT435) as base using ModemVU software. See
detailed description in "HPT435 as Base TRIUMPH-1 as Rover" Application Notes,
available on the www.javad.com.
2. Connect the TRIUMPH-1 receiver to computer. See for details the TRIUMPH-1
Operator's Manual.
3. Connect the external HPT435 UHF radio to receiver's port B with cable Accessory Data-
Ser cable, ODU-7/D15 (1.8 m) p/n 14-578108-01.
Note:
The port B is optional. Make sure you have such option purchased.
www.javad.com
R
OVER

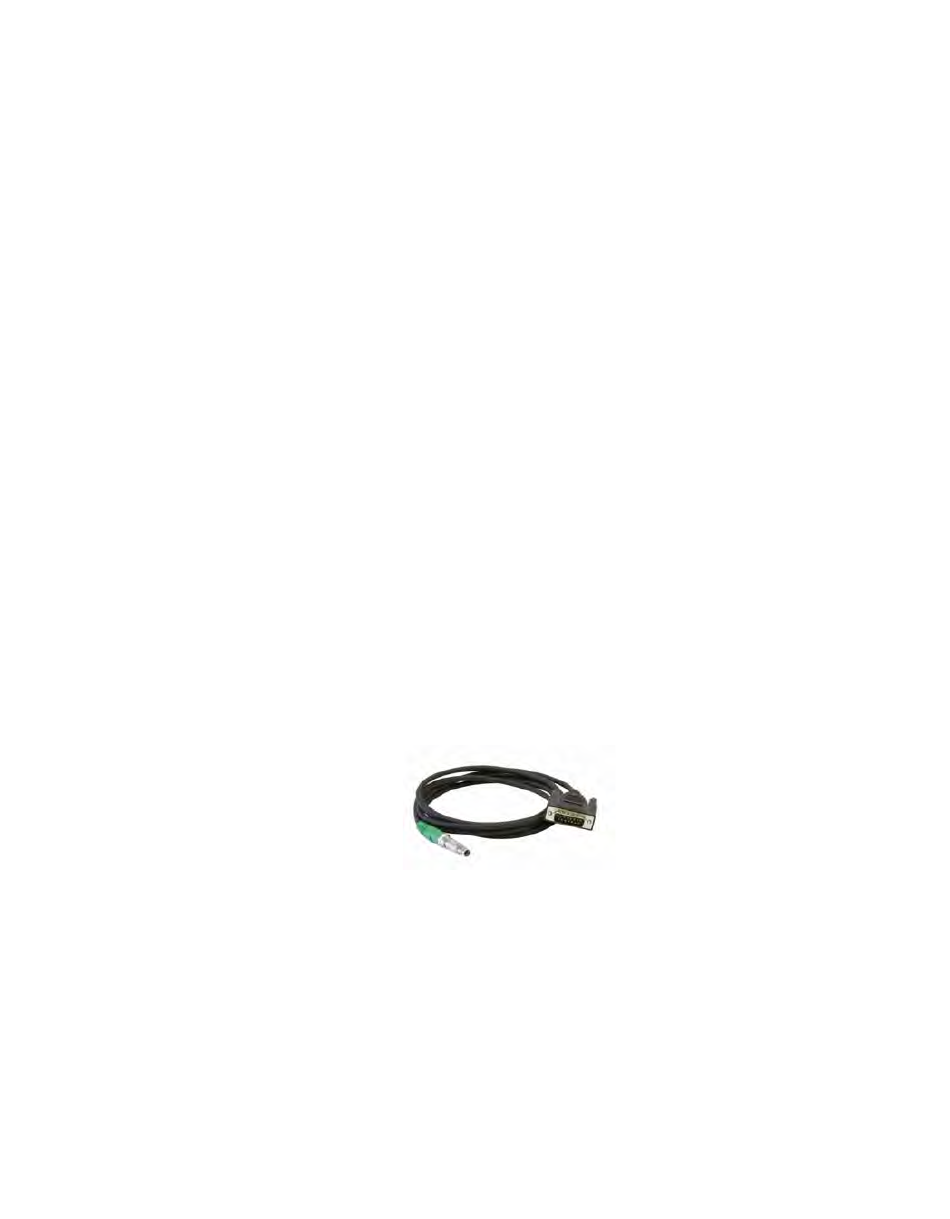

Figure 1-1. Accessory Data-Ser cable, ODU-7/D15
S
ETUP VIA
3
