- Page 1 CDVI-2S/4S/8S 1 by 2 / 1 by 4 / 1 by 8 DVI Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........2 7. Connection Diagram ......3 8. -
Page 6: Introduction
1. INTRODUCTION The DVI Splitter series are high performance, HDCP compliant DVI distribution amplifiers. It allows one DVI signal source to be split to two, four or eight identical buffered outputs for connecting to up to eight DVI displays simultaneously. These models can be used to transfer HDMI signal by using HDMI to DVI adaptor or cable. -
Page 7: Operation Controls And Functions

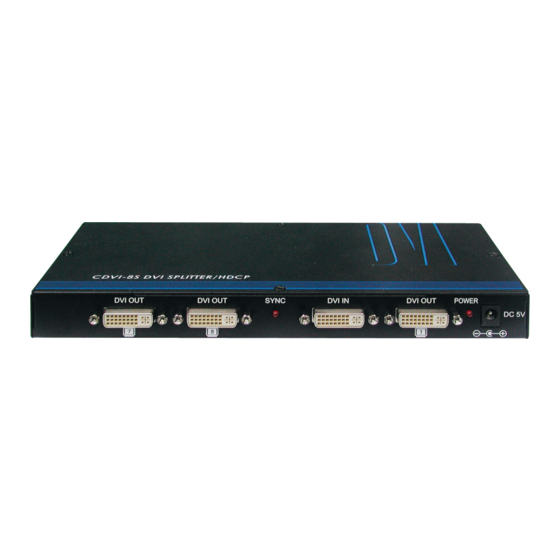

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel Example Shown: 1 by 8 DVI Splitter DVI OUT DVI OUT SYNC DVI IN DVI OUT POWER DC 5V DVI OUT 7/8/1: Connect to a DVI equipped TV/monitor for display of the DVI input source signal. SYNC LED: This LED will illuminate in RED when the source signal is connected and detected by the unit. -
Page 8: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop DVI Input Simultaneous DVI Outputs Power Supply DVI OUT DVI OUT SYNC DVI IN DVI OUT POWER Example Shown: DC 5V 1 by 8 DVI Splitter DVI OUT DVI OUT DVI OUT DVI OUT DVI OUT TV/Monitors... -
Page 9: Specifications
8. SPECIFICATIONS Input Port 1×DVI Output Ports 2, 4 or 8×DVI Audio Sampling Rate Up to 192 kHz (with DVI to HDMI Adaptor) Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±8 kV (air-gap discharge) ±6 kV (contact discharge) Dimensions 102 mm (W)×125 mm (D)×30 mm (H)/2S... -
Page 10: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
