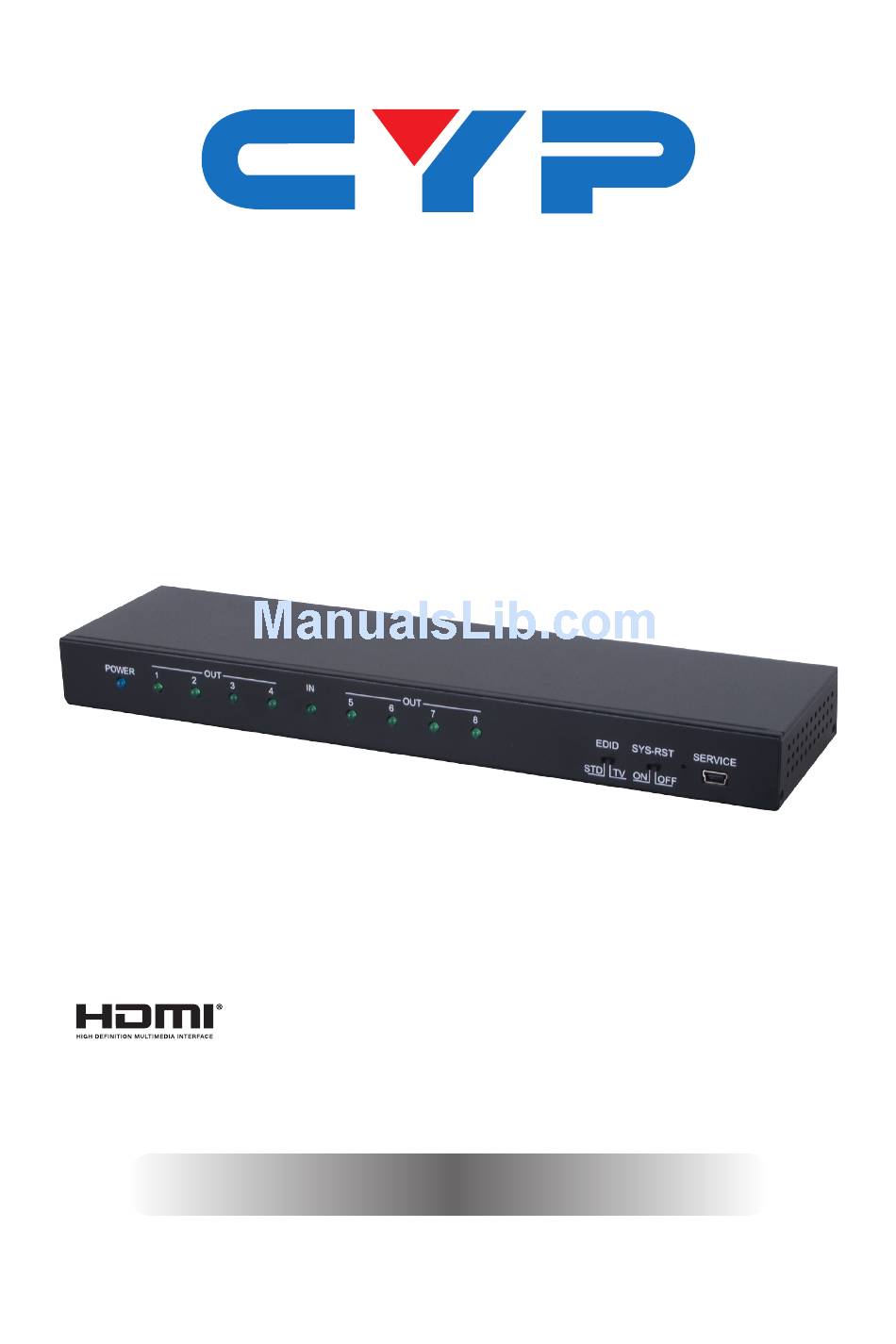

- Page 1 CPRO-U8T 1 by 8 4K UHD HDMI Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION This 1 by 8 4K UHD HDMI Splitter is an advanced solution for splitting and distributing a single HDMI input to 8 HDMI outputs. It provides a high level of audio and video performance with support for resolutions up to 4K@60Hz (YUV4:2:0) resolution and high definition digital audio formats such as LPCM 7.1CH with audio sampling rates up to 192kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master... -
Page 7: Features
5. FEATURES • HDMI 2.0 and DVI 1.0 compliant • HDCP 1.4 compliant • 1 HDMI input and 8 HDMI outputs • System reset function (CEC active source command) • Simultaneous display of a single Ultra High-Definition source on up to 8 4K UHD TV displays •... -
Page 8: Operation Controls And Functions

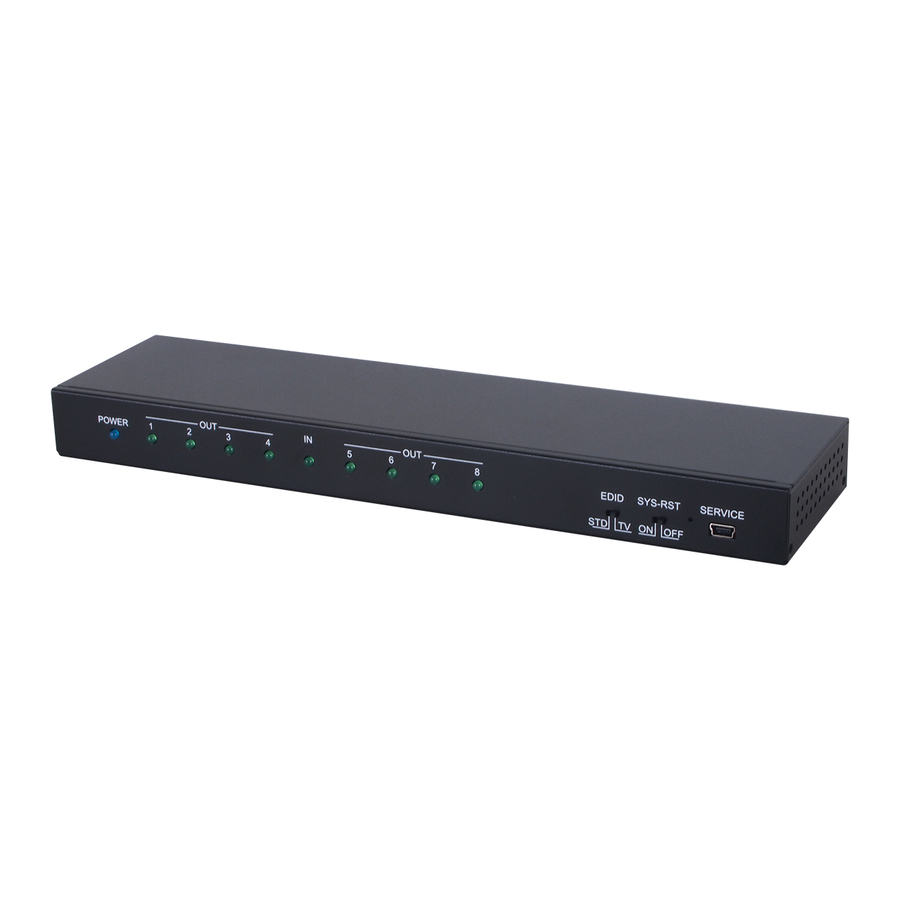

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER EDID SYS-RST SERVICE Power: This LED will illuminate when the device is connected to an active power supply. OUT LED 1~8: When output detected, the LED will illuminate, and when output is not connected, the LED will off. IN: When input detected, the LED will illuminate. -
Page 9: Rear Panel
6.2 Rear Panel DC 5V DC 5V: Plug the 5V DC power adapter into the unit and connect it to an AC wall outlet for power. OUT 1~8: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. IN: Connect to HDMI source equipment such as a media player, game console or set-top box. -
Page 10: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300MHz/9Gbps Input Ports 1× HDMI 1× USB(Service) Output Ports 8 × HDMI Supported Resolutions VGA~WUXGA 480i~1080p@60Hz 4K@24/25/30Hz (4:4:4) 4K@50/60Hz (YUV4:2:0) HDMI Cable I/O Distance* 5M (4K@60Hz, YUV4:2:0, 8-bit) 15M (1080p@60Hz, 8-bit) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/ UL certified) ESD Protection... -
Page 11: Supported Resolutions
8.2 Supported Resolutions DVI and HDMI Supported Resolutions Input Output 640x480@60/72/75/85Hz 800x600@56/60/72/75/85Hz 1024x768@60/70/75/85Hz 1280x1024@60Hz 1366x768@60Hz 1600x1200@60Hz 1920x1080@60Hz 1920x1200@60Hz 1440x576i@50Hz 1440x480i@59.94/60Hz 720x480p@59.94/60Hz ... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CPROU8T...
