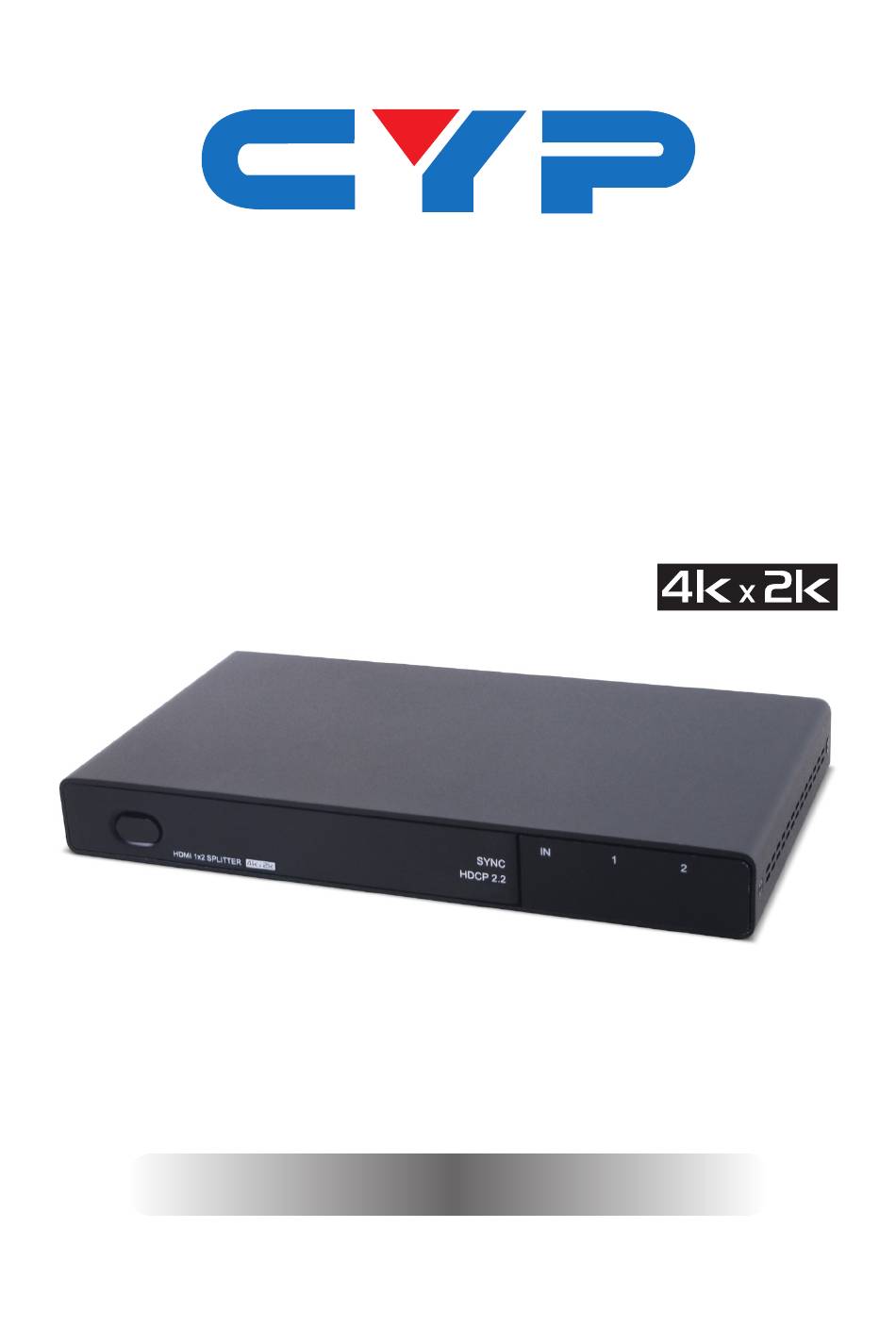

- Page 1 CDPS-UA1H2HS 1 by 2 HDMI 4K UHD Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION This high performance HDMI splitter with HDCP 2.2 is an advanced solution designed to distribute an single HDMI input to two simultaneous HDMI outputs and supports resolutions up to 4K2K@60 Hz (YUV420), as well as High Definition Lossless Audio formats. Capable of receiving and transmitting up to 9 Gbps of bandwidth with no data loss, it also supports the latest features so you can be assured of reliable and high quality HDMI distribution. -
Page 7: Operation Controls And Functions
outputs • Supports HDMI data rates up to 9 Gbps and ‘Deep Color’ up to 1080p/36-bit • Supports EDID selection functions Note: For playback of 4K2K HDMI source signals, a 4K2K capable display and High Speed HDMI cables are required. 6. -
Page 8: Rear Panel
6.2 Rear Panel HDMI OUT EDID DC 5V HDMI IN STD TV FIRMWARE HDMI IN: Connect this input to the HDMI or DVI output of your source device such as a DVD player or Set-top Box with an HDMI cable. HDMI OUT 1~2: Connect to an HDMI equipped display (TV/monitor) or HD Amplifier for simultaneous HDMI distribution. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD/Blu-ray Player HDMI Input Power Supply HDMI OUT EDID DC 5V HDMI IN STD TV FIRMWARE Simultaneous HDMI Outputs Projector HDTV... -
Page 10: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300 MHz/9 Gbps Input Ports 1×HDMI Output Ports 2×HDMI HDMI Cable Distance 1080p@8/12-bit - 10 m 4K2K (3840×2160p@24) - 5 m Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) -
Page 11: Supported Resolutions
8.2 Supported Resolutions RESOLUTION INPUT OUTPUT 640×480@60/72/75 √ √ 720×480@60 √ √ 720×576p@50 √ √ 800×600@60/72/75 √ √ 1024×768@60/70/75 √ √ 1280×720@50/60 √ √ 1280×720p@60 √ √ 1280×768@60 √ √ 1280×800@60 √ √ 1280×1024@60 √ √ 1360×768@60 √ √ 1600×1200@60 √... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CDPS-UA1H2HS...
