- Page 1 CLUX-18W 1 by 8 HDMI 1.3 Splitter Operation Manual CLUX-18W...
- Page 3 Revision History Version No Date Summary of Change 20090209 Preliminary Release 20090403 Cable Distance 1080p/8bit 10M in/15M out 1080p/12bit 6M in/10M out 20121219 Supports Resolution Precautions Failure to follow the precautions described below may cause damage to 1 by 8 HDMI 1.3 Splitter and void the warranty. DO NOT open the case.
-
Page 4: Table Of Contents
Table of Contents Introduction …………………………………………........ Applications......…………………………………………… Package contents..…………………………………………..……. System Requirements....………………………………..……….. Features ......……………………………………………….. Installation ......…………………………………………….. Front Panel ......…………………………………………….. Bottom Panel......………………………………………….. Connection and Installation.............. Specifications.................. -
Page 5: Introduction
1. Introduction The HDMI v1.3 Splitter is the most advanced solution for HDMI signal distribution. This device supports Deep Color (8 bit & 12 bit) video and a new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6,75Gbps). Besides splitting and distributing, this device also does signal amplification and equalization to provide you with high performance I/O of audio and video. -
Page 6: Features
5. Features HDMI v1.3, HDCP1.1 and DVI1.0 compliant Receiver. Deep Color video up to 12bits, 1080p(24/60Hz). One HDMI source simultaneously connected to eight displays HDCP keysets allows each output to work independently when connected to an HDMI display. Can split an HDMI source eight times without any signal loss. -
Page 7: Installation

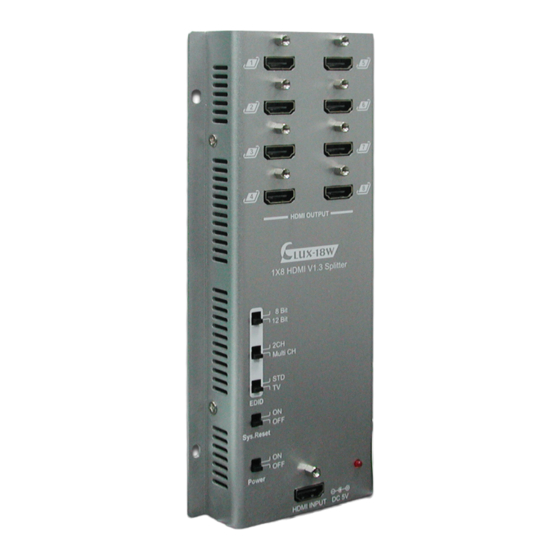

6. Installation Front Panel ① . HDMI OUTPUT 1~8: Connect your LCD TV or HD monitor with HDMI cables. ② . EDID selection: STD/TV – By switching to STD the user can select the deep color and audio channel functions, if switching to TV the unit will read the TV ’... -
Page 8: Bottom Panel
Bottom Panel ① . DC 5V: Plug the 5VDC power supply into the unit and connect the adaptor to AC outlet. Red LED will switch on when the Power is on. ① 7. Connection and Installation LCD TV LCD TV LCD TV LCD TV LCD TV... -
Page 9: Specifications
8. Specifications Video bandwidth 2.25MHz/6.75Gbps (single link) Input port 1 x HDMI Female port Output ports 8 x HDMI Female ports (single link) HDMI output resolution 480i~1080p, 1080p24, VGA~WUXGA Power Supply 5VDC/3.2A (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 93 (W) x 220 (D) x 31 (H) Weight (g) Chassis Material Aluminum... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20090211 MPM-CLUX18W...
