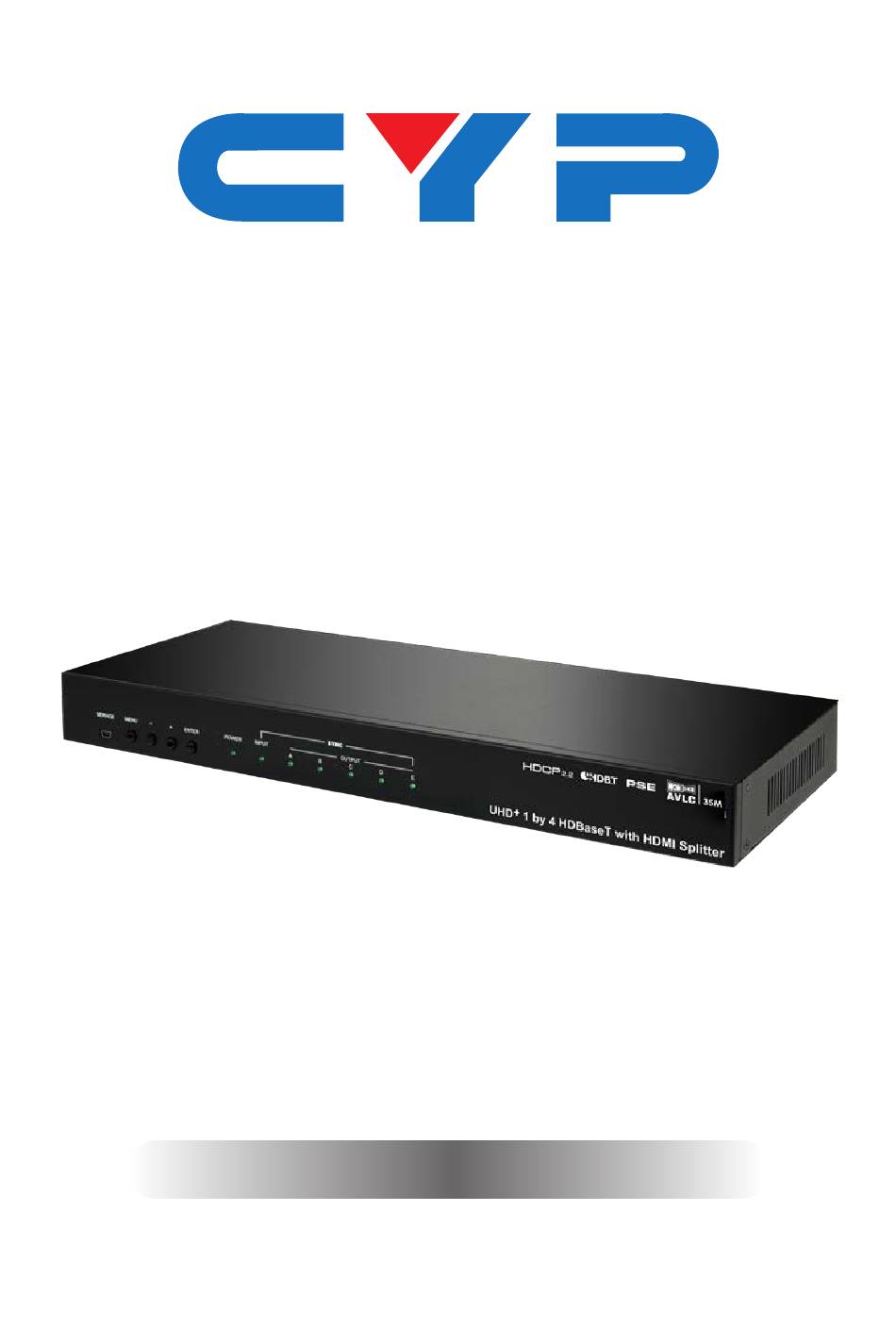

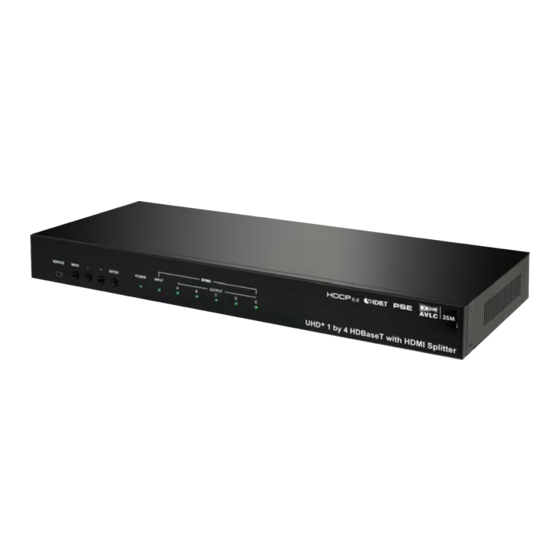

  • Page 1 CHDBT-1H4CPLV 4K UHD 1 by 4+1 HDBaseT/HDMI Splitter Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....4 6.1 Front Panel ..........4 6.2 Rear Panel ..........5 6.3 IR Cable Pinouts ........6 6.4 RS-232 Pinout and Defaults ......

  • Page 6: Introduction

    1. INTRODUCTION This 1×4+1 4K UHD HDMI Splitter provides an advanced solution for splitting and distributing a single HDMI input (up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.2) to 4 HDBaseT outputs as well as to a single HDMI output with analog stereo audio breakout.

  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS • HDMI source equipment such as a media player, video game console or set-top box. • Compatible HDBaseT receivers with AVLC and PoH support is recommended. • HDMI receiving equipment such as an HDTV, monitor or audio amplifier.
  • Page 8 channel LPCM, Bitstream, and HD Bitstream • High-quality DAC (Digital to Analog audio Conversion) with local analog stereo audio breakout (LPCM 2.0 sources only) • Comprehensive EDID management options • Supports standard PoH from the unit to connected HDBaseT receivers (compatible receivers only) Note: The PoH function is designed for powering compatible Receiver units only.

  • Page 9: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel AVLC 35M SYNC SERVICE MENU ENTER POWER INPUT OUTPUT UHD + 1 by 4 HDBaseT with HDMI Splitter SERVICE Port: This port is reserved for firmware update use only. CONTROL BUTTON BLOCK MENU Button: Press to enter the OSD menu, or to back out from menu items.

  • Page 10: Rear Panel

    6.2 Rear Panel ANALOG HDMI CAT 5e/6/7 OUT IR IN IR OUT RS-232 DC 24V HDMI IN HDMI IN Port: Connect to HDMI source equipment such as a media player, game console, or set-top box. DVI sources are supported with the use of an HDMI to DVI adapter. ANALOG R/L Terminal Block: Connect to powered speakers or an amplifier for analog stereo audio output.

  • Page 11: Ir Cable Pinouts

    6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 19200 Data Bits Parity Bits None DE-9 Female Port Stop Bits Flow Control None...

  • Page 12: Osd Menu

    6.5 OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the MENU button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu.
  • Page 13 INPUT INFORMATION 2ND LEVEL 3RD LEVEL Input Name Reso Freq [Current video source details] Depth Color HDCP Audio 1) Input information: Shows details about the current HDMI input signal including detected resolution, pixel clock frequency, color bit depth, color format, HDCP status, audio format and HDR status. OUTPUT 4K CONVERTER 2ND LEVEL 3RD LEVEL...
  • Page 14 conversion method based on each output’s EDID. ■ Bypass: Selecting this will allow the source to go to all outputs without conversion. ■ To YUV420: Selecting this will automatically convert the color space of a 4K@50/60Hz source from 4:4:4 to 4:2:0. ■...
  • Page 15 L/R AUDIO CONTROL 2ND LEVEL 3RD LEVEL Format L/R Clock [Current audio source details] Word Length Channel Num 1) Mute: Mute or un-mute the analog audio output. 2) Volume: Set the output volume for the analog audio output in 0.5 dB steps.
  • Page 16 EDID CONTROL 2ND LEVEL 3RD LEVEL Vndr Name Reso [Current EDID Freq selection details] Depth YCbCr 1) Mode: Select the EDID to send to the HDMI input. This unit provides the following 8 internal EDIDs: FHD 2Ch 1920×1080p@60Hz (170MHz), 8-bit color, LPCM 2.0 FHD MCh 1920×1080p@60Hz (170MHz), 8-bit color, LPCM 7.1 &...
  • Page 17 2) EDID Details Block: Shows detailed information about the contents of the currently selected EDID. HDCP CONTROL 2ND LEVEL 3RD LEVEL REFER SINK Mode Refer Source Apple Mode [Current HDCP status Out A~E of each output] 1) Mode: Set the HDCP behavior of the unit. ■...
  • Page 18 RS232 CONTROL 2ND LEVEL 3RD LEVEL Baud 115200 Local Baud 2400 Baud 4800 Baud 7200 Baud 9600 Baud 14400 BAUD 19200 Baud 38400 Baud 57600 Baud 115200 1) Mode: Set the operational mode of the RS-232 port on the unit. Selecting “Command”...
  • Page 19 IR CONTROL 2ND LEVEL 3RD LEVEL Enable Receiver 1) Ch A~D: Configure the IR extension behavior of each HDBaseT port. ■ Enable Bidirect:Enables support for bi-directional extension of IR signals over the specified HDBaseT port. ■ Disabled: Disables all IR extension over the specified HDBaseT port.
  • Page 20 REMOTE CONTROL 2ND LEVEL 3RD LEVEL [YELLOW] Button: Plus (+) [BLUE] Button: Enter 1) Link With: Select the display to accept CEC remote control commands from to control the unit or disable the functionality. The selected display’s remote control can be used to navigate this unit’s OSD menu using the remote’s red, green, yellow and blue buttons.
  • Page 21 OSD SETTING 2ND LEVEL 3RD LEVEL Green BLUE Yellow Cyan Magenta Free Run Green BLUE Black Color Default 1) Timeout: Set the display timeout for the OSD Menu in seconds. Selecting “Never” will disable the timeout. 2) Horizontal: Set the horizontal position of the OSD Menu. 3) Vertical: Set the vertical position of the OSD Menu.

  • Page 22: Rs-232 Commands

    SYSTEM SETTING 2ND LEVEL 3RD LEVEL [System details] FW Ver Factory Reset? 1) System Information Block: Shows the units system ID numbers, serial number and current firmware version. 2) Factory Reset: Selecting YES will reset the unit’s settings back to their factory defaults.
  • Page 23 COMMAND Description and Parameters set system reboot Reboot the unit. set description N1 Set the description/name of the unit. N1 = {Name} [64 characters max] get description Show the unit’s current description/name. set keylock N1 Enable or disable the front panel key lock. Available values for N1: [Lock front panel] [Unlock front panel]...
  • Page 24 COMMAND Description and Parameters set in 1 edid N1 Set the EDID to use on the HDMI input. Available values for N1: [Internal FHD 2CH] [Internal FHD Multi-CH] [Internal UHD 2CH] [Internal UHD Multi-CH] [Internal UHD+ 2CH] [Internal UHD+ Multi-CH] [Internal HDR 2CH] [Internal HDR Multi-CH] [User EDID 1]...
  • Page 25 COMMAND Description and Parameters set out N1 convert N2 Set the 4K source conversion mode to use on the specified out- put. Available values for N1: [Output A] [Output B] [Output C] [Output D] [Output E] Available values for N2: [Bypass, no conversion] [Convert color space to YUV 4:2:0] [Convert resolution to 1080p]...
  • Page 26 COMMAND Description and Parameters get out N1 edid information Show English readable details from the EDID provided by the specified output. Available values for N1: [Output A] [Output B] [Output C] [Output D] [Output E] User EDID Commands get user edid number Show the number of User EDIDs supported by the unit.
  • Page 27 COMMAND Description and Parameters set analog audio volume N1 Set the volume level of the analog audio output. N1 = 0~80 [Volume adjustment in 0.5 dB steps] get analog audio volume Show the current volume level of the analog audio output. set analog audio left enhance N1 Set the left channel volume enhancement for the analog audio output.
  • Page 28 COMMAND Description and Parameters Serial Commands set uart N1 N2 Enable or disable the RS-232 pass-through function for the speci- fied HDBaseT output or the local port. Available values for N1: [Output A] [Output B] [Output C] [Output D] [Local RS-232] Available values for N2: [Enable RS-232 pass-through] [Disable RS-232 pass-through]...
  • Page 29 COMMAND Description and Parameters Available values for N2: 2400 [2400 baud] 4800 [4800 baud] 7200 [7200 baud] 9600 [9600 baud] 14400 [14400 baud] 19200 [19200 baud] 38400 [38400 baud] 57600 [57600 baud] 115200 [115200 baud] get uart N1 baud rate Show the current baud rate of the specified RS-232 port.
  • Page 30 COMMAND Description and Parameters set uart N1 parity N2 Set the parity of the specified RS-232 port. Available values for N1: [Output A] [Output B] [Output C] [Output D] [Local RS-232] Available values for N2: [No parity] [Odd parity] [Even parity] get uart N1 parity Show the current parity setting of the specified RS-232 port.
  • Page 31 COMMAND Description and Parameters get ir N1 emitter Show the current enabled state of the IR output on the specified HDBaseT port’s receiver, or on the local unit. Available values for N1: [Output A’s receiver’s IR output] [Output B’s receiver’s IR output] [Output C’s receiver’s IR output] [Output D’s receiver’s IR output] [Local IR output]...
  • Page 32 COMMAND Description and Parameters OSD Commands set osd timeout N1 Set the OSD’s timeout value (in seconds) or disable the timeout. Available values for N1: [No timeout] 1~60 [Timeout in seconds] get osd timeout Show the current OSD timeout value. set osd horizontal N1 Set the horizontal position of the OSD.
  • Page 33 COMMAND Description and Parameters get osd transparency Show the current transparency level of the OSD. set osd contrast N1 Set the contrast mode of the OSD. Available values for N1: [Normal] [Low contrast] get osd contrast Show the current contrast mode of the OSD. set osd panel color N1 Set the color of the background of the OSD.
  • Page 34 COMMAND Description and Parameters set osd freerun color N1 Set the free run mode and the color/pattern used when the input signal is lost and free run is active. Available values for N1: [Free run is disabled] [Red screen] [Green screen] [Blue screen] [Black screen] [Color bars]...

  • Page 35: Connection Diagram

    7. CONNECTION DIAGRAM Media Player 1.5m 60° Powered Speakers IR Input & Output 60° HDMI Serial Control Input Device RS-232 ANALOG HDMI CAT 5e/6/7 OUT IR IN IR OUT RS-232 DC 24V HDMI IN Cat.5e/6/7 Cable IR Input & Output 1.5m 1.5m 1.5m...

  • Page 36: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps HDBaseT Bandwidth 10.2Gbps Input Ports 1×HDMI (Type-A) Output Ports 4×HDBaseT (RJ-45) 1×HDMI (Type-A) 1×Stereo Audio (5-pin Terminal Block) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) Control Ports 1×RS-232 (DE-9) Service Port 1×USB 2.0 (Mini B) IR Frequency 30 –...

  • Page 37: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI HDBaseT 720×400p@70/85    640×480p@60/72/75/85    720×480i@60    720×480p@60    720×576i@50    720×576p@50    800×600p@56/60/72/75/85    848×480p@60 ...
  • Page 38 Input Output Supported Resolutions (Hz) HDMI HDMI HDBaseT 1920×1200p@60RB    2560×1440p@60RB    2560×1600p@60RB    2048×1080p@24/25/30    2048×1080p@50/60    3840×2160p@24/25/30    3840×2160p@50/60 (4:2:0)    3840×2160p@24, HDR10 AVLC ...

  • Page 39: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input/Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition 8.3.2 Analog Audio Analog Output Max Audio Level 4.2Vrms THD+N < −80dB@0dBFS 1kHz (A-wt) >...

  • Page 40: Cable Specifications

    8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6 Cat.6a/7 Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •...

  • Page 41: Hdbaset Features

    8.5 HDBaseT Features HDBaseT Feature Set Transmitter Video & Audio Extension Supported LAN Extension Unsupported Send power to Receiver Supported (PoH) Accept power from Receiver Unsupported IR Extension Supported RS-232 Extension Supported USB 2.0 Extension Unsupported...

  • Page 42: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM ASCII American Standard Code for Information Interchange Audio/Video AVLC Adaptive Visually Lossless Compression Audio/Video Receiver or Recorder Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6a Augmented Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control Command-Line Interface Digital-to-Analog Converter...
  • Page 43 ACRONYM COMPLETE TERM Signal-to-Noise Ratio THD+N Total Harmonic Distortion plus Noise Ultra-High-Definition (10.2Gbps) UHD+ Ultra-High-Definition Plus (18Gbps) UHDTV Ultra-High-Definition Television Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking) Extended Graphics Array...
  • Page 44 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
