- Page 1 CDVI-2DDS/4DDS Dual-link DVI 1:2/1:4 Splitter Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ........... 1 2. Applications ..........1 3. Package Contents ........1 4. System Requirement ........1 5. Features ............1 6. Operation Controls And Functions ..... 2 6.1 Front Panel ..........2 6.2 Rear Panel ..........3 7. -
Page 5: Introduction
1. INTRODUCTION The Dual-Link DVI splitter allows a single DVI-D signal to be split into two/four DVI outputs. Accept both Single-Link and Dual-Link DVI signal with supporting the highest resolution of WQXGA for Dual-Link and WUXGA@RB for Single-Link DVI this wonderful device allows users with a multi-screen viewing. -
Page 6: Operation Controls And Functions

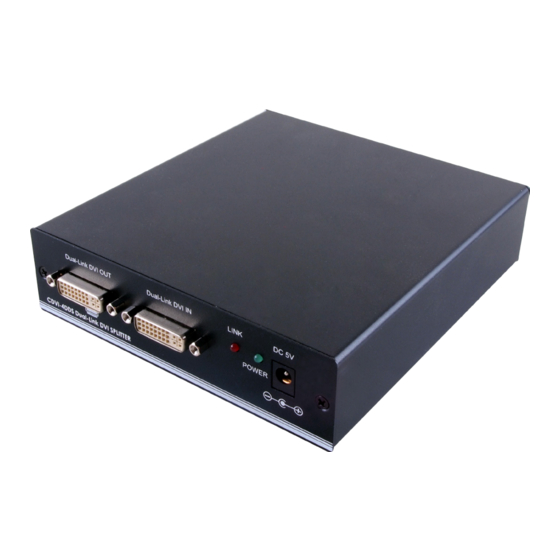

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel Dual-Link DVI OUT Dual-Link DVI IN LINK DC 5V POWER CDVI-4DDS Dual-Link DVI SPLITTER Dual-Link DVI OUT1 This slot is to connect with DVI output display with DVI cable for synchronize outputs up to 2/4. Dual-Link DVI IN This slot is to connect with the input source such as PC/Graphic card with Dual-Link DVI cable. -
Page 7: Rear Panel
6.2 Rear Panel Dual-Link DVI OUT Dual-Link DVI OUT Dual-Link DVI OUT Dual-Link DVI OUT2~4 This slot is to connect with DVI output display with DVI cable for synchronize output with OUT 1. Note: The device will detect OUT 1 as the primary EDID information when both outputs are connected with active monitor. -
Page 8: Specifications
8. SPECIFICATIONS Video Bandwidth 2 x 165MHz Input Port 1 x Dual-Link DVI Output Ports 2 or 4 x Dual-Link DVI I/O Support Resolution VGA ~ WQXGA@60 / Dual-Link VGA~ WUXGA@60RB / Single-Link ESD Protection Human body model: ± 8kV(Air-gap discharge) ±... -
Page 9: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Visual Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
