Notes
This page shows possible connections to a TPM-S2 module
Connect the V3 Paging Server's Page Port output terminal pins to the INPUT
on the TPM-S2 module.
2 conductor, shielded speaker wire is recommended.

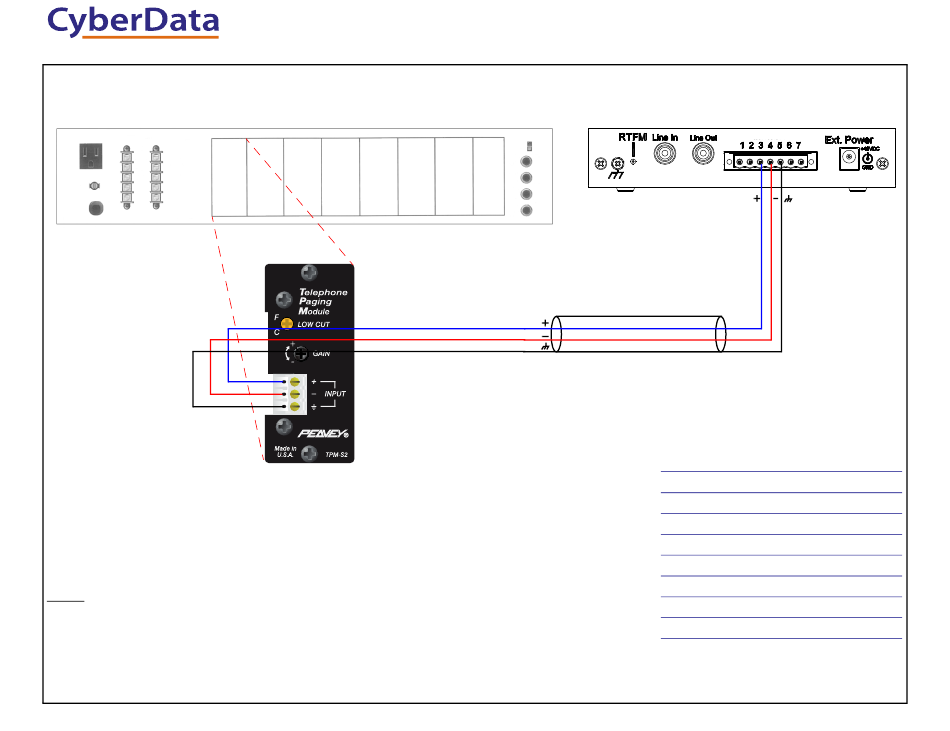

Peavey MMA 8150T Amplifier to V3 Paging Server Connections

V3 Paging Server Connections

PGM IN
Balanced
Hi
Lo
Shield/Drain Wire Keep as short as possible
930990A
+ - +
-
Hi
Lo
Shield/Drain Wire
s
V3 Paging Server Connections

Pin Description

1

Fault Sense Input (Common).

2

Fault Sense Input (Sense).

3

Positive 600-Ohm Audio Output

4

Negative 600-Ohm Audio Output

5

Audio Ground Reference.

b
6

Relay Contact - Common

7

Relay Contact - Normally Open

a.The 600-Ohm audio output of the page port is
also suited for interfaces with lower input
impedances.
b.1 Amp at 30 VDC for continuous loads.
a
a
b
