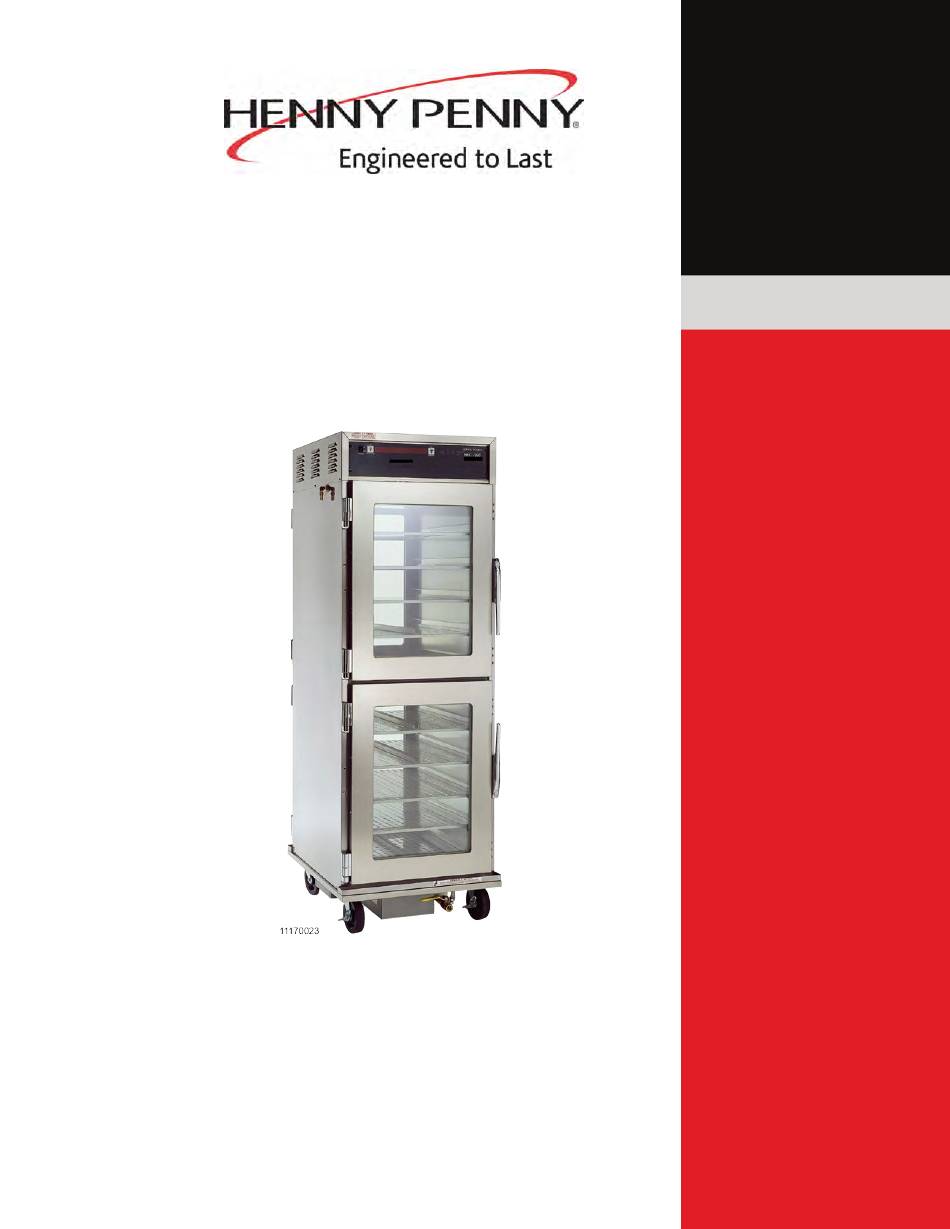

- Page 1 OPERATOR'S MANUAL H H u u m m i i d d i i f f i i e e d d H H o o l l d d i i n n g g C C a a b b i i n n e e t t s s M M o o d d e e l l H H H H C C - - 9 9 8 8 X X HHC-980 HHC-983...
- Page 3 Table of Contents Safety......................... iii Chapter 1 Introduction.....................1 1.1 Humidified Holding Cabinet..................1 1.2 Features........................1 1.3 Proper Care......................1 1.4 Assistance......................2 Chapter 2 Installation ......................3 2.1 Introduction ......................3 2.2 Unpacking ......................3 2.3 Selecting The Fryer Location ..................3 2.4 Electrical Requirements..................4 2.5 Water Requirements ....................4 2.6 Water Supply Connection ..................5 2.7 Cabinet Dimensions &...
- Page 5 S S a a f f e e t t y y The Henny Penny open fryer has many safety features incorporated. However, the only way to ensure a safe operation is to fully understand the proper installation, operation, and maintenance procedures. The instructions in this manual have been prepared to aid you in learning the proper procedures.
- Page 7 1 1 . . 3 3 P P r r o o p p e e r r C C a a r r e e As in any unit of food service equipment, the Henny Penny humidified holding cabinet does require care and maintenance.
- Page 8 1 1 . . 4 4 A A s s s s i i s s t t a a n n c c e e Should you require outside assistance, call your local independent distributor in your area, call Henny Penny at 1-800-417-8405 toll free or 1-937-456-8405, or go to Henny Penny online at www.hennypenny.com.
- Page 9 2 2 . . 1 1 I I n n t t r r o o d d u u c c t t i i o o n n This section provides the installation instructions for the Henny Penny models HHC- 980 and HHC-983.
- Page 10 2 2 . . 4 4 E E l l e e c c t t r r i i c c a a l l R R e e q q u u i i r r e e m m e e n n t t s s •...
- Page 11 Water Property Particle Level 7–8 Silica < 15 ppm Hardness < 3 grains Alkalinity < 20 ppm Dissolved Solids < 60 ppm Un-dissolved Solids < 5 microns 2 2 . . 6 6 W W a a t t e e r r S S u u p p p p l l y y C C o o n n n n e e c c t t i i o o n n The automatic water-fill system requires a 1/4 inch, 100 psi maximum, water connection.
- Page 12 Figure 2-2 Female Quick-Disconnect Attach female quick-disconnect to the male quick-disconnect on the elbow. 4 4 ) ) NOTE: This unit as manufactured requires the installation of an appropriate back- siphoning device (as per National Plumbing Code ASA-A40:8-1955) to be connected to the water inlet line.
- Page 13 2 2 . . 7 7 C C a a b b i i n n e e t t D D i i m m e e n n s s i i o o n n s s & & W W e e i i g g h h t t s s Figure 2-3 HHC-980 Dimensions...
- Page 14 Figure 2-4 HHC-983 Dimensions T T a a b b l l e e 2 2 - - 2 2 H H H H C C - - 9 9 8 8 X X D D i i m m e e n n s s i i o o n n & & W W e e i i g g h h t t Model Height Width...
- Page 15 Figure 2-5 Mounting Plates Remove doors from HHC-983 to allow easier lifting. 2 2 ) ) Lift HHC-983 onto posts of the HHS, making sure the locking casters are 3 3 ) ) towards the front of the unit. Align the holes in the mounting plates with the holes in the HHC-983. NOTE: 4 4 ) ) The posts of the HHS can be moved, with some effort, to help align the holes in the mounting plates with the holes in the HHC-983.
- Page 16 Figure 2-7 Mounted HHC-983...
- Page 17 C C h h a a p p t t e e r r 3 3 O O p p e e r r a a t t i i o o n n 3 3 . . 1 1 I I n n t t r r o o d d u u c c t t i i o o n n This section provides operating procedures for the humidified holding cabinet.
- Page 18 Item Description Function Humidity Button Press the humidity button to set the relative humidity in- side the cabinet, and to choose between the proofing and holding modes, when the unit is turned on. Info Button Press the info button to display the current cabinet humid- ity and temperature as well as the time and date.
- Page 19 NOTE: The minimum holding temperature for potentially hazardous product is 150°F (66°C). Also, the cabinet product loading capacity for the full size units is 375 lbs (170 kg), and the loading capacity for the half-sized unit is 125 lbs (57 kg). Place product into cabinet.
- Page 20 F F a a i i l l u u r r e e t t o o d d i i s s c c a a r r d d w w a a r r p p e e d d a a n n d d / / o o r r b b e e n n t t p p a a n n s s m m a a y y r r e e s s u u l l t t i i n n m m e e t t a a l l s s h h a a v v i i n n g g s s / / d d u u s s t t c c o o n n t t a a m m i i n n a a t t i i o o n n f f o o o o d d p p r r o o d d u u c c t t s s .
- Page 21 Turn all controls off and disconnect electrical supply. 1 1 ) ) Put on personal protective equipment. 2 2 ) ) Remove pans and racks from cabinet. 3 3 ) ) Disconnect water supply at side of cabinet. Open drain valve and empty water 4 4 ) ) pan into shallow pan or floor drain.
- Page 22 Wash the concentration ring in a dishwasher or sink. 6 6 ) ) Fill water pan with warm clean water. 7 7 ) ) Add 1/3 cup of de-limer to water pan. 8 8 ) ) Wait one hour for de-limer to break up minerals. 9 9 ) ) Using a soft brush, scrub sides and bottom of water pan.
- Page 23 Wash the concentration ring in a dishwasher or sink. 6 6 ) ) Ensure water pan is empty and drain plug is in place. 7 7 ) ) Add 2 cups of de-limer to water pan. 8 8 ) ) Wait 10 minutes for de-limer to break up minerals.
- Page 25 C C h h a a p p t t e e r r 4 4 P P r r o o g g r r a a m m m m i i n n g g 4 4 . . 1 1 I I n n t t r r o o d d u u c c t t i i o o n n This chapter explains the following program functions: •...
- Page 26 Press the program button and “CS-5, SET, YEAR” shows in the display with the 8 8 ) ) year flashing. Press the up or down button to change the year. Press and hold the program button to exit programming. 9 9 ) ) 4 4 .
- Page 27 T T a a b b l l e e 4 4 - - 2 2 S S p p e e c c i i a a l l P P r r o o g g r r a a m m m m i i n n g g P P r r o o c c e e d d u u r r e e s s Menu Step Description SP-1 Fahrenheit/...
- Page 28 Menu Step Description SP-7 System Ini- 1 1 . . “DO SYSTEM INIT” shows in the display. tialization (Fac- tory Settings) 2 2 . . Press and hold the down button until the display counts down from 3, and the display flashes “-INIT-”, then “INIT*DONE*”. This completes the initialization, and sets the control to factory settings.
- Page 29 NOTE: For more information on the other settings of Special Program Mode, call your local Henny Penny Distributor or the Corporate Headquarters at 1-800-417-8405, or 937-456-8405.
- Page 31 C C h h a a p p t t e e r r 5 5 T T r r o o u u b b l l e e s s h h o o o o t t i i n n g g 5 5 .
- Page 32 Problem Cause Correction Unit not Doors left open. Keep doors closed except to load and serve product. reaching Door gasket torn Replace bad door gaskets. set temper- or worn. ature. 5 5 . . 3 3 E E r r r r o o r r C C o o d d e e The display shows the following error codes and warning when a fault is detected, along with an alarm sound.
- Page 33 Display Cause Panel Board Correction HEATER replaced (the water heater probe is built into the water SENSOR heater); the controls should return to normal; if error code FAILED persists, have PC board replaced. OPEN” “E-12B” “WATER HEATER SENSOR FAILED CLOSED” “E-17”...
- Page 34 Display Cause Panel Board Correction “E-54B” “CPU TEMP SENSOR SHORT- ED” “PLEASE Water pan needs Follow procedures in section 3.5.2 Weekly Deliming , page DE-LIME cleaned. 14; this warning will not shut down the heat or humidity; if WATER error code persists, have PC board replaced. PAN”...
- Page 37 blank page...
- Page 38 H H e e n n n n y y P P e e n n n n y y C C o o r r p p o o r r a a t t i i o o n n P P .
