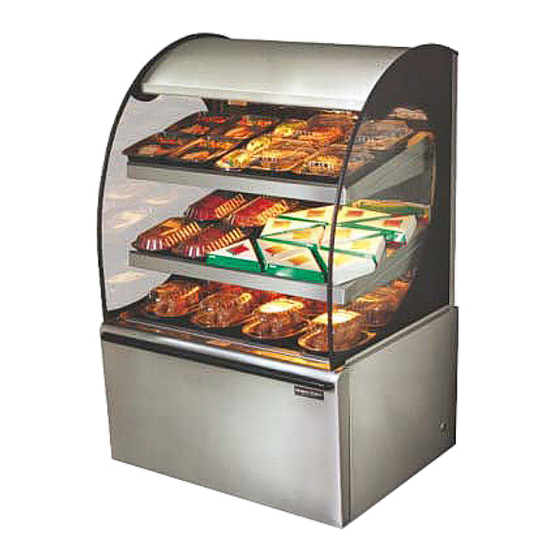

Henny Penny HEC-103 Operator's Manual

Heated express cabinet
Hide thumbs Also See for HEC-103:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S
M A N U A L
HEATED EXPRESS CABINET
MODEL
HEC-103
HEC-104
HEC-123
HEC-124
R E G I S T E R W A R R A N T Y O N L I N E AT W W W. H E N N Y P E N N Y. C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEC-103 and is the answer not in the manual?

Questions and answers

Related Manuals for Henny Penny HEC-103

Summary of Contents for Henny Penny HEC-103

  • Page 1 OPERATOR’S M A N U A L HEATED EXPRESS CABINET MODEL HEC-103 HEC-104 HEC-123 HEC-124 R E G I S T E R W A R R A N T Y O N L I N E AT W W W. H E N N Y P E N N Y. C O M...

  • Page 3: Table Of Contents

    Model HEC-103/104/123/124 TABLE OF CONTENTS Section Page Section 1. INTRODUCTION 1-1. Heated Express Cabinet ................... 1-1 1-2. Features ......................1-1 1-3. Proper Care ..................... 1-2 1-4. Assistance ......................1-2 1-5. Safety ....................... 1-2 Section 2. INSTALLATION 2-1. Introduction ...................... 2-1 2-2.

  • Page 4: Heated Express Cabinet

    Model HEC-103/104/123/124 SECTION 1. INTRODUCTION 1-1. HEATED EXPRESS The Henny Penny heated express cabinet is a basic unit of food CABINET processing equipment designed to hold hot packaged foods at proper temperature in commercial food operations. This cabinet maintains the quality of the hot foods while keeping a stable temperature.

  • Page 5: Proper Care

    Model HEC-103/104/123/124 As in any unit of food service equipment, the Henny Penny heated 1-3. PROPER CARE express cabinet does require care and maintenance. Requirements for the maintenance and cleaning are contained in this manual and must become a regular part of the operation of the unit at all times.

  • Page 6: Introduction

    Any shipping damages should be noted in the presence of the delivery agent and signed prior to his or her departure. To remove the Henny Penny cabinet from the carton, you should: 1. Carefully cut banding straps. 2. Open flaps of carton and remove packing.
  • Page 7 Model HEC-103/104/123/124 2-2. UNPACKING 6A. Unpack and install shelves. a. Hook the shelf brackets in the slots in the back, interior of unit. (Continued) See next pages (Figure 2-5 & 2-6) for proper slot arrangement for either 2, 3 or 4 shelf units.

  • Page 8: Hec 3 & 4 Shelf Installation Instructions

    Model HEC-103/104/123/124 2-3. HEC 3 & 4 SHELF INSTALL- The drawing below is the slot arrangement (right and left) for ATION INSTRUCTIONS the brackets of the shelves of the HEC. The lines point to the slot that the top prong of the bracket fits into.

  • Page 9: Hec 2 Shelf Installation Instructions

    Model HEC-103/104/123/124 2-4. HEC 2 SHELF The drawing below is the slot arrangement (right and left) for the INSTALLATION brackets of the shelves of the HEC. The lines point to the slot that INSTRUCTIONS the top prong of the bracket fits into.

  • Page 10: Installing Or Replacing Fluorescent Lamps

    The unit should be placed in an area where the unit can be loaded and unloaded easily. For proper operation, the cabinet must be level. If the Henny Penny heated express cabinet does not have legs, level the unit and run a bead of silicone rubber (silicone or equivalent sealant must be a NSF listed material) around the perimeter of the unit, sealing it to the floor.

  • Page 11: Cabinet Dimensions

    Model HEC-103/104/123/124 2-7. CABINET DIMENSIONS Width Height Depth HEC-103 37 in. 71 in. 31 in. (940 mm) (1803 mm) (787 mm) HEC-104 49 in. 71 in. 31 in. (1245 mm) (1803 mm) (787 mm) (77 in (1956 mm) w/legs) HEC-123 37 in.
  • Page 12 Model HEC-103/104/123/124 2-8. ELECTRICAL CONNECTION (Continued) The tables below shows electrical ratings for the HEC-103,104, 123 & 124. Model Number Volts Watts Amps Model Number Volts Watts Amps HEC-103 (3 shelf) 1 2380 11.4 HEC-104 (3 shelf) 1 3366 16.2...

  • Page 13: Introduction

    Model HEC-103/104/123/124 SECTION 3. OPERATION 3-1. INTRODUCTION This section provides explanations of all controls, along with operating procedures and daily maintenance. Read the Introduction, Installation and Operation Sections before operating the unit. To access the controls, the bottom, front panel must be removed by pulling out on one corner of the panel and unsnapping it from the clips.
  • Page 14 Model HEC-103/104/123/124 3-2. OPERATING CONTROLS (Continued) HEC-103 & HEC-104 HEC-123 & HEC-124...

  • Page 15: Start-Up

    Model HEC-103/104/123/124 3-3. START UP Before using the heated express cabinet, thoroughly clean the unit as described in the Cleaning Procedures Section of this manual. 1. Turn the power switch to the ON position. 2. If the heat values for the shelves have not been set, pull out on one corner of the bottom front panel, and unsnap it from the unit, to access the controls.

  • Page 16: Operation With Product

    Model HEC-103/104/123/124 3-4. OPERATION WITH 1. Place the hot, prepackaged product on each of the shelves. PRODUCT To assure quality product, stacking prepackaged product is not recommended. 2. Serve the product first that has been in the cabinet the longest.

  • Page 17: Special Program Mode

    Model HEC-103/104/123/124 3-6. SPECIAL PROGRAM This mode includes the lock/unlock feature, control initialization, and MODE testing of the outputs and displays. 1. Turn power switch off. 2. Press and hold both while turning on the power switch. 3. “SP” shows in display, followed by “P=L” or P=U”.

  • Page 18: Troubleshooting

    Model HEC-103/104/123/124 SECTION 4. TROUBLESHOOTING 4-1. TROUBLESHOOTING GUIDE Problem Cause Correction Product not • Heat value of shelf not high enough • Set higher heat value in controls holding temperature • Product not hot when placed in • Place prepackaged hot food in...

  • Page 19: Glossary

    Model HEC-103/104/123/124 G L O S S A R Y HENNY PENNY HOLDING CABINETS air temperature probe a round device located inside the cabinet that measures the inside air temperature and sends that information to the control panel air ducts channels attached to the sides, of the inside of the unit, that directs the hot air towards the bottom of the unit;...
  • Page 20 Model HEC-103/104/123/124 pressure sprayer a device that shoots a stream of water under pressure; this device should NOT be used to clean a holding cabinet probe clip a metal holder that attaches to the outside of the control panel to hold the food probe when not in use;...
  • Page 21 Henny Penny Corporation P.O.Box 60 Eaton,OH 45320 1-937-456-8400 1-937-456-8402 Fax Toll free in USA 1-800-417-8417 1-800-417-8434 Fax *FM05-028-H* www.hennypenny.com Henny Penny Corp., Eaton, Ohio 45320, Revised 6-25-13...
