8.1 Waypoints

A waypoint is a position marked on the screen to indicate a site
or a place to navigate to.
As well as acting as position markers, waypoints are also the
building blocks used to create routes.
Common waypoint functions are accessed using the waypoints
menu. This can be shown at any time by pressing the WPT button.

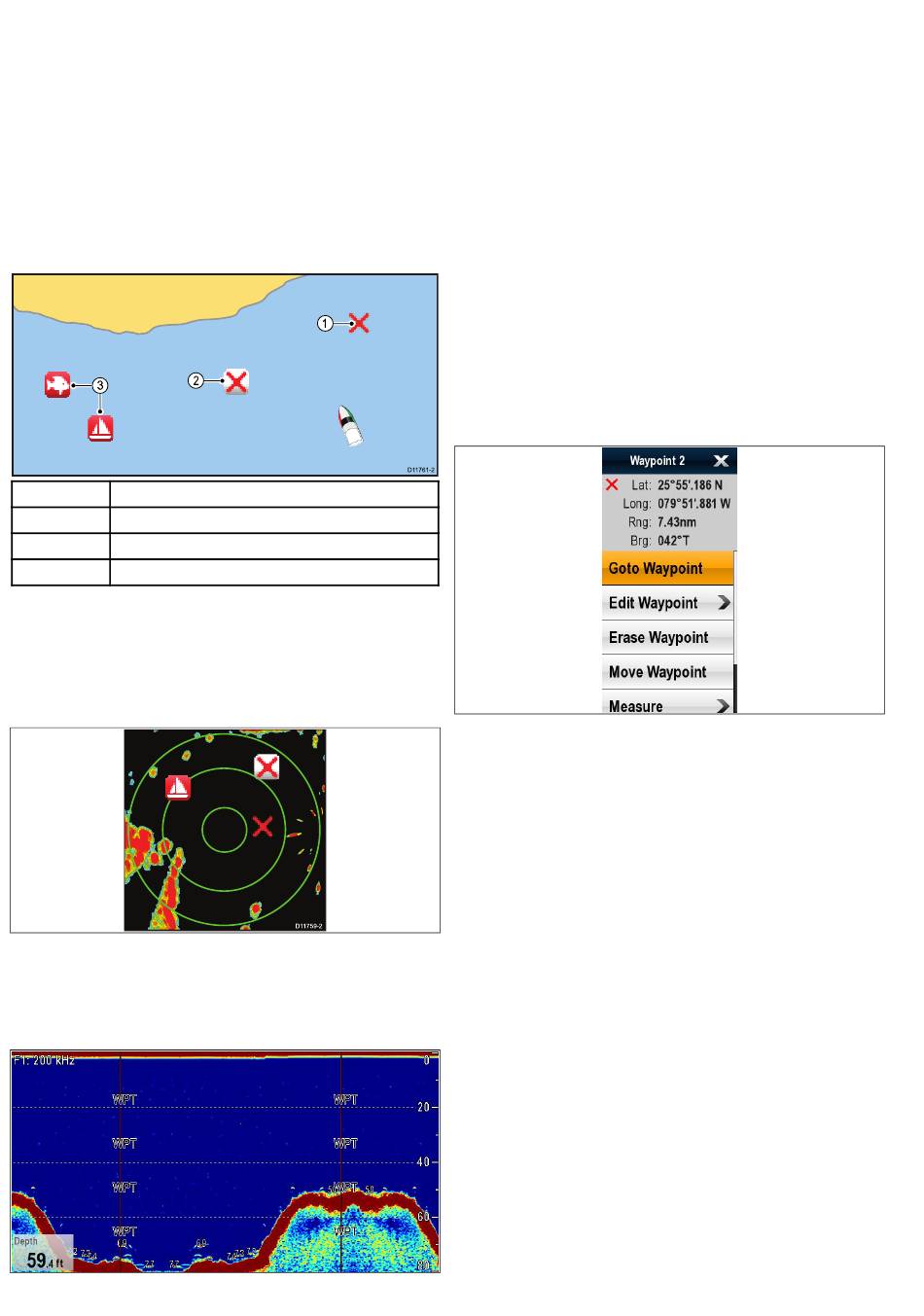

Waypoint display examples
Waypoints in the chart application
In the chart application both active and inactive waypoints are
shown. The active waypoint (i.e. the one you are heading towards)
has the box and symbol colors reversed.
3
Item Description
1 Inactive waypoint
2 Active waypoint
3 Alternative waypoint symbols
By default, all waypoints are indicated on screen by a waypoint
symbol (x). You can assign different symbols if required, or choose
which waypoints are shown.
Waypoints in the radar application
In the radar application both active and inactive waypoints are
shown. The active waypoint (i.e. the one you are heading towards)
has the box and symbol colors reversed.
By default, all waypoints are indicated on screen by a waypoint
symbol (x). You can assign different symbols if required, or choose
which waypoints are shown.
Waypoints in the fishfinder application
Waypoints in the fishfinder application are represented by a vertical
line labelled WPT.
84
1
2
D11759-2
Showing and hiding waypoint groups / symbols
From the chart or radar application:
1. Press the WPT button.
2. Select Display Waypoints.
3. Select Change to switch between Groups and Symbols.
A list of Symbols or Groups is displayed.
4. Select the Group or Symbol you wish to show/hide from the list.
Selecting on the Symbol/Group will switch between Show and
Hide.
5. Repeat Step 4 for each waypoint group or symbol you want to
show or hide.
The list of waypoints and symbols can also be accessed from the
Chart and Radar applications menu:
• Chart application: Menu > My Data > Display My Data > Select
WPTs To Display.
• Radar application: Menu > Presentation > Select WPTs To
Display.
Waypoint context menu
Placing the cursor over a waypoint in the chart or radar applications
displays a context menu showing the waypoint's positional data
and menu items.
D11761-2
The waypoint context menu can be accessed by:
• Highlighting the waypoint using the Joystick and pressing the
Ok button, or
• Selecting a waypoint using touch — Hybridtouch multifunction
displays only.
The context menu provides the following positional data for the
waypoint in relation to your vessel:
• Latitude
• Longitude
• Range
• Bearing
For inactive waypoints the following menu items are available:
• Goto Waypoint
• Edit Waypoint
• Erase Waypoint
• Move Waypoint
• Measure
• Build Route
For active waypoints the following menu items are available:
• Stop Goto
• Restart XTE
• Measure
• Build Route
•
