4.13 Video in-out connection

A video device can be connected to e95 / e97 / e125 / e127 variant
multifunction display using the video in/out connector.
Video In
Examples of video input sources that you can connect to the display
include:
• Video camera.
• Thermal camera.
• DVD player.
• Portable digital video player.

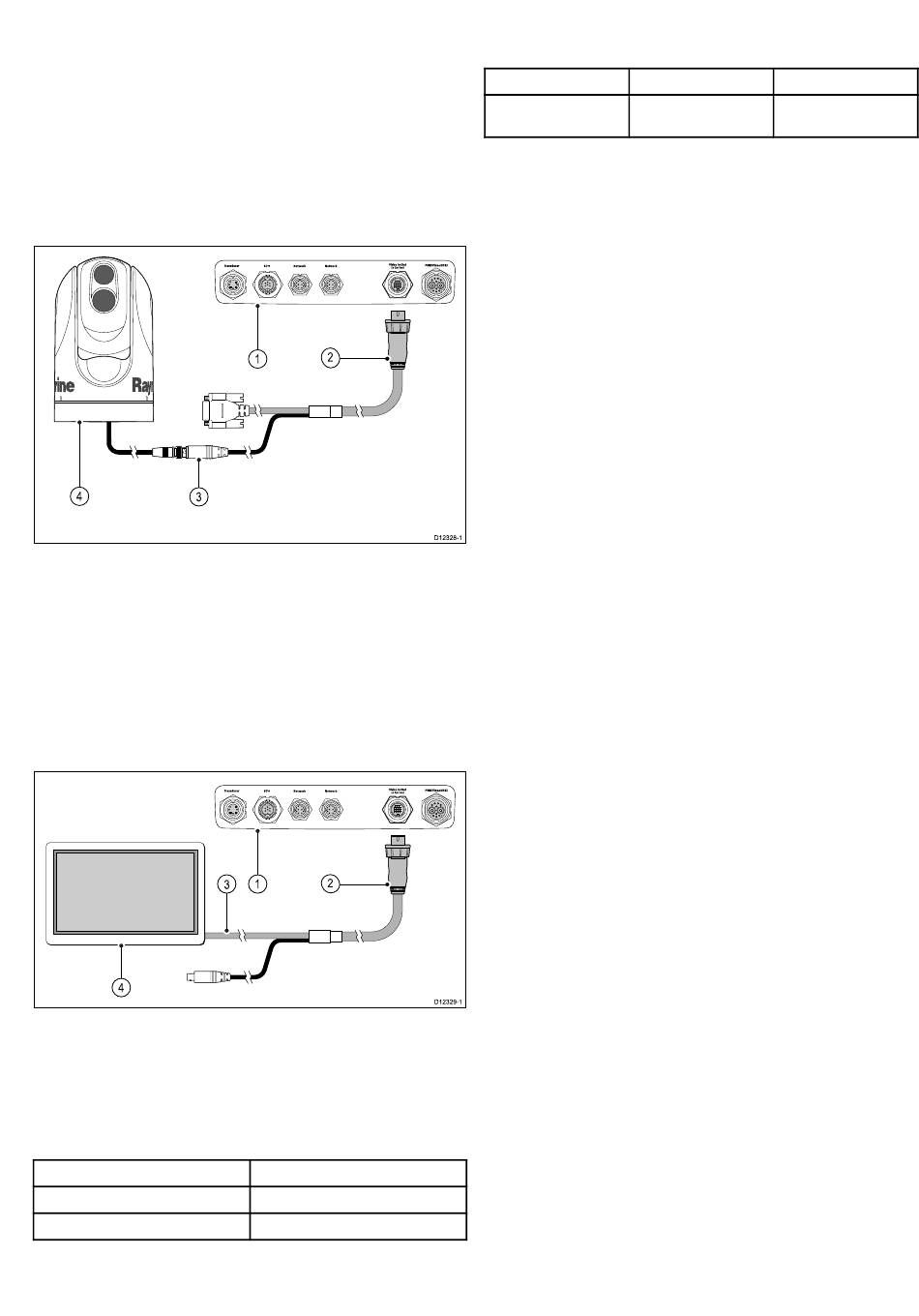

4 3
1. Rear connector panel of multifunction display.
2. Video accessory cable.
3. BNC video connector (input 2).
4. Thermal camera.
Video out
Examples of video output devices that you can connect to the
display include:
• HDTV with VGA input.
• VGA monitor.
4
1. Rear connector panel of multifunction display.
2. Video accessory cable.
3. VGA cable to external display.
4. External display.
Video specification
Signal type
Format
Connector type
Cables and connections
2
1
1 2
3
Composite
PAL or NTSC
BNC (female)
Video cables
The following video cable is required for the video in / out connector
on the e95 / e97 / e125 / e127 variant multifunction displays.
Part number
R70003
D12328-1
D12329-1
Description Notes
e-series accessory video
cable
47
