3.7 Typical systems

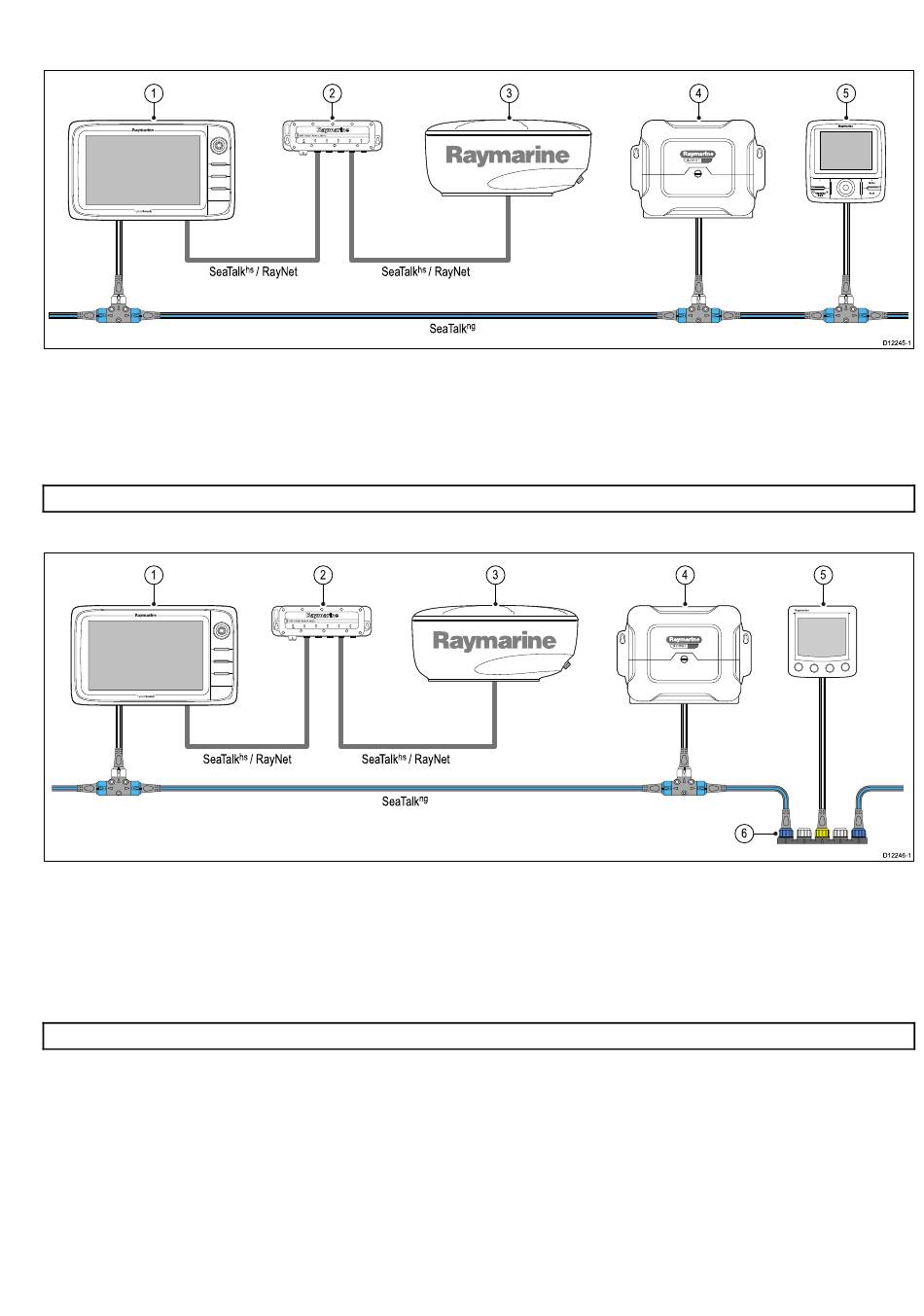

Example: Basic system
1
SeaT alk
1. Multifunction display.
2. Raymarine network switch.
3. Digital radome scanner.
4. SPX course computer.
5. Pilot controller.
Note: A network switch is only required if more than one device is connected using SeaTalk
Example: Basic system with SeaTalk equipment
1
SeaTalk
1. Multifunction display.
2. Raymarine network switch.
3. Digital radome scanner.
4. SPX course computer.
5. SeaTalk pilot controller.
6. SeaTalk to SeaTalk ng converter.
Note: A network switch is only required if more than one device is connected using SeaTalk
Planning the installation
2
hs
/ RayNet SeaT alk
2
hs hs
/ RayNet SeaT alk / RayNet
SeaT alk
3
hs
/ RayNet
ng
SeaT alk
3
ng
4
SMART
hs / RayNet.
4
SMART
6
hs / RayNet.
5
D12245-1
5
D12246-1
