6.13 Applications

Chart application — provides a 2D or 3D graphical
view of your charts to help you navigate. Waypoint,
route, and track functions enable you to navigate to a
specific location, build and navigate routes, or record
where you've been. Chart cards provide higher levels
of detail and 3D views.
Fishfinder application — with a transducer and
a sonar variant multifunction display or compatible
Digital Sounder Module (DSM), you can use the
fishfinder application to help you accurately distinguish
between different sizes of fish, bottom structure, and
underwater obstacles. You can also view sea depth
and temperature data and mark points of interest such
as fishing spots or wrecks.
Radar application — with a suitable radar scanner,
you can use the radar application to track targets
and measure distances and bearings. A number of
automatic gain presets and color modes are provided
to help you get the best performance from your radar
scanner.
Data application — view system and instrument data
on your multifunction display, for a range of compatible
instruments. Use the joystick or touchscreen to scroll
through the available data pages.
Weather application — (North America only). With a
suitable weather receiver connected to your system,
the weather application overlays historical, live, and
forecasted weather graphics on a world map.
Thermal camera application — view and control a
compatible thermal camera using your multifunction
display.
Video application — view a video or camera source
on your multifunction display.
68

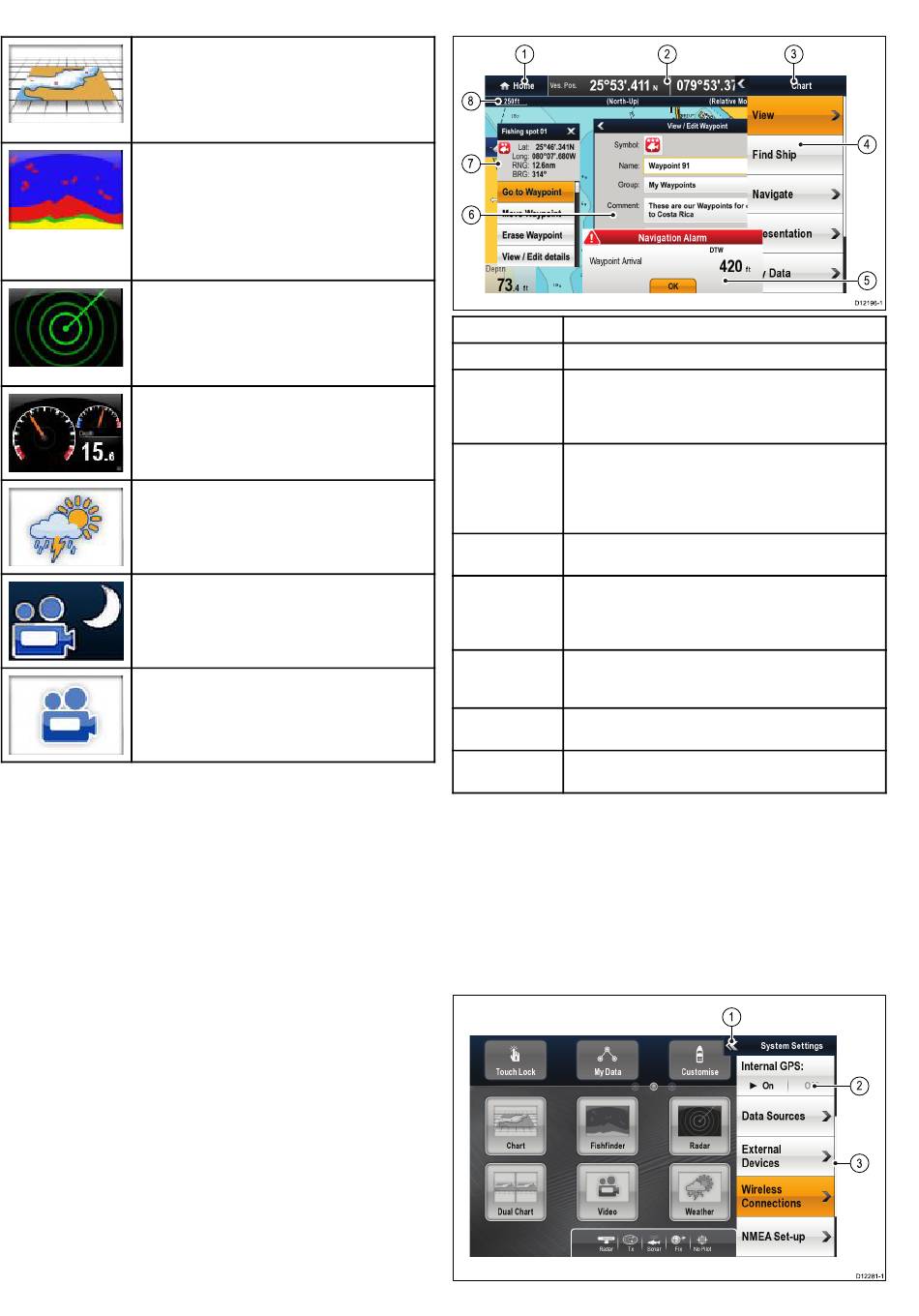

6.14 Screen overview

1
8
7
6
Screen item Description
1 Home — select this icon to access the homescreen.
2 Databar — provides information about your vessel and
its environment. The position and type of information in
the databar can be customized from the Homescreen >
Customize > Databar Set-up menu, if required.
3 Menu — select this icon to access the menu. The menu
options are specific to the application that you are currently
using. Use the touchscreen (HybridTouch displays only)
or use the Rotary control to select menu items and scroll
long menus.
4 Pop-up menu — menu options are displayed when you
select the Menu icon.
5 Pop-up messages — alert you to a situation (such as an
alarm), or unavailable function. Pop-up messages may
require a response from you — for example, select OK to
silence alarms.
6 Dialogs — enable data to be selected, edited or entered.
Use in many common functions — for example, editing
a waypoint..
7
Context menu — provides information and options
specific to each application.
8 Status bar — provides information specific to each
application. This information cannot be edited or moved.
Using pop-up menus
Pop-up menus enable you configure settings and preferences.
Menus are used in the:
• Homescreen — to configure your multifunction display and
externally-connected equipment.
• Applications — to configure the settings for that particular
application.
The following diagram shows the main features of a pop-up menu:
e7 / e7D / e95 / e97 / e125 / e127 / c95 / c97 / c125 / c127
2 3
1
D12196-1
2
3
D12281-1
