- Page 1 PORTI-PC40 MODEL (2inch Desktop Printer) Rev. 3.0 All specifications are subjected to change without notice http://www.woosim.com...
- Page 2 Copyright ⓒ2017 by Woosim System Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. and may not be reproduced in whole or in part without the prior written permission of Woosim System Inc.

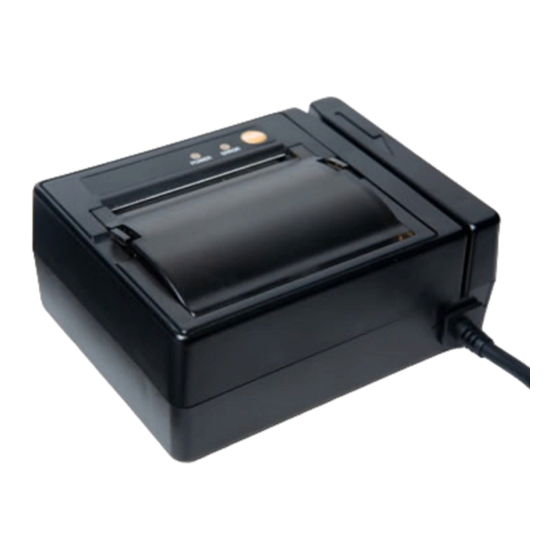

- Page 3 Porti-PC40 Rev. 3.0 Introduction The Porti-PC40 is the ideal solution for taxi receipt printer, receipt printer, Medical analyzer, industrial instrument, recorder, geological analyzer, underground analyzer, chemical analyzer, metallic analyzer, etc. The general features of Porti-PC40 printer are as follows: Pocket size(105 x 80.4 x 45.7mm)
-
Page 4: Operating Precautions
Porti-PC40 Rev. 3.0 Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ●... - Page 5 Porti-PC40 Rev. 3.0 Federal Communications Commission Radio Frequency Interference Statement FCC ID : QDDPORTI-PC40 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 6: Table Of Contents
Porti-PC40 Rev. 3.0 CONTENTS 1. Outline ................................. 7 1.1. Model classifications ..........................7 1.2. Product Part Number System ........................7 1.3. Specifications .............................. 8 2. Setting up the printer ............................9 2.1. Printer & Accessories ..........................9 2.2. Printer Features ............................10 2.2.1. -
Page 7: Outline
Porti-PC40 Rev. 3.0 PORTI–PC40 Model name Interface None : UART Power None : DC 12~24V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported. -
Page 8: Specifications
Porti-PC40 Rev. 3.0 Item Specification Printing method Direct thermal line printing - Font A : 32cpl / Font B : 42cpl / Font C : 48cpl Characters per line - KOR, CHN, JPN : 16cpl - Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16... -
Page 9: Setting Up The Printer
Porti-PC40 Rev. 3.0 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Thermal roll paper PORTI-PC40 http://www.woosim.com... -
Page 10: Printer Features
Porti-PC40 Rev. 3.0 http://www.woosim.com... -
Page 11: Dimensions
Porti-PC40 Rev. 3.0 http://www.woosim.com... -
Page 12: Replacing Paper Roll
Porti-PC40 Rev. 3.0 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost. -
Page 13: Interface
Porti-PC40 Rev. 3.0 The Porti-PC40 printer has a UART(RS-232C or TTL) interface is connected by means of a 9 pin D- sub(Female Type) connector. In the following table, the signals present on the connector are listed: Pin No. Signal Name... -
Page 14: Using The Printer
3. Printer will print out the current status. (F/W version and set contents) 4. And then pattern of characters will be printed out. 5. Self-test will be finished automatically and turned to the standby status. ※ In case printer does not work properly, please contact Woosim customer service center. http://www.woosim.com... -
Page 15: Consumable Parts
Porti-PC40 Rev. 3.0 Type : Thermal Paper Paper width : 57mm Paper thickness : 60±5 ㎛ Outer diameter : Ø40mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has near end mark printing on its near end is recommended. -
Page 16: Revision History
Porti-PC40 Rev. 3.0 Date Version Comments * Change page layout (B5→A4) Jun. 09. 2017 * Delete address http://www.woosim.com...
