MODEL
All specifications are subjected to change without notice

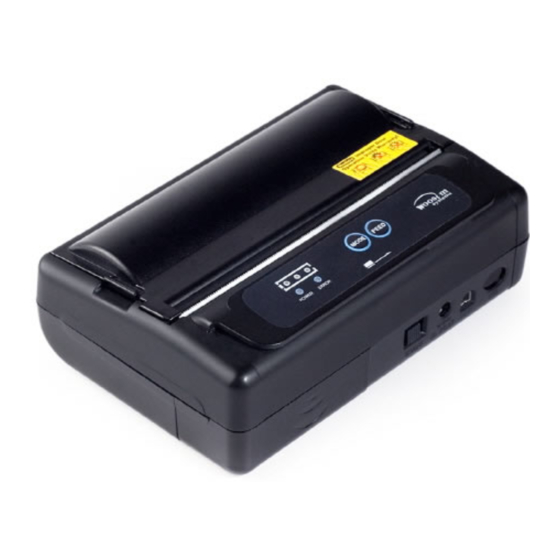

PORTI-WC40
(4inch Mobile Printer)
Rev. 2.0
WOOSIM SYSTEMS Inc.
Add : #501, Daerung Technotown 3th,
448, Gasan-Dong, GeumChun-Ku,
Seoul, Korea
Tel : +82-2-2107-3700
Fax : +82-2-2107-3707
http://www.woosim.com
URL:
http://www.woosim.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PORTI-WC40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WOOSIM PORTI-WC40

Summary of Contents for WOOSIM PORTI-WC40

  • Page 1 PORTI-WC40 MODEL (4inch Mobile Printer) Rev. 2.0 WOOSIM SYSTEMS Inc. Add : #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 http://www.woosim.com URL: All specifications are subjected to change without notice http://www.woosim.com...
  • Page 2 Copyright ⓒ2009 by Woosim System Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. and may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.
  • Page 3 Porti-WC40 Rev. 2.0 ¦ Introduction The PORTI-WC40 is suitable designed for use with a growing variety of mobile devices Bluetooth/Serial interfaces make the PORTI-WC40 the perfect comrade for applications such as point of transaction warehousing, distribution, point of sales, hospitality, gaming and healthcare.
  • Page 4 Porti-WC40 Rev. 2.0 ¦ Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ● Do not install the printer in direct sunlight or such areas.
  • Page 5 Porti-WC40 Rev. 2.0 ¦ Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Table Of Contents

    Porti-WC40 Rev. 2.0 CONTENTS 1. Outline ............................7 1.1. Model classifications ......................7 1.2. Product Part Number System ....................7 1.3. Specifications ........................8 2. Setting up the printer ........................10 2.1. Printer & Accessories ......................10 2.2. Printer Features ........................11 2.2.1. Part name ......................... 11 2.2.2.

  • Page 7: Outline

    Porti-WC40 Rev. 2.0 PORTI-WC40 Model Name Interface None : Bluetooth/UART Power None : DC 8.4V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Serial/Bluetooth Part No. ⇒ S40/A1 Example) 1. Porti-S40 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported.

  • Page 8: Specifications

    Porti-WC40 Rev. 2.0 Item Specification Direct thermal line printing Printing method 92cpl (MAX) Characters per line Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots] Character size Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Optional Characters Greek, Japanese, Persian, Latin9 and Others upon request.
  • Page 9 Porti-WC40 Rev. 2.0 Item Specification -10°C ~ 50°C (operating) Temperature -10°C ~ 70°C (storage) Environment Conditions 30% - 80% (operating) Humidity 10% - 90% (storage) Mechanical 37,000,000 lines MCBF (Mean Cycle Between failure) Head Approximately 50 Km < Table 1 >...

  • Page 10: Setting Up The Printer

    Porti-WC40 Rev. 2.0 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Battery pack Thermal roll paper PORTI-SWC40 Battery charger adaptor ▼ OPTIONAL Battery holder Communication cable...

  • Page 11: Printer Features

    Porti-WC40 Rev. 2.0 http://www.woosim.com...

  • Page 12: Dimensions

    Porti-WC40 Rev. 2.0 http://www.woosim.com...

  • Page 13: Replacing Paper Roll

    Porti-WC40 Rev. 2.0 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost.

  • Page 14: Power Supply

    Porti-WC40 Rev. 2.0 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A Avoid using power supply which its power capacity of power current is extremely high. ● NOTE : Before installing or removing the battery pack, ensure the printer is OFF.

  • Page 15: Recharging The Battery Pack

    Porti-WC40 Rev. 2.0 For recharging the battery pack, install the battery pack in the printer or the battery holder. Insert the battery charger adaptor to the charge connector of the printer or the battery holder. ● NOTE : While charging the printer, turn off the printer power.

  • Page 16: Set Operation Mode

    Porti-WC40 Rev. 2.0 Change the mode and option using the MODE Code. l MODE button : use for changing OPTION status. (Error Lamp) l FEED button : use for changing MODE status. (Power Lamp) [Example] The defaults of the printer are :...
  • Page 17 Porti-WC40 Rev. 2.0 When you press FEED Button once again, Power Lamp flickers 6 times Error Lamp flickers once. ® Press MODE Button twice, Error Lamp flickers 3 times. And then the density has set to Density high. When you press FEED Button once again,...
  • Page 18 Porti-WC40 Rev. 2.0 POWER Lamp ERROR Lamp Option (Green) (Red) UART Protocol UART Communication Port Bluetooth Protocol Bluetooth 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit Data Bit 8 Data bit No Parity...
  • Page 19 Porti-WC40 Rev. 2.0 POWER Lamp ERROR Lamp Option (Green) (Red) No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute < Table 2 > http://www.woosim.com...

  • Page 20: Interface

    Porti-WC40 Rev. 2.0 The PORTI-WC40 printer has an UART(RS-232C or TTL) interface and is connected by means of a 4 pin mini USB socket. In the following table, the signals present on the Mini USB socket are listed: Pin No.

  • Page 21: Bluetooth

    Porti-WC40 Rev. 2.0 Category Specification Bluetooth Ver2.1 + EDR / Class2 (10m) Bluetooth Spec. Frequency Range 2.4GHz ISM BAND Data Transmission Rate 57600bps Fixed. Data bit 8 Data bit Fixed. Parity bit No parity Fixed. Stop bit 1 Stop bit Fixed.

  • Page 22: Using The Printer

    Porti-WC40 Rev. 2.0 u Button - FEED : When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. - MODE : MODE Button is for use to change communication mode.

  • Page 23: Self Test

    Porti-WC40 Rev. 2.0 The Self-Test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. For Self-Test, turn on the power while holding down the FEED Button. The Self-Test checks the following : 1) Make sure paper roll has been installed properly.

  • Page 24: Consumable Parts

    Porti-WC40 Rev. 2.0 Type : Thermal Paper Paper width : 113mm Paper thickness : 60±5㎛ Outer diameter : Ø38mm or less Recording side : Outside of roll Cautions Do not paste the paper to the core, and the roll paper which has near end mark printing on its near end is recommended.
