- Page 1 PORTI-P440 MODEL (4inch Panel Printer) Rev 4.0 All specifications are subjected to change without notice http://www.woosim.com...
- Page 2 Copyright ⓒ2017 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim System Inc. Trademark a registered trademark of Woosim Systems Inc.

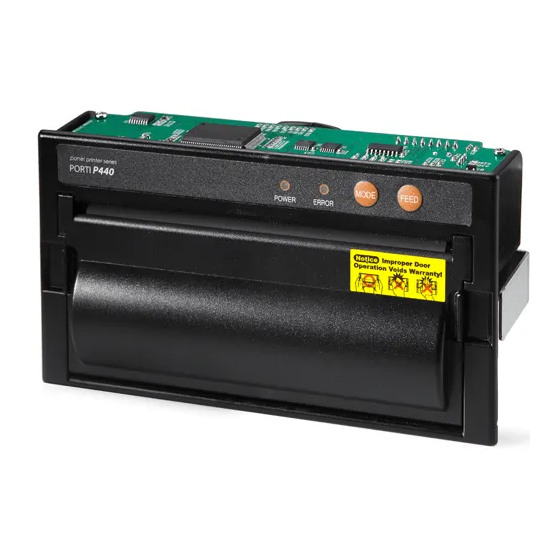

- Page 3 P440 Rev. 4.0 Introduction The PORTI-P440 is an extremely simple and functional panel printer. It is the ideal solution for applications which require the immediate printing of data on a paper, whether they be of an industrial, professional or laboratory nature.
- Page 4 Do not allow plastic film, erasers, or adhesive tape to touch the paper for long periods. ● Do not stack the thermal paper with diazo copies immediately after copying or wet-type copies. ● Do not use chemical glue. ● Always use the clean thermal paper. http://www.woosim.com 2018-07-11...
- Page 5 --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. http://www.woosim.com 2018-07-11...
-
Page 6: Table Of Contents
3. Interface ................................15 3.1. UART(RS-232C or TTL) ..........................15 4. Using the printer ...............................16 4.1. Control panel ..............................16 4.2. The self test ..............................16 5. Consumable Parts .............................17 5.1. Recommended paper ...........................17 5.2 Printing position ............................17 6. Revision History ..............................18 http://www.woosim.com 2018-07-11... -
Page 7: Outline
2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported. But some of the interfaces are not supported according to the product and please contact us, if you have any questions regarding the interface. http://www.woosim.com 2018-07-11... -
Page 8: Specifications
9VDC, Standby 60mA and Max 3A -10°C ~50°C (operating) Temperature -30°C ~ 70°C (storage) Environment conditions 30% - 80% (operating) Humidity 10% - 90% (storage) MCBF (Mean Cycle Mechanical 37,000,000 lines Between failure) Head Approximately 50Km < Table 1 > http://www.woosim.com 2018-07-11... -
Page 9: Setting Up The Printer
P440 Rev. 4.0 2.1. Printer & Accessories When unpacking your printer box make sure it contains the printer and all accessories. If any accessories are missing or damage, please contact your dealer for assistance. Thermal roll paper Porti-P440 http://www.woosim.com 2018-07-11... -
Page 10: Printer Features
P440 Rev. 4.0 2.2. Printer Features [unit : mm] http://www.woosim.com 2018-07-11... -
Page 11: Panel Installation
P440 Rev. 4.0 2.3. Panel Installation Uses the bracket(option) and the printer once more will be able to fix to the panel. http://www.woosim.com 2018-07-11... -
Page 12: Replacing The Paper Roll
2. Open the paper cover using finger on both side of printer, and remove the remaining paper. 3. Insert the paper roll as shown. 4. Tear the excess paper off using the edge of paper door as a tear bar. http://www.woosim.com 2018-07-11... -
Page 13: Setting Operation Mode
And then the density has set to 2 stop bit. When you press FEED Button once again, Power Lamp flickers 6 times Error Lamp flickers once. Press MODE Button twice, Error Lamp flickers 3 times. And then the density has set to Density high. http://www.woosim.com 2018-07-11... -
Page 14: Power Supply
Density Medium Density High < Table 2 > 2.6. Power supply The following specifications are requested for Power supply. INPUT POWER: DC9V / Max 3A Avoid using power supply which its power capacity of power current is extremely high. http://www.woosim.com 2018-07-11... -
Page 15: Interface
P440 Rev. 4.0 3.1. UART(RS-232C or TTL) The Porti-P440 printer has a UART(RS-232C or TTL) interface and power connector is connected by 8 pin female connector. In the following table, the signals present on the connector are listed: Pin no. -
Page 16: Using The Printer
3. Printer will print out the current status. (F/W version and set contents) 4. And then pattern of characters will be printed out. 5. Self-test will be finished automatically and turned to the standby status. ※ In case printer does not work properly, please contact Woosim customer service center. http://www.woosim.com 2018-07-11... -
Page 17: Consumable Parts
2. Chemicals or oil may change the color of paper, or printed characters may fade. 3. Change of paper color starts from approx. 70℃. Pay attention to heat, humidity and sun light. 4. Color of paper may be changed by being scratched by nail or hard metal, etc. 5.2 Printing position http://www.woosim.com 2018-07-11... -
Page 18: Revision History
P440 Rev. 4.0 Date Version Comments RX Version renewal Jun. 07. 2017 *Change page layout (B5→A4) * Delete address http://www.woosim.com 2018-07-11...
