- Page 1 PORTI-WP40 MODEL (PANEL PRINTER) WOOSIM SYSTEMS Inc. #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice...
- Page 2 2006 by Woosim System Inc. All rights reserved. The information contained in this manual is the property of Woosim System Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim System Inc Trademark a registered trademark of Woosim System Inc.
-
Page 3: Fcc Compliance Statements

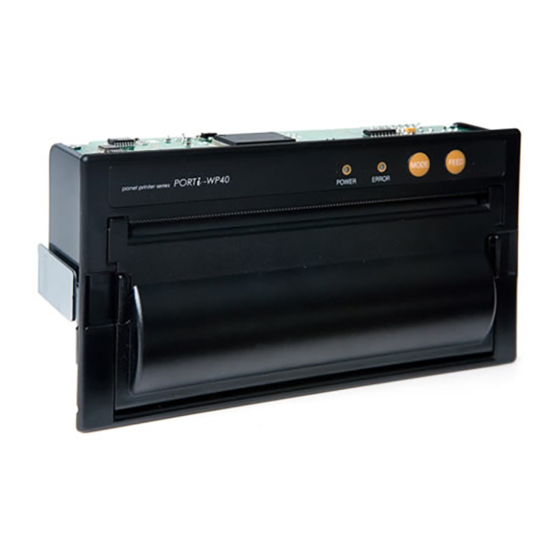

FCC Compliance Statements Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 4 Introduction The PORTI-WP40 is an extremely simple and functional panel printer. It is the ideal solution for applications which require the immediate printing of data on a paper, whether they be of an industrial, professional or laboratory nature. Medical analyzer, Industrial instrument, Recorder, Geological analyzer, Underground analyzer, Chemical analyzer, Metallic analyzer, etc.
-
Page 5: Using The Printer
Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer Be careful not to drop or bump the printer on a hard surface. Do not install the printer in direct sunlight or such areas. Suitable environment for the use of the printer is as follows : Operating temperature : -10°C to 40 °C Relative humidity... - Page 6 CONTENTS 1. Outline ............................6 1.1. Model classifications .........................6 1.2. Specifications ..........................7 2. Setting up the printer ........................8 2.1. Printer & Accessories ........................8 2.2. Printer Features..........................9 2.3. Panel Installation ........................10 2.4. Replacing paper roll.........................11 2.5. Set operation mode ........................12 2.6. Specified power supply ......................15 3.
- Page 7 Model name Size of roll paper 40 : 113mm wide, 40 Ø Interface None : RS-232C or TTL Power None : DC 9V...
- Page 8 Item Specification Print method Direct thermal line printing Characters per line 92cpl (MAX) Character size Eng. : 9 24dots, 12 24dots Kor. : 16 24dots, [24 24dots] Resolution 203dpi, 8dots/mm Print width 4-inch (104mm, 832dots) Print speed 40mm/sec Dimension 77.7 46.7 mm Weight 340g (including paper roll)
-
Page 9: Roll Paper
Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Roll paper Porti-WP40... - Page 12 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost. 2.
- Page 13 Press the Mode Button until the Error Lamp twinkles 5 times Change the mode and option using the Mode Button and the Feed Button according to the MODE code(Table1) Feed button : use for changing MODE status Mode button : use for changing OPTION status [Example] The defaults of the printer are:RS-232C/9600 BPS/8 DATA BIT/NO PARITY/ DENSITY LOW If a user wants to modify the defaults with...
- Page 14 Press the Mode Button one time, the Error Lamp twinkles 2 times. (The Parity bit has set to even parity bit.) Press the Feed Button one time, the Power Lamp twinkles 5 times and the Error Lamp twinkles 1 time. Press the Mode Button one time, the Error Lamp twinkles 2 times after then press the Mode Button again, the Error Lamp will twinkle 3 times (The density has set to High)
- Page 15 MODE OPTION RS-232C 1200BPS 2400BPS 4800BPS 9600BPS 19200BPS 38400BPS 57600BPS 115200BPS 7 DATA BIT 8 DATA BIT NO PARITY EVEN PARITY ODD PARITY DENSITY LOW DENSITY MEDIUM DENSITY HIGH Not Used Not Used <TABLE 1 >...
- Page 16 The following specifications are requested for power supply. Input Voltage : DC 9V Standby 60mA and Max 3A Avoid using a different power supply(extremely high) may cause damage to the printer...
- Page 17 The Porti-WP40 printer has RS-232C or TTL interface and power connector is connected by 8 pin female connector. In the following table, the signals present on the connector are listed: Pin no. Signal name Direction Function VPPO 9VDC/3A VPPO 9VDC/3A...
-
Page 18: Panel Lamp
Button - FEED : When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. - MODE : MODE Button is for use to change communication mode. Do not operate the mode button without instructions. Panel lamp - Power(Green) : Printer is ON and ready to receive data. - Page 19 The Self-Test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. For Self-Test, turn on the power while holding down the FEED Button. The Self-Test checks the following : 1) Make sure paper roll has been installed properly. 2) The Self-Test prints the current printer status, which provides the control ROM version and the communication method setting.
- Page 20 Type : Thermal Paper Paper width 113mm Paper thickness : 60±5 Outer diameter : Ø40mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has near end mark printing on its near end is recommended. 2.
