Page 1: Mobile Printer
PORTI-W40 MODEL (Mobile Printer) WOOSIM SYSTEM Inc. #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice http://www.woosim.com... - Page 2 2005 by Woosim System Inc. All rights reserved. The information contained in this manual is the property of Woosim System Inc. and may not be reproduced in whole or in part without the prior written permission of Woosim System Inc.

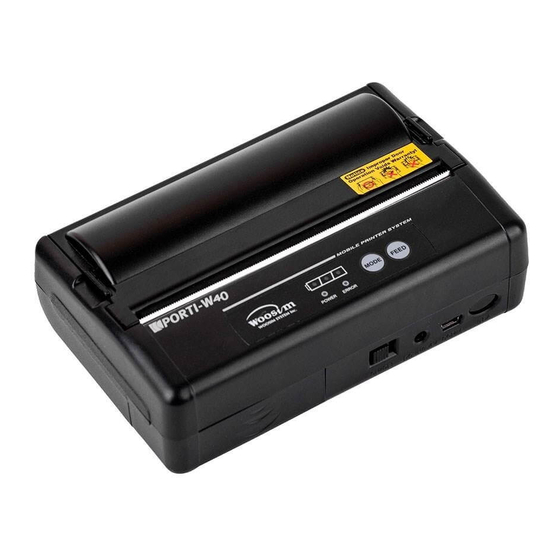

- Page 3 Introduction The PORTI-W40 is suitable designed for use with a growing variety of mobile devices. IrDA/Serial or Bluetooth/Serial interfaces make the PORTI-W40 the perfect comrade for applications such as point of transaction warehousing, distribution, point of sales, hospitality, gaming and healthcare.
- Page 4 The AC adapter, the battery charger and the battery pack may become warm when in use. This is normal and is not a malfunction. When the battery pack is used at low temperature, the length of time the printer can be used may be shortened. http://www.woosim.com...
- Page 5 Do not allow plastic film, erasers, or adhesive tape to touch the paper for long periods. Do not stack the thermal paper with diazo copies immediately after copying or wet-type copies. Do not use chemical glue. Always use the clean thermal paper. http://www.woosim.com...
-
Page 6: Table Of Contents
3.2. Infrared data communication ....................19 3.3. Bluetooth ..........................20 4. Using the printer ..........................21 4.1. Control panel ........................21 4.2. Self test ..........................22 4.3. Driver installation .......................23 4.4. Bit-image download......................25 4. 5. Troubleshooting.........................26 5. Consumble parts ..........................28 5.1. Recommended paper......................28 5.2. Printing position........................28 http://www.woosim.com... -
Page 7: Outline
PORTI-W40 ( Model Name Interface None : IrDA/Serial BT : Bluetooth/Serial Power None : DC 8.4V http://www.woosim.com... -
Page 8: Specifications
Output(8.4VDC/0.8A), 4hours full charge time -10 C ~ 40 C (operating) Temperature -10 C ~ 70 C (storage) Environment 30% - 80% (operating) Conditions Humidity 10% - 90% (storage) Mechanical 37,000,000 lines MCBF (Mean Cycle Head Approximately 50 Km Between failure) http://www.woosim.com... -
Page 9: Setting Up The Printer
When unpacking your printer box make sure it contains the printer and all accessories. If any accessories are missing or damage, please contact your dealer for assistance. PORTI-W40 BATTERY PACK Communication Cable AC adapter for Battery Charge SHAFT ROLL PAPER... -
Page 10: Part Name And Outer Appearances
http://www.woosim.com... -
Page 11: Replacing The Paper Roll
3. Remove the used paper roll core if there is one. 4. Insert the paper roll as shown. 5. Be sure to note the correct direction that the paper comes off the roll. http://www.woosim.com... - Page 12 6. We could be use 3inch Rollpaper with the 3inch Guide, as shown. That will make use the Shaft, portable printer is so much better for stability. 7. Pull out a small amount of paper and then close the cover and tear off the paper, as shown. http://www.woosim.com...
-
Page 13: Power Connection
Insert the Battery pack in the direction of the arrow and . Push the top of the battery pack. Removing the battery pack Turn the printer power off. Push the battery pack lock and to lift up the direction of the arrow. http://www.woosim.com... -
Page 14: Recharging The Battery Pack
Do not remove the battery during charging. Remove the communication cable from the connector during charging. The recharging time depends on the voltage level and the ambient temperature of the battery pack. Normally, if takes about 4 to 5 hours to recharge a battery pack. http://www.woosim.com... -
Page 15: Adjustment And Setting
Error Lamp twinkles 4 times Press MODE Button one time, Error Lamp twinkles 5 times and press the MODE Button one more time, the Error Lamp twinkles 6 times (The baud rate has set to 38,400 bps) http://www.woosim.com... - Page 16 The printer will print out the mode status which has modified. (PROTOCOL IrDA/ 38,400 BAUD/ 7 DATA BIT/ EVEN PARITY/ DENSITY HIGH) If the status is not correct, please try it again according to the procedure. http://www.woosim.com...
- Page 17 19200 bps 38400 bps 57600 bps 9600 bps 7 Data bit Data Bit 8 Data bit No Parity Even Parity Parity Bit Odd Parity Density Low Density Medium Density Density High Default Protocol Protocol Lotte Protocol No use Mark (Fig.1.9) http://www.woosim.com...
-
Page 18: Interface
The PORTI-W40 printer has a RS-232C serial interface is connected by means of a 4 pin male connector. In the following table, the signals present on the connector are listed: Pin No. Name Direction Function Output Transmit Data Input Receive Data Ground <CN7 : CM-722>... -
Page 19: Infrared Data Communication
The PORTI-W40 has a serial interface for bi-directional data exchange. The infrared port is the right side of the front part. 1. To use the PORTI-W40’s infrared port by a Computer or a Personal Digital Assistant (PDA) with IR port is required. -
Page 20: Bluetooth
Parity bit 1 Stop bit Fixed. Stop bit Notice If the quantity of data what printed at once is more than 20K byte on Bluetooth communication, it would cause the buffer to overflow and the data to get damaged. http://www.woosim.com... -
Page 21: Using The Printer
- Error : This lamp(Red) indicated an error such as paper end, or cover open, or mode conversion ,etc. - Battery Power : These lamps(Green) indicated the battery power remaining. The battery gain in quantity and these lamps are on the decrease. If so, you must recharge the battery by using the adapter. http://www.woosim.com... -
Page 22: Self Test
3) After printing the current printer status, Self-Test will print a pattern using the built- in character set. 4) The Self-Test automatically ends. The printer is ready to receive data as soon as it complete the Self-Test. http://www.woosim.com... -
Page 23: Driver Installation
The driver installation instruction were written for the printer to be used with the Infrared port and serial port(RS-232C). Make sure that your PC has built-in infrared device(IrDA Ver1.0). Printer driver can download by Internet(http://www.woosim.com). Installing the PORTI-W Printer Driver on Windows 98/ME/2000/XP. 1) You must install new driver after deleting old driver. - Page 24 3) Select printer model to install, and press “Next”. (Fig.4.3.2) 4) Select the port connected to printer, and press “Next” (Fig.4.3.3) http://www.woosim.com...
-
Page 25: Bit-Image Download
5) If the installation has done successfully, press “OK”. (Fig.4.3.4) The PORTI-W40 Printer supports bit image download to the internal Flash ROM. The bit image download require the Porti_Download application and PCX file. Porti_Download Application : The Porti_Download application can download by internet( http://www.woosim.com). -
Page 26: Troubleshooting
IrDA transmission status is good? (To close up between Infrared Transmitter / Receiver and the host computer?) Transmission conditions of the host computer is correct? (IrDA port is activated and set-up correctly?) Paper is not inserted? Paper orientation(top/bottom) is correct? http://www.woosim.com... - Page 27 Battery pack case damaged? The battery runs out soon even if recharged. Battery been recharged correctly? If the battery is recharged correctly, but does not take a long time, it is almost dead. Replace if with a new one. http://www.woosim.com...
-
Page 28: Consumble Parts
2. Chemicals or oil may change the color of paper, or printed characters may fade. 3. Change of paper color starts from approx. 70 C. Pay attention to heat, humidity and sun light. 4. Color of paper may be changed by being scratched by nail or hard metal, etc. http://www.woosim.com...
