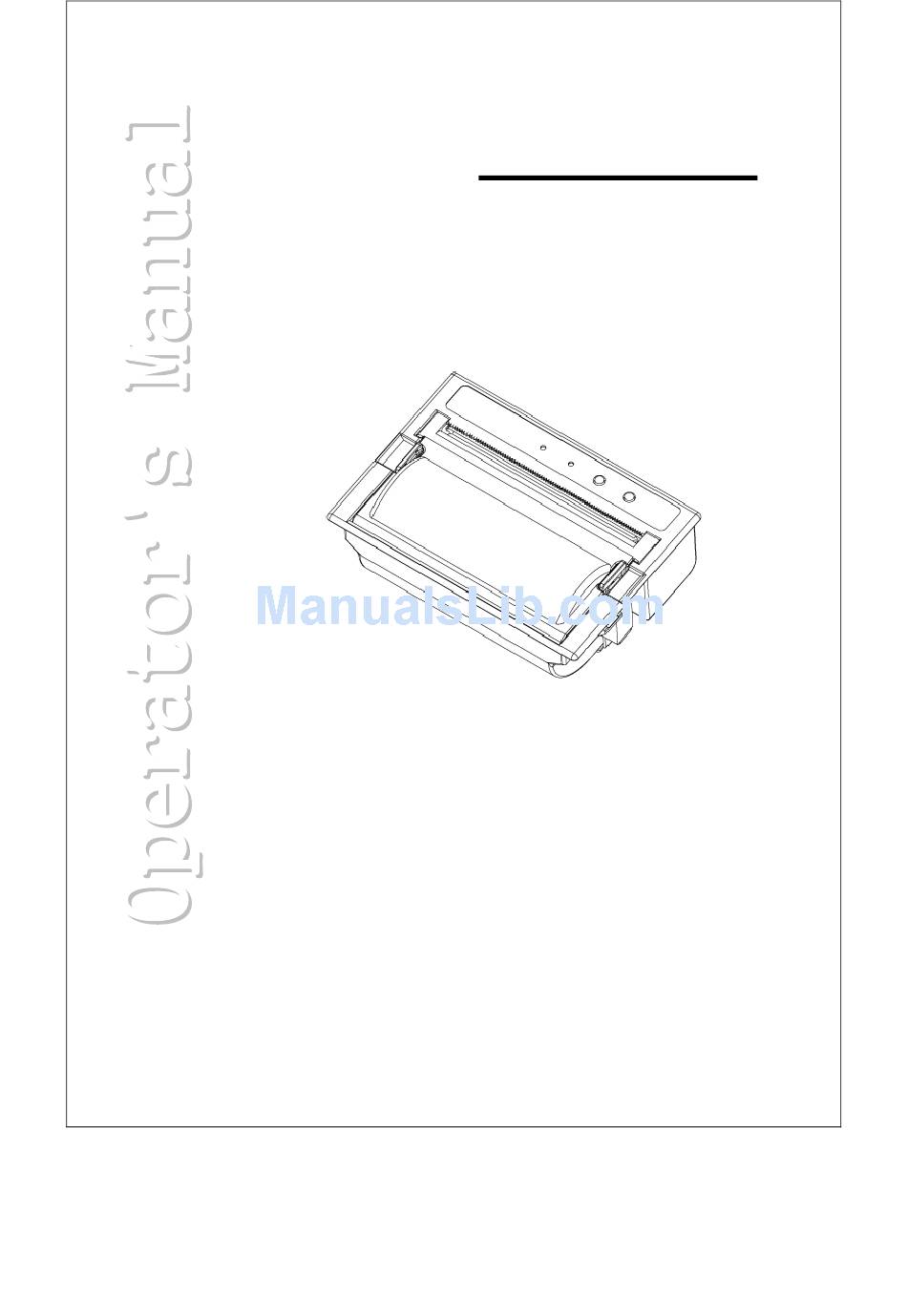

- Page 1 PORTI-P340 MODEL WOOSIM SYSTEMS Inc. #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice...
- Page 2 Copyright ⓒ2007 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim System Inc.
- Page 3 Introduction The PORTI-P340 is an extremely simple and functional thermal printer. It is the ideal solution for applications which require the immediate printing of data on a paper, whether they be of an industrial,professional or laboratory nature. Medical analyzer, Industrial instrument, Recorder, Geological analyzer, Underground analyzer, Chemical analyzer, Metallic analyzer, etc.
- Page 4 ◆ Relative humidity : 10% to 90% (no condensation) Do not install the printer near devices that generate strong ● electromagnetic fields such as a copy machine. Do not remove or reinstall the communication cable during ● printing or transmission. http://www.woosim.com 2007-10-26...
-
Page 5: Table Of Contents
2.5. Set operation mode ........................12 2.6. Specified power supply ......................15 3. Interface............................16 3.1. UART ............................16 4. Using the printer ..........................17 4.1. Control panel ...........................17 4.2. The self test..........................18 5. Consumable Parts........................19 5.1. Recommended paper .......................19 5.2 Printing position ........................19 http://www.woosim.com 2007-10-26... -
Page 6: Outline
None : DC 9V 1.2. Product Part Number System Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA HPIR RS-485 None Parallel None Example) 1. PORTI-S40 Serial/Bluetooth Part No. ⇒ S40/A1 2. PORTI-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 http://www.woosim.com 2007-10-26... -
Page 7: Specifications
° ° C ~ 40 C (operating) Temperature ° ° C ~ 70 C (storage) Environment 30% - 80% (operating) conditions Humidity 10% - 90% (storage) Mechanical 37,000,000 lines MCBF (Mean Cycle Head Approximately 50 Km Between failure) http://www.woosim.com 2007-10-26... -
Page 8: Setting Up The Printer
2.1. Printer & Accessories When unpacking your printer box make sure it contains the printer and all accessories. If any accessories are missing or damage, please contact your dealer for assistance. Roll paper PORTI-P340 http://www.woosim.com 2007-10-26... -
Page 9: Printer Features
2.2. Printer Features http://www.woosim.com 2007-10-26... -
Page 10: Installation
2.3. Installation http://www.woosim.com 2007-10-26... -
Page 11: Replacing Paper Roll
2. Open the paper roll cover using your finger on both side of printer and remove the remaining paper. 3. Insert a new paper roll as shown. 4. Tear the excess paper off using the edge of paper door as a tear bar. http://www.woosim.com 2007-10-26... -
Page 12: Set Operation Mode
→ Press the Mode Button one time, the Error Lamp twinkles one time. (The Data Bit has set to 7 data bit.) Press the Feed Button one time, the Power Lamp twinkles 4 times and the Error Lamp twinkles 1 time. http://www.woosim.com 2007-10-26... - Page 13 The printer will print out the mode status which has modified. (RS-232C/ 38,400 BPS/ 7 DATA BIT/ EVEN PARITY/ DENSITY HIGH) If the status is not correct, please try it again according to the procedure. http://www.woosim.com 2007-10-26...
- Page 14 7 Data bit Data Bit 8 Data bit No Parity Even Parity Parity Bit Odd Parity 1 Stop Bit Stop Bit 2 Stop Bit Density Low Density Medium Density Density High No use Mark Medium1 Sensor Medium2 High TABLE 1 http://www.woosim.com 2007-10-26...
-
Page 15: Specified Power Supply
2.6. Specified power supply The following specifications are requested for power supply. Input : DC 9V / Max 3A Avoid using power supply which its power capacity of power current is extremely high. http://www.woosim.com 2007-10-26... -
Page 16: Interface
3.1. UART The PORTI-P340 printer has UART interface and power connector is connected by 6 pin female connector. In the following table, the signals present on the connector are listed: Pin no. Signal name Direction Function INPUT 9VDC/3A Output Transmit Data... -
Page 17: Using The Printer
Do not operate the mode button without instructions. Panel lamp - Power(Green) : Printer is ON and ready to receive data. : Indicates a fault condition or a printer error. - Error (Red) (i.e : no paper, paper cover opened. etc.) http://www.woosim.com 2007-10-26... -
Page 18: The Self Test
ROM version and the communication method setting. 3) After printing the current printer status, Self-Test will print a pattern using the built-in character set. 4) The Self-Test automatically ends. The printer is ready to receive data as soon as it complete the Self-Test. http://www.woosim.com 2007-10-26... -
Page 19: Consumable Parts
2. Chemicals or oil may change the color of paper, or printed characters may fade. 3. Change of paper color starts from approx . 70℃. Pay attention to heat, humidity and sun light. 4. Color of paper may be changed by being scratched by nail or hard metal, etc. 5.2 Printing position http://www.woosim.com 2007-10-26...
