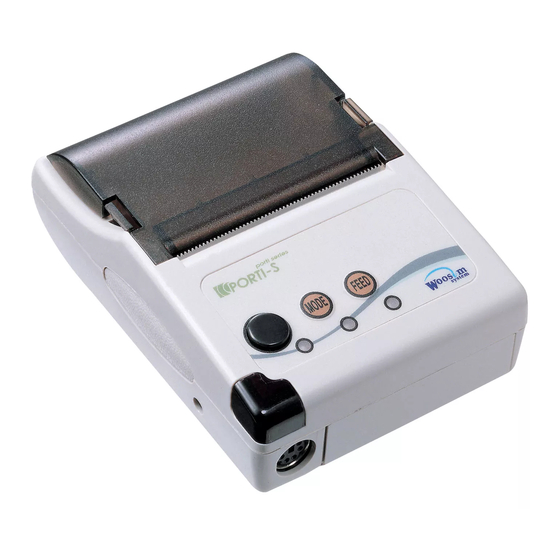

PORTI-S (PORTABLE PRINTER)
Operator's Manual
WOOSIM SYSTEM Inc.
Room 404, GeonGuk BLDG, 288-1, Doksan-1Dong
GeumChun-Ku, Seoul, Korea
Tel : +82-2-852-8575, Fax : +82-2-852-8577
URL : www.poky.co.kr
All specifications are subjected to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PORTI-S and is the answer not in the manual?

Questions and answers

Summary of Contents for WOOSIM PORTI-S

  • Page 1 PORTI-S (PORTABLE PRINTER) Operator's Manual WOOSIM SYSTEM Inc. Room 404, GeonGuk BLDG, 288-1, Doksan-1Dong GeumChun-Ku, Seoul, Korea Tel : +82-2-852-8575, Fax : +82-2-852-8577 URL : www.poky.co.kr All specifications are subjected to change without notice...
  • Page 2 "OFF". INTRODUCTION The PORTI-S is designed for use with electronic instruments such as mobile POS, retail, transportation. warehousing, other traveling and mobile computing. The main features of the printer are as follows: 1.
  • Page 3: Table Of Contents

    Table of Contents CHAPTER 1. SETTING UP THE PRINTER 1.1. UNPACKING 1.2. CONNECTING THE CABLE 1.3. INSTALLING OR REPLACING THE PAPER ROLL 1.4. ADJUSTMENTS AND SETTING 1.5. USING THE PRINTER CHAPTER 2. THE SELF TEST CHAPTER 3. CODE TABLE CHAPTER 4. CONTROL COMMANDS CHAPTER 5.
  • Page 4: Chapter 1. Setting Up The Printer

    Chapter 1. Setting up the printer 1.1 Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. PORTI-S Roll Paper Operator's Manual Connector Adaptor for battery recharge Leatherette case...
  • Page 5: Connecting The Cable

    1.2. Connecting the cable You can connect up to two cables to the printer. It connects to the connector part on the left and front side of the printer, which is shown below. Power connector Commucation connector for RS232C Refer to the APPENDIX B for more information about communication connector. Note : Before connecting the cable, make sure that both the host and the power button to apply to the printer are turned off.
  • Page 6: Installing Or Replacing The Paper Roll

    1.3. Installing or replacing the paper roll Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly.
  • Page 7 5. Be sure to note the correct direction that the paper comes off the roll. 6, Pull out a small amount of paper and then close the cover, as shown. 7. Tear off the paper as shown.
  • Page 8: Adjustments And Setting

    1.4. Adjustments and setting The PORTI-S is set up at the factory to be appropriate for almost all users. But if you want another specification to fit the printer at your system such as change the baud rate, handshaking, parity check, as well as print density, please contact to our development team or your dealer.
  • Page 9 2) FEED Press the FEED button once to advance paper one line. You can also hold down the FEED button to feed paper continuously. 3. Panel lights 1) POWER LED The POWER light is on whenever the printer is on. But when the battery is almost exhausted, this led flashes with red color occasionally.
  • Page 10: Chapter 2. The Self Test

    Chapter 2. The self test The self-test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. The self-test checks the following; 1. Make sure paper roll has been installed properly. 2. Turn on the power while holding down the FEED button. The self-test begins. 3.
  • Page 11: Code Table

    Chapter 3. Code table The following pages show the character code tables. To find the character corresponding to a hexadecimal number, count across the top of the table for the left digit and count down the left column of the table for the right digit. For example 4A = J 0000 0001...
  • Page 12 1000 1001 1010 1011 1100 1101 1110 1111 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111 Page 0 (PC437 ; USA, Standard Europe) (0x80 - 0xFF)
  • Page 13: Control Commands

    Chapter 4. Control commands Command Notation [Name] The name of the command [Format] The code sequence ASCII indicates the ASCII equivalents HEX indicates the hexadecimal equivalents. Decimal indicates the decimal equivalents. [ ]k indicates the contents of the [ ] should be repeated k times. [Range] Gives the allowable ranges for the arguments.
  • Page 14 [Name] Print and line feed [Format] ASCII Decimal [Description] Prints the data in the print buffer and feeds one line based on the current line spacing. [Notes] This command sets the print position to the beginning of the line. [Reference] ESC 2, ESC 3 [Name] Print and return to standard mode in page mode.
  • Page 15 ESC FF [Name] Print data in page mode [Format] ASCII ESC FF Decimal [Description] In page mode, prints all buffered data in the printing area collectively. [Notes] This command is enabled only in page mode. After printing, the printer does not clear the buffered data, setting values for ESC T and ESC W, and the position for buffering character data.
  • Page 16 [Default] n = 0 [Reference] GS P ESC ! n [Name] Select print mode [Format] ASCII Decimal [Range] 0 <= n <= 255 [Description] Selects print mode(s) using n as follows. Off/On Decimal Function Character font A (12x24) Character font B (9x17) Undefined Undefined Emphasized mode not selected...
  • Page 17 4) When some characters in a line are double or more height, all the characters on the line are aligned at the baseline. 5) ESC E can also turn on or off emphasized mode. However, the setting of the last received command is effective. 6) ESC - can also turn on or off underline mode.
  • Page 18 [Reference] ESC \, GS $, GS \, GS P ESC % n [Name] Select/Cancel user defined character set. [Format] ASCII ESC % Decimal [Range] 0 <= n <= 255 [Description] Selects or cancels the user defined character set. [Notes] 1) When the LSB of n is 0, the user defined character set is canceled. 2) When the LSB of n is 1, the user defined character set is selected.
  • Page 19 5) It is possible to define multiple characters for consecutive character codes. If only one character is desired, use c1 = c2. 6) d is the dot data for the characters. The dot pattern is in the horizontal direction from the left side. Any remaining dots on the right side are blank.
  • Page 20 d1=<0F>H d2=<03>H d3=<00>H d4=<30>H d5=<80>H => d6=<00H> d7=<40H> d8=<40H> d9=<20>H ESC * m nL nH d1...dk [Name] Select bit-image mode. [Format] ASCII ESC & d1...dk 2A m d1...dk Decimal m nL d1...dk [Range] m = 0, 1, 32, 33 0 <= nL <= 255 0 <= nH <= 3 0 <= d <= 255 [Description] Selects a bit-image mode using m for the number of dots specified...
  • Page 21 3) The number of dots is calculated by nL + nH x 256. 4) If the bit-image data input exceeds the number of dots to be printed on a line, the excess data is ignored. 5) d indicates the bit-image data. Set a corresponding bit to 1 to print a dot or to 0 to not print a dot.
  • Page 22 - When 24-dot bit image is selected: Bit-image data d1 d2 d3 d4 d5 d6 d7 d8 d9 Bit-image data Print data 1dot Print data Single density Double density ESC - n [Name] Turn underline mode on/off [Format] ASCII Decimal [Range] 0 <= n <= 2, 48 <= n <= 50 [Description]...
  • Page 23 1) The printer can underline all characters (including right-side character [Notes] spacing), but cannot underline the space set by HT. 2) The printer cannot underline white/black inverted characters. 3) When underline mode id turned off by setting the value of n to 0 or 48, the following data is not underlined, and the underline thickness set before the mode is turned off does not change.
  • Page 24 2) The horizontal and vertical motion unit are specified by GS P. Changing the horizontal or vertical motion unit does not affect the current line spacing. 3) The GS P command can change the horizontal (and vertical) motion unit. However, the value cannot be less than the minimum vertical movement amount, and it must be in even units of the minimum vertical movement amount.
  • Page 25 in the font selected by ESC !. 3) If a user defined character has not been defined for the specified character code, the printer ignores this command. [Reference] ESC &, ESC % ESC @ [Name] Initialize printer. [Format] ASCII Decimal [Description] Clears the data in the print buffer and resets the printer mode to the mode that was in effect when the power was turned on.
  • Page 26 sending HT. 6) Up to 32 tab positions (k=32) can be set. Data exceeding 32 tab positions is processed as normal data. 7) Transmit [n]k in ascending order and place a NUL code 0 at the end. 8) When [n]k is less than or equal to the preceding value [n]k-1, tab setting is finished and the following data is processed as normal data.
  • Page 27 ESC J n [Name] Print and feed paper. [Format] ASCII Decimal [Range] 0 <= n <= 255 [Description] Prints the data in the print buffer and feeds the paper [n x vertical or horizontal motion unit] inches. [Notes] 1) After printing is completed, this command sets the print starting position to the beginning of the line.
  • Page 28 ESC L [Name] Select page mode [Format] ASCII Decimal [Description] Switches from standard mode to page mode. [Notes] 1) This command is enabled only when processed at the beginning of a line in standard mode. 2) This command has no effect in page mode. 3) After printing by FF is completed or by using ESC S, the printer returns to standard mode.
  • Page 29 [Description] Selects an international character set n from the following table. Character set Character set U.S.A. Sweden France Italy Germany Spain U.K. Norway Denmark I Denmark II [Default] n = 0 ESC S [Name] Select standard mode [Format] ASCII Decimal [Description] Switches from page mode to standard mode.
  • Page 30 [Reference] FF, ESC FF, ESC L ESC T n [Name] Select print direction in page mode [Format] ASCII Decimal [Range] 0 <= n <= 3 or 48 <= n <= 51 [Description] Selects the print direction and starting position in page mode. n specifies the print direction and starting position as follows;...
  • Page 31 Commands using horizontal motion units:ESC 3, ESC J, GS $,GS \ Commands using vertical motion units : ESC SP, ESC $, ESC \ [Default] n = 0 [Reference] ESC $, ESC L, ESC W, ESC \, GS $, GS P, GS \ ESC W xL xH yL yH dxL dxH dyL dyH [Name] Set printing area in page mode...
  • Page 32 (vertical printable area-vertical starting position). 7) The horizontal and vertical motion unit are specified by GS P. Changing the horizontal or vertical motion unit does not affect the current printing area. 8) The GS P command can change the horizontal (and vertical) motion unit.
  • Page 33 [(nL+nHx256) x horizontal or vertical motion unit] 2) Any setting that exceeds the printable are is ignored 3) When pitch N is specified to the right; nL + nH x 256 = N When pitch N is specified to the left (the negative direction), use the complement of 65536.
  • Page 34 [Notes] 1) The command is enabled only when processed at the beginning of the line in standard mode. 2) If this command is input in page mode, the printer performs only internal flag operations. 3) This command has no effect in page mode. 4) This command executes justification in the printing area.
  • Page 35 ESC d n [Name] Print and feed n lines [Format] ASCII Decimal [Range] 0 <= n <= 255 [Description] Prints the data in the print buffer and feeds n lines. [Notes] 1) This command sets the print starting position to the beginning of the line.
  • Page 36 2) This command is enabled only when processed at the beginning of a line in standard mode. 3) When this command is input in page mode, the printer performs only internal flag operations. 4) This command does not affect printing in page mode. 5) In upside-down printing mode, the printer rotates the line to be printed by 180 degree and then prints it.
  • Page 37 [Notes] 1) This command is all characters effective 2) If n is outside of the defined range, this command is ignored. 3) In standard mode, the vertical direction is the paper feed direction, and the horizontal direction is perpendicular to the paper feed direction.
  • Page 38 8) The GS P command can change the horizontal and vertical motion unit. However, the value cannot be less than the minimum horizontal movement amount, and it must be in even units of the minimum horizontal movement amount. [Reference] ESC $, ESC T, ESC W, ESC \, GS P, GS \ GS : [Name] Start/End macro definition...
  • Page 39 [Notes] 1) When the LSB is 0, white/black reverse printing mode is turned on. 2) When the LSB is 1, white/black reverse printing mode is turned off. 3) Only the lowest bit of n is valid. 4) This command is available for built in characters and user defined characters.
  • Page 40 the current left margin. 7) The horizontal motion unit (x) is used for calculating the left margin. The calculated result is truncated to the minimum value of the mechanical pitch. [Default] nL = 0, nH = 0 [Reference] GS P, GS W GS P x y [Name] Set horizontal and vertical motion units.
  • Page 41 truncated to the minimum value of the mechanical pitch. [Default] x = 180, y = 360 [Reference] ESC SP, ESC $, ESC 3, ESC J, ESC W, ESC \, GS $, GS L, GS W, GS \ GS W nL nH [Name] Set printing area width.
  • Page 42 Left margin Extended to right Printing area width set nL and nH If the printing area width cannot be extended sufficiently, the left margin is reduced to accommodate one character. Printable area Left margin Reduced left margin Extended to right If the printing area width cannot be extended sufficiently, the right space is reduced.
  • Page 43 position in page mode. [Notes] 1) This command sets the distance from the current position to [(nL + nHx256)] x vertical or horizontal motion unit inches. 2) This command is ignored unless page mode is selected. 3) When pitch N is specified to the movement downward; nL + nHx256 = N When pitch N is specified to the movement upward (the negative direction), use the complement of 65536.
  • Page 44 When LSB of m = 0 The macro executes r times continuously at the interval specified by t. When LSB of m = 1 After waiting for the period specified by t, the ERROR LED indicators blink and the printer waits for the FEED button to be pressed.
  • Page 45 d1...dn Decimal d1...dn [Range] 0 <= m <= 6 (k and d depends on the bar code system used.) 65 <= m <= 73 (n and d depends on the bar code system used.) [Description] Selects a bar code system and prints the bar code. m selects a bar code system as follows.
  • Page 46 prints the bar code after receiving 13 bytes bar code data and processes the following data as normal data. 4) When the bar code system used in JAN8(EAN8), the pritner prints the bar code after receiving 8 bytes bar code data and processes following data as normal data.
  • Page 47 [Reference] GS k ESC Z m n k d d1...dn [Name] Print 2D bar code [Format] ASCII d1...dn d1...dn Decimal d1...dn [Range] 1 <= m <= 7 0 <= n <= 8 2 <= k <= 5 1 <= d <= 65535 [Description] Print 2D bar code (PDF417 format).
  • Page 48 Chapter 5. Introduction of protocol IrDA 5.1 Frame structure DATA CHECKSUM SOF : Start of frame (SOF code must be 0xC0) TOF : Type of frame (See the table shown below) EOF : End of frame (EOF code must be 0xC1) CHECKSUM : Checksum is necessary in case of the TOF code is 0x44.
  • Page 49 5.2 Process of printer status inquiry HOST PRINTER Printer status require frame transmit Printer status response frame transmit 1. If there is no response from printer, after fifth times recheck with every 400ms, then display the error message such as "The printer cannot fined" on your display panel same like CRT, PDA, etc.
  • Page 50 - Previous DATA ID : Finally used DATA ID 5.3 Process of transmitting and receiving print data HOST PRINTER ENQ frame transmit ACK frame transmit Print data frame transmit If there is no error during data transmit, EOT frame transmit If there is any error during data transmit, NACK frame transmit...
  • Page 51 5.4 Structure of print data frame DATA Print 0x44 DATA ID CHECKSUM Length DATA 1. DATA ID : It is made up 1 digit number. The range is 0 - 9. The number must be character code. 2. DATA Length : It consists of 4 digit numbers. The range is 0001 - 9999.
  • Page 52 5.5 Structure of ENQ frame 0x05 DATA ID 1. If there is no response ACK frame after transmitting ENQ frame from host, transmit again ENQ frame after waiting 400ms. 2. In case of no response over 10 times from printer about ENQ frame, display PRINTER CANNOT FINDED message on the your display panel, and wait operator's measures.
  • Page 53 APPENDIX A.MISCELLANEOUS NOTES 1. Printer mechanism handing 1) Do not pull the paper out when the cover is closed. 2) Because the thermal elements of the print head and driver ICs are easy to break, so do not touch them with any metal objects. 3) Since the areas around the print head become very hot during and just after printing, do not touch them.
  • Page 54 a nail, the paper may become discolored. Notes on thermal paper storage Since color development begins at 70C (158F), thermal paper should be protected from high temperature, humidity, and light, both before and after printing. 1) Store paper away from high temperature and humidity. Do not store thermal paper near a heater or in enclosed places exposed to direct sunlight.
  • Page 55 B. CONNECTORS Pin no Signal name Direction Function Output Transmit Data Input Receive Data Output Clear to send Input Request to send Input Ground...
  • Page 56 C. Specification Printing method Direct thermal line printing Dot density 203 DPI Printing width 48 mm Paper width 57 - 58 mm Characters per line Printing speed 50mm / sec Receive buffer size 10K bytes Printing speed may be slower, depending on Note the data transmission speed and the combination of control commands.
