MODEL
All specifications are subjected to change without notice.

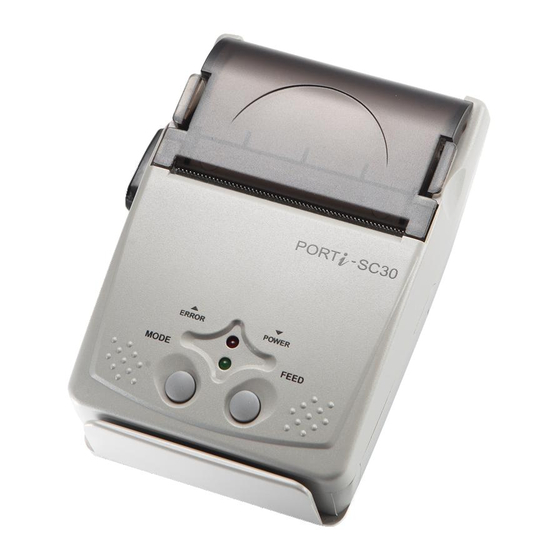

PORTI-SC30

(Mobile Printer)

Rev. 2.0
WOOSIM SYSTEMS Inc.
#501, Daerung Technotown 3th,
448, Gasan-Dong, GeumChun-Ku,
Seoul, Korea
Tel : +82-2-2107-3700
Fax : +82-2-2107-3707
URL:
http://www.woosim.com
http://www.woosim.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PORTI-SC30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WOOSIM PORTI-SC30

Summary of Contents for WOOSIM PORTI-SC30

  • Page 1: Mobile Printer

    PORTI-SC30 MODEL (Mobile Printer) Rev. 2.0 WOOSIM SYSTEMS Inc. #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice. http://www.woosim.com...
  • Page 2 Copyright ⓒ2007 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. and may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.
  • Page 3 Porti-SC30 Rev. 2.0 ¦ Introduction The Porti-SC30 is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. The general features of Porti-SC30 printer are as follows: Pocket size(75.5 * 112 * 34mm) Light weight(225g) for true mobility.

  • Page 4: Operating Precautions

    Porti-SC30 Rev. 2.0 ¦ Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ● Do not install the printer in direct sunlight or such areas.
  • Page 5 Porti-SC30 Rev. 2.0 ¦ Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Table Of Contents

    Porti-SC30 Rev. 2.0 CONTENTS 1. Outline............................7 1.1. Model classifications........................7 1.2. Product Part Number System ....................7 1.3. Specifications..........................8 2. Setting up the printer........................10 2.1. Printer & Accessories ......................10 2.2. Printer Features ........................11 2.3. Installing or replacing the paper roll..................12 2.4.

  • Page 7: Outline

    : USB/IrDA BT : Bluetooth/UART Power None : DC 8.4V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Serial/Bluetooth Part No. ⇒ S40/A1 Example) 1. Porti-S40 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 http://www.woosim.com...

  • Page 8: Specifications

    Porti-SC30 Rev. 2.0 Item Specification Direct thermal line printing Printing method 42cpl (MAX) Characters per line Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots] Character size Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Optional Characters Greek, Japanese, Persian, Latin9 and Others upon request.
  • Page 9 Porti-SC30 Rev. 2.0 Item Specifications -10°C ~ 50°C (operating) Temperature -10°C ~ 70°C (storage) Environment conditions 30% - 80% (operating) Humidity 10% - 90% (storage) Mechanical 37,000,000 lines MCBF(Mean Cycle Between Failure) Head Approximately 50 Km < Table 1 >...

  • Page 10: Setting Up The Printer

    Porti-SC30 Rev. 2.0 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Thermal Roll Paper PORTI-SC30 Battery charger adaptor ▼ OPTIONAL Communication cable Car charger http://www.woosim.com...

  • Page 11: Printer Features

    Porti-SC30 Rev. 2.0 ▶ Part Name ▶ Dimensions http://www.woosim.com...

  • Page 12: Installing Or Replacing The Paper Roll

    Porti-SC30 Rev. 2.0 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost.

  • Page 13: Power Supply

    Porti-SC30 Rev. 2.0 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A Avoid using power supply which its power capacity of power current is extremely high. ● NOTE : Before installing or removing the battery pack, ensure the printer is OFF.

  • Page 14: Recharging The Battery

    Porti-SC30 Rev. 2.0 For recharging the battery pack, install the battery pack in the printer. ● NOTE : While charging the printer, turn off the printer power. ● Do not remove the battery during charging. ● The battery is consumable parts and when purchasing, compared to the use hour is gradually decreases.

  • Page 15: Set Operation Mode

    Porti-SC30 Rev. 2.0 < M37702 (OLD) Version > Change the mode and option using the MODE Code. l MODE button : use for changing OPTION status. (Error Lamp) l FEED button : use for changing MODE status. (Power Lamp) [Example] The defaults of the printer are :...
  • Page 16 Porti-SC30 Rev. 2.0 When you press FEED Button twice, Power Lamp flickers 7 times Error Lamp flickers twice. ® Press MODE Button once, Error Lamp flickers twice. And then the mark has set to Marm no use. When you press FEED Button once again,...
  • Page 17 Porti-SC30 Rev. 2.0 * M37702 ( OLD ) IrDA Version POWER Lamp ERROR Lamp MODE Option (Green) (Red) RS-232C Protocol IrDA Communication Port Standard IrDA Protocol 232C 1200 bps 2400 bps 4800 bps 9600 bps Baud Rate 19200 bps 38400 bps...
  • Page 18 Porti-SC30 Rev. 2.0 * M37702 ( OLD ) Bluetooth Version POWER Lamp ERROR Lamp MODE Option (Green) (Red) RS-232C Communication Protocol Bluetooth Port Bluetooth 1200 bps 2400 bps 4800 bps 9600 bps Baud Rate 19200 bps 38400 bps 57600 bps...
  • Page 19 Porti-SC30 Rev. 2.0 < M16C, ARM ( NEW ) Version > Change the mode and option using the MODE Code. l MODE button : use for changing OPTION status. (Error Lamp) l FEED button : use for changing MODE status.
  • Page 20 Porti-SC30 Rev. 2.0 When you press FEED Button once again, Power Lamp flickers 6 times Error Lamp flickers once. ® Press MODE Button twice, Error Lamp flickers 3 times. And then the density has set to Density high. When you press FEED Button once again,...
  • Page 21 Porti-SC30 Rev. 2.0 * M16C , ARM ( NEW ) IrDA Version POWER Lamp ERROR Lamp MODE Option (Green) (Red) UART(RS-232C) Protocol UART(RS-232C) Communication Raw IrDA Port Protocol IrDA Standard IrDA 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps...
  • Page 22 Porti-SC30 Rev. 2.0 POWER Lamp ERROR Lamp Option (Green) (Red) No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute < Table 4 > http://www.woosim.com...
  • Page 23 Porti-SC30 Rev. 2.0 * M16C , ARM ( NEW ) Bluetooth Version POWER Lamp ERROR Lamp Option (Green) (Red) UART(RS-232C) Protocol UART(RS-232C) Communication Port Bluetooth Protocol Bluetooth 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit...
  • Page 24 Porti-SC30 Rev. 2.0 POWER Lamp ERROR Lamp Option (Green) (Red) No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute < Table 5 > http://www.woosim.com...

  • Page 25: Interface

    Receive Data Ground The Porti-SC30 printer has an UART(RS-232C or TTL), or USB interface and is connected by means of a 4 pin mini USB socket. In the following table, the signals present on the Mini USB socket are listed: ②...

  • Page 26: Infrared Data Communication

    Porti-SC30 Rev. 2.0 The PORTI-SC has a serial interface for bi-directional data exchange. The infrared port is the upper edge part of the left side. (Fig.3.2) 1) To use the PORTI-SC’s infrared port, a computer or Personal Digital Assistant (PDA) with IR port is required.

  • Page 27: Bluetooth

    Porti-SC30 Rev. 2.0 Category Specification Bluetooth Ver2.1 + EDR / Class2 (10m) Bluetooth Spec. Frequency Range 2.4GHz ISM BAND Data Transmission Rate 57600bps Fixed. Data bit 8 Data bit Fixed. Parity bit No parity Fixed. Stop bit 1 Stop bit Fixed.

  • Page 28: Using The Printer

    Porti-SC30 Rev. 2.0 Button - FEED : When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. - MODE : MODE Button is for use to change communication mode.

  • Page 29: The Self Test

    Porti-SC30 Rev. 2.0 The self test procedure will check most of the printer functions. For self test, turn on the power while holding down the FEED Button. The Self-Test checks the following : 1) Make sure paper roll has been installed properly.

  • Page 30: Consumable Parts

    Porti-SC30 Rev. 2.0 Type : Thermal Paper Paper width : 57mm Paper thickness : 60±5㎛ Outer diameter : Ø30mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has Near end mark printing on its near end is recommended.
