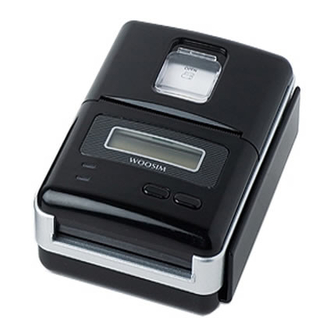

WOOSIM PORTI-SM40 Operator's Manual

Mobile printer
Hide thumbs Also See for PORTI-SM40:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
MODEL
All specifications are subjected to change without notice
PORTI-SM40

(Mobile Printer)

Rev. 2.0
WOOSIM SYSTEMS Inc.
#501, Daerung Technotown 3th,
448, Gasan-Dong, GeumChun-Ku,
Seoul, Korea
Tel : +82-2-2107-3700
Fax : +82-2-2107-3707
URL:
http://www.woosim.com
http://www.woosim.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PORTI-SM40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WOOSIM PORTI-SM40

Summary of Contents for WOOSIM PORTI-SM40

  • Page 1: Mobile Printer

    PORTI-SM40 MODEL (Mobile Printer) Rev. 2.0 WOOSIM SYSTEMS Inc. #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice http://www.woosim.com...
  • Page 2 Copyright ¨Ï2008 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. and may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.
  • Page 3 Porti-SM40 Rev. 2.0 ¦ Introduction The Porti-SM40 is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. The general features of Porti-SM40 printer are as follows: Pocket size(80.5¡¿113.5¡¿46mm)

  • Page 4: Operating Precautions

    Porti-SM40 Rev. 2.0 ¦ Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ● Do not install the printer in direct sunlight or such areas.
  • Page 5 Porti-SM40 Rev. 2.0 ¦ Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Table Of Contents

    Porti-SM40 Rev. 2.0 CONTENTS 1. Outline............................7 1.1. Model classifications........................7 1.2. Product Part Number System....................7 1.3. Specifications..........................8 2. Setting up the printer........................10 2.1. Printer & Accessories ......................10 2.2. Printer Features ........................11 2.3. Replacing paper roll........................ 13 2.4.

  • Page 7: Outline

    Porti-SM40 Rev. 2.0 PORTI–SM40 Model Interface None: UART/Bluetooth Power None : DC 8.4V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Example) 1. Porti-S40 Serial/Bluetooth Part No. ¢¡ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ¢¡ SC30/Z1...

  • Page 8: Specifications

    Porti-SM40 Rev. 2.0 Item Specifications Direct thermal line printing Print method 42cpl (MAX) Characters per line Character size Eng. : 9¡¿24dots, 12¡¿24dots Kor. : 16¡¿24dots, [24¡¿24dots] Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Optional Characters Greek, Japanese, Persian, Latin9 and Others upon request.
  • Page 9 Porti-SM40 Rev. 2.0 Item Specifications -10°C ~ 50°C (operating) Temperature -10°C ~ 70°C (storage) Environment conditions 30% - 80% (operating) Humidity 10% - 90% (storage) Mechanical 37,000,000 lines MCBF(Mean Cycle Between Failure) Head Approximately 50 Km < Table 1 >...

  • Page 10: Setting Up The Printer

    Porti-SM40 Rev. 2.0 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Battery pack Thermal roll paper PORTI-SM40 Battery charger adaptor ¡å OPTIONAL Battery holder Communication cable Car charger http://www.woosim.com...

  • Page 11: Printer Features

    Porti-SM40 Rev. 2.0 Part Name ¢º http://www.woosim.com...
  • Page 12 Porti-SM40 Rev. 2.0 Dimensions ¢º http://www.woosim.com...

  • Page 13: Replacing Paper Roll

    Porti-SM40 Rev. 2.0 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost.

  • Page 14: Power Supply

    Porti-SM40 Rev. 2.0 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A Avoid using power supply which its power capacity of power current is extremely high. ● NOTE : Before installing or removing the battery pack, ensure the printer is OFF.

  • Page 15: Recharging The Battery Pack

    Porti-SM40 Rev. 2.0 For recharging the battery pack, install the battery pack in the printer or the battery holder. Insert the battery charger adaptor to the charge connector of the printer or the battery holder. ● NOTE : While charging the printer, turn off the printer power.

  • Page 16: Set Operation Mode

    Porti-SM40 Rev. 2.0 Change the mode and option using the mode Code. l MODE button : changing Printer MODE status. (Error Lamp) l FEED button : changing OPTION status. [Example] The defaults of the printer are : UART / 9600 bps / 8 data bit / No parity /1 stop bit / Density low / Mark use...
  • Page 17 Porti-SM40 Rev. 2.0 When you press FEED button once. ® You will see present DENSITY mode in the LCD. ® Press MODE Button twice. And then the density has set to Density high. When you press FEED button once. ®...

  • Page 18: Uart(Rs-232C Or Ttl)

    Porti-SM40 Rev. 2.0 Printer Mode Option Mode No. Option No. (Mode Button) (Feed Button) UART UART (Protocol) Communication Port Bluetooth Bluetooth (Protocol) 9600 bps 19200 bps Baud Rate 34800 bps 57600 bps 115200 bps 7 Data bit Data Bit 8 Data bit...

  • Page 19: Interface

    Input Receive Data Ground The Porti-SM40 printer has a UART(RS-232C or TTL) interface and is connected by means of a 4 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: ●...

  • Page 20: Bluetooth

    Porti-SM40 Rev. 2.0 Category Specification Bluetooth V2.1 + EDR / Class2 (10m) Bluetooth Spec. Frequency Range 2.4GHz ISM BAND Data Transmission Rate 57600bps Fixed. Data bit 8 Data bit Fixed. Parity bit No parity Fixed. Stop bit 1 Stop bit Fixed.

  • Page 21: Smart Card Module

    Porti-SM40 Rev. 2.0 Contact Smart Card Reader Module for ISO/IEC-7816 Support Asynchronous Protocol T=0,T=1 Smart Card Connection Short Circuit Current Limitation 6KV ESD Protection on whole Smart Card Interface Connector : Friction Type with Smart Card presence detection 2 SAM (Security Application Module) EMV Level 1 Certified http://www.woosim.com...

  • Page 22: Communication Protocol Sequence

    Porti-SM40 Rev. 2.0 Host Command Module Execution Response 500ms timeout Host Command Command Command Module Command is Executio Host Command Command Error Module CheckSumEr Executio http://www.woosim.com...

  • Page 23: Using The Printer

    Porti-SM40 Rev. 2.0 Button - FEED Button : When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. - MODE Button : MODE Button is for use to change communication mode.

  • Page 24: The Self Test

    Porti-SM40 Rev. 2.0 The self test procedure will check most of the printer functions. For self test, turn on the power while holding down the FEED Button. The Self-Test checks the following : 1) Make sure paper roll has been installed properly.

  • Page 25: Consumable Parts

    Porti-SM40 Rev. 2.0 Type : Thermal Paper Paper width : 57mm Paper thickness : 60±5§- Outer diameter : Ø40mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has Near end mark printing on its near end is recommended.
