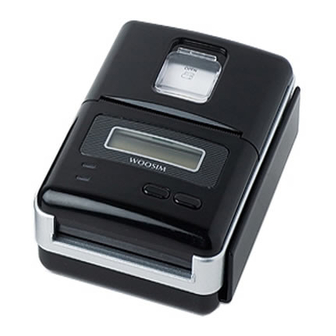

Page 1: Mobile Printer
PORTI-SM40 MODEL (Mobile Printer) WOOSIM SYSTEMS Inc. #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com http://www.woosim.com... -
Page 2: Copyright
Copyright ⓒ2008 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. and may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc. - Page 3 Introduction The Porti-SM40 is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. The general features of Porti-SM40 printer are as follows: Pocket size(80.5×113.5×46mm) Light weight(300g) for true mobility...
-
Page 4: Operating Precautions
Do not allow plastic film, erasers, or adhesive tape to touch the paper for long periods. ● Do not stack the thermal paper with diazo copies immediately after copying or wet-type copies. ● Do not use chemical glue. ● Always use the clean thermal paper. http://www.woosim.com... -
Page 5: Table Of Contents
4.1. General Spec........................... 21 4.2. Communication Protocol Sequence ..................22 4.2.1. Regular Operation ......................22 4.2.2. Irregular Operation (Communication Error) ..............22 5. Using the printer.......................... 23 5.1. Control panel.......................... 23 5.2. The self test..........................24 http://www.woosim.com... - Page 6 6. Consumable Parts........................25 6.1. Recommended paper....................... 25 6.2. Printing position........................25 http://www.woosim.com...
-
Page 7: Outline
2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported. But some of the interfaces are not supported according to the product and please contact us, if you have any questions regarding the interface. http://www.woosim.com... -
Page 8: Specifications
Smart card reader T=0, T=1 support / 2 SAM (Security Application Module) 128×32 Dots FSTN (Blue LED Backlight) Rechargeable 7.4V DC/ 1,100mAh (Li-ion) Battery 1 hour continuous printing Battery duration Input (100~250V AC, 50~60Hz) Battery charger Output(8.4VDC/0.8A), 4hours full charge time http://www.woosim.com... - Page 9 Item Specifications Temperature -20°C ~ 55°C (operating) Environment Humidity 0% - 95% (operating) conditions Mechanical 37,000,000 lines MCBF(Mean Cycle Head Approximately 50 Km Between Failure) http://www.woosim.com...
-
Page 10: Setting Up The Printer
& & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Battery Pack Paper Roll PORTI-SM40 Battery Charger ▼ OPTIONAL Extra Charger Communication Cable Car Charger http://www.woosim.com... -
Page 11: Printer Features
▶ Part Name http://www.woosim.com... - Page 12 ▶ Dimensions http://www.woosim.com...
-
Page 13: Replacing Paper Roll
2. Open the paper cover by placing your fingers under the paper cover lock and pull a paper cover lock open. 3. Insert a new paper roll as shown. 4. Tear the excess paper off using the edge of paper door as a tear bar. http://www.woosim.com... -
Page 14: Power Supply
- Insert the Battery pack in the direction of the arrow. ② Reverse the order to remove the battery pack. ③ The battery pack install into extra charger. - Insert the Battery pack in the direction of the arrow. http://www.woosim.com... -
Page 15: Recharging The Battery Pack
The recharging time depends on the voltage level and ambient temperature of the battery. Normally, if takes about 4 to 5 hours to recharge a battery pack. ● You must use only the supplied adapter. ● Red Lamp : charging the battery. Green Lamp: charging is finished. http://www.woosim.com... -
Page 16: Set Operation Mode
(The data bit has set to 7 data bit.) Press FEED button one time. → You will see present PARITY BIT mode in the LCD. → Press MODE Button 2 times. (The parity bit has set to Even parity bit.) http://www.woosim.com... - Page 17 The printer will print out the mode status which has modified. (Bluetooth/38,400 BPS/ 7 DATA BIT/Even Parity/ 2 STOP BIT / Density HIGH) If the status is not correct, please try it again according to the procedure. http://www.woosim.com...
-
Page 18: Uart(Rs-232C Or Ttl)
No Parity Odd Parity Parity Bit Even Parity 1 Stop Bit Stop Bit 2 Stop Bit Low Density Medium Density Density High Density No use Mark Sensor Low Sensor Medium 1 Sensor Sensor Medium 2 Sensor High <Table 1> http://www.woosim.com... -
Page 19: Interface
The Porti-SM40 printer has a RS-232C or TTL interface and is connected by means of a 4 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: Pin No. Name Direction Function... -
Page 20: Bluetooth
2407 2417 2427 2437 2447 2457 2467 2477 2408 2418 2428 2438 2448 2458 2468 2478 2409 2419 2429 2439 2449 2459 2469 2479 2410 2420 2430 2440 2450 2460 2470 2480 2411 2421 2431 2441 2451 2461 2471 http://www.woosim.com... -
Page 21: Smart Card Module
Contact Smart Card Reader Module for ISO/IEC-7816 Support Asynchronous Protocol T=0,T=1 Smart Card Connection Short Circuit Current Limitation 6KV ESD Protection on whole Smart Card Interface Connector : Friction Type with Smart Card presence detection 2 SAM (Security Application Module) EMV Level 1 Certified http://www.woosim.com... -
Page 22: Communication Protocol Sequence
Host Command Module Execution Response 500ms timeout Host Command Command Command Module Command is Executio Host Command Command Error Module CheckSumEr Executio http://www.woosim.com... -
Page 23: Using The Printer
-ERROR (Red) : Indicated a fault condition or a printer error. (i.e : no paper, paper cover opened. etc.) - LCD will display most of the printer status. (i.e : current printer status, paper out, indicated remaining battery, Bluetooth connection etc.) http://www.woosim.com... -
Page 24: The Self Test
ROM version and the communication method setting. 3) After printing the current printer status, Self-Test will print a pattern using the built-in character set. 4) The Self-Test automatically ends. The printer is ready to receive data as soon as it completed the self test. http://www.woosim.com... - Page 25 2. Chemicals or oil may change the color of paper, or printed Characters may fade. 3. Change of paper color starts from approx 70 ℃. Pay attention to heat, humidity and sun light. 4. Color of paper may be changed by being scratched by nail or hard metal, etc http://www.woosim.com...
- Page 26 ㆍConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. ㆍConsult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user's authority to operated the equipment under FCC rules. http://www.woosim.com...
- Page 27 This Device has been evaluated to comply with RF exposure requirement for general use limit in portable condition. It is safe to be used in sold condition. http://www.woosim.com...
