Summary of Contents for WOOSIM PORTI-SWC40

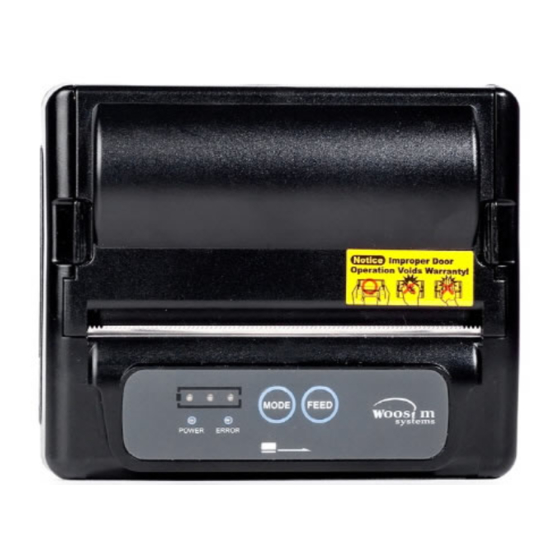

- Page 1 PORTI-SWC40 MODEL (3inch Mobile Printer) WOOSIM SYSTEMS Inc. Add : #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice http://www.woosim.com...
- Page 2 8 by Woosim System Inc. ⓒ All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. and may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.
- Page 3 Introduction The PORTI-SWC40 is suitable designed for use with a growing variety of mobile devices Bluetooth/Serial interfaces make the PORTI-SWC40 the perfect comrade for applications such as point of transaction warehousing, distribution, point of sales, hospitality, gaming and healthcare. The general features of PORTI-SWC40 printer are as follows: Pocket size (107.4mm x 88.5mm x 45mm).
-
Page 4: Using The Printer
The AC adapter, the battery charger and the battery pack may become warm when in use. This is normal and is not a malfunction. ● When the battery pack is used at low temperature, the length of time the printer can be used may be shortened. http://www.woosim.com... - Page 5 Do not allow plastic film, erasers, or adhesive tape to touch the paper for long periods. ● Do not stack the thermal paper with diazo copies immediately after copying or wet-type copies. ● Do not use chemical glue. ● Always use the clean thermal paper. http://www.woosim.com...
- Page 6 4. Using the printer ..........................21 4.1. Control panel ........................21 4.2. Self test ..........................22 5. Consumable parts .......................... 23 5.1. Recommended paper ......................23 5.2. Printing position ........................23 6. Channel organized table ........................ 24 6.1. Bluetooth channel organized table ..................24 http://www.woosim.com...
-
Page 7: Outline
PORTI-SWC40 Model Name Interface None : Bluetooth/UART Power None : DC 8.4V Model name Interface Spec. Wired Wireless UART Bluetooth SC30 IrDA None RS-485 Parallel None Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported. -
Page 8: Specifications
Rechargeable 7.4V DC, 1800mAh (Li-ion) Battery duration 1 hour continuous printing Input (100~250VAC, 50~60Hz) Battery Charger Output(8.4VDC/0.8A), 4hours full charge time Temperature -20°C ~ 55°C Environment Conditions Humidity 0% ~ 95% Mechanical 37,000,000 lines MCBF (Mean Cycle Between failure) Head Approximately 50 Km http://www.woosim.com... - Page 9 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Battery Pack Roll Paper PORTI-SWC40 Battery Charger ▼ OPTIONAL Extra Charger Communication Cable http://www.woosim.com...
- Page 10 http://www.woosim.com...
-
Page 11: Dimensions
http://www.woosim.com... - Page 12 2. Open the paper cover using finger on both side of printer, and remove the remaining paper. 3. Insert the paper roll as shown. Tear the excess paper off using the edge of paper door as a tear bar. http://www.woosim.com...
-
Page 13: Power Supply
- Turn the printer power off and push the battery pack lock and to lift up the direction of the arrow. ③ The battery pack install into extra charger. - Insert the Battery pack in the direction of the arrow. http://www.woosim.com... -
Page 14: Recharging The Battery Pack
The recharging time depends on the voltage level and ambient temperature of the battery. Normally, if takes about 4 to 5 hours to recharge a battery pack. ● You must use only the supplied adapter. ● Red Lamp : charging the battery. Green Lamp: charging is finished. http://www.woosim.com... -
Page 15: Interface
(The baud rate has set to 57,600 bps) Press FEED Button one time, Power Lamp twinkles 3 times and Error Lamp twinkles 2 times. → Press MODE Button one time, Error Lamp twinkles one time. (The Data Bit has set to 7 data bit) http://www.woosim.com... -
Page 16: Bluetooth
The printer will print out the mode status which has modified. (Bluetooth / 57600 bps / 7 data bit / Odd parity / 2 Stop bit / density high ) If the status is not correct, please try it again according to the procedure. http://www.woosim.com... - Page 17 115200 bps 7 Data bit Data Bit 8 Data bit No Parity Parity Bit Odd Parity Even Parity 1 Stop bit Stop Bit 2 Stop bit Density Low Density Density Medium Density High No use Mark Medium1 Sensor Medium2 High http://www.woosim.com...
- Page 18 POWER Lamp ERROR Lamp Option (Green) (Red) No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute http://www.woosim.com...
- Page 19 The PORTI-SWC40 printer has an UART interface and is connected by means of a 4 pin mini USB socket. In the following table, the signals present on the Mini USB socket are listed: Pin No. Name Direction Function Output Transmit Data...
- Page 20 Below 3mWMHZ Output GFSK SYSTEM / PLL Modulation type/rash way Notice If the quantity of data what printed at once is more than 10,000byte on Bluetooth communication, it would cause the buffer to overflow and the data to get damaged. http://www.woosim.com...
- Page 21 (i.e : no paper, paper cover opened. etc.) - Battery Power : These lamps(Green) indicated the battery power remaining. The battery gain in quantity and these lamps are on the decrease. If so, you must recharge the battery by using the battery charger. http://www.woosim.com...
- Page 22 ROM version and the communication method setting. 3) After printing the current printer status, Self-Test will print a pattern using the built-in character set. 4) The Self-Test automatically ends. The printer is ready to receive data as soon as it complete the Self-Test. http://www.woosim.com...
- Page 23 2. Chemicals or oil may change the color of paper, or printed characters may fade. 3. Change of paper color starts from approx. 70 ℃. Pay attention to heat, humidity and sun light. 4. Color of paper may be changed by being scratched by nail or hard metal, etc. http://www.woosim.com...
- Page 24 2407 2417 2427 2437 2447 2457 2467 2477 2408 2418 2428 2438 2448 2458 2468 2478 2409 2419 2429 2439 2449 2459 2469 2479 2410 2420 2430 2440 2450 2460 2470 2480 2411 2421 2431 2441 2451 2461 2471 http://www.woosim.com...
- Page 25 ㆍConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. ㆍConsult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user's authority to operated the equipment under FCC rules. http://www.woosim.com...
- Page 26 This equipment should be installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC http://www.woosim.com...
