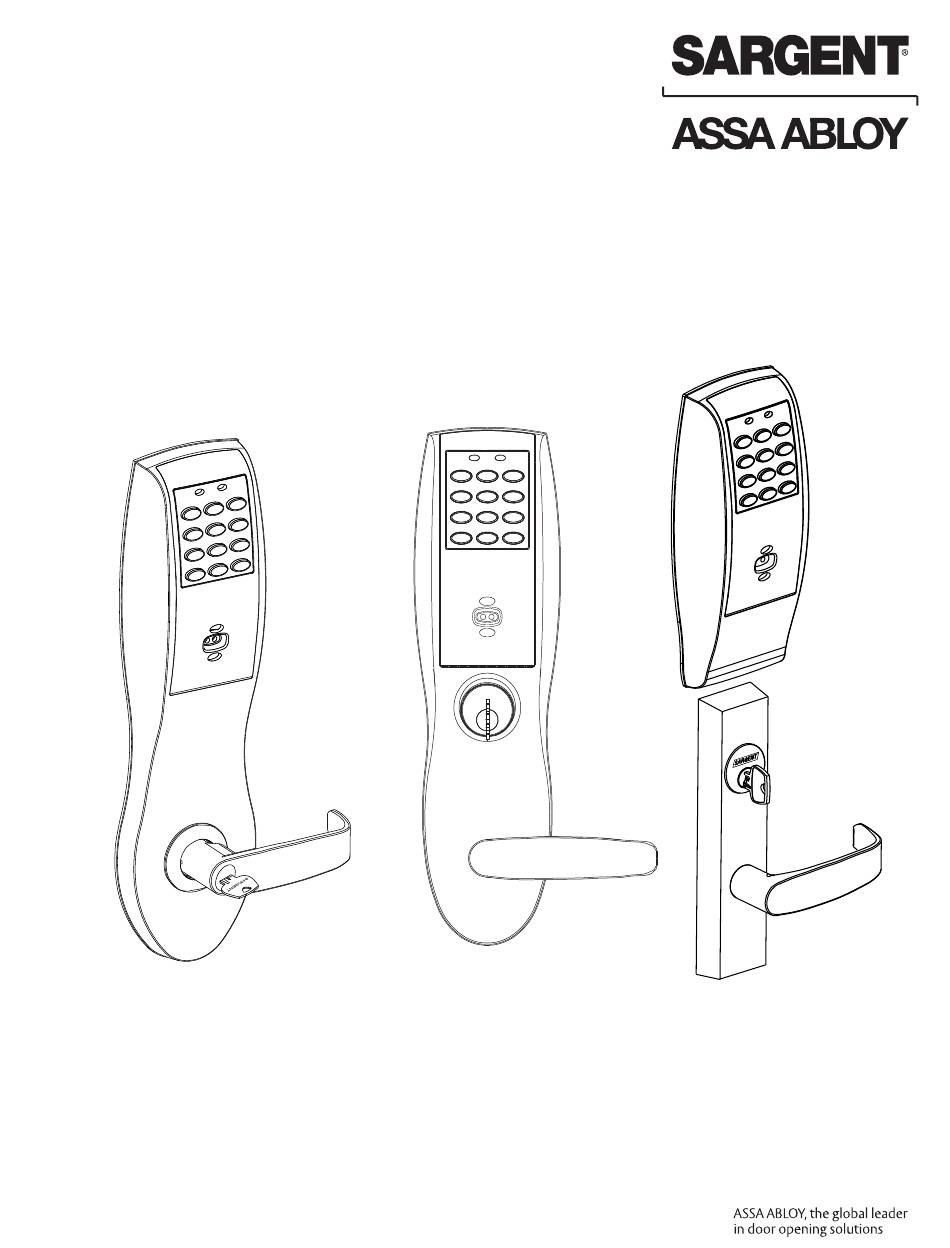

- Page 1 Keypad Programming Instructions for the Profile Series LK and v.G1.5 Locks A7857A Copyright © SARGENT Manufacturing. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing is prohibited.
-
Page 2: Table Of Contents
Table of Contents Page LK Programming ................1-4 Transaction Log for LK..............4-5 G1-LU, G1-PK, G1-TU, G1-TP Programming ........5-8 G1-PA and G1-TA Programming............9 Chain Programming................10 Log Sheet for Keypad Programming..........11 Important • Profile Series v.G1.5 controllers have replace v.G1 controllers (v.G1 is no longer available). •... - Page 3 Keypad Programming Instructions for the Profile Series LK The LK Keypad Lock can support 100 users. Each user is assigned a User Number in addition to the code used for entry. • SofLink ™ Plus applications software must be used with (G1-PA & G1-TA) controller for programming •...
-
Page 4: Lk Programming
Keypad Programming Instructions for the Profile Series LK Lock LK Programming (100 Users) To determine programming steps for your lock: • If your controller has an LK label,, use the programming below. • If your controller has a "G1.5" label and a keypad, refer to Section 3; •... - Page 5 Keypad Programming Instructions for the Profile Series LK Lock Enter A One Time User Code 99# Master Code* or Supervisory Code* Yellow LED blinks 50# 5# (User Number 04-100)# Yellow LED blinks User Code (1-6 digits)* Yellow LED blinks quickly User Code (1-6 digits)* Yellow LED blinks slowly (If solid, see note)
-
Page 6: Transaction Log For Lk
Keypad Programming Instructions for the Profile Series LK Lock To Reset/Clear Transaction Log 99# Master Code* Yellow LED blinks 76# 00000# 00000# Yellow LED blinks Yellow LED blinks quickly Yellow LED blinks slowly Yellow LED goes out (If solid, see note) To Delete A User 99# Master Code* Yellow LED blinks... -
Page 7: G1-Lu, G1-Pk, G1-Tu, G1-Tp Programming
Keypad Programming Instructions for the Profile Series LK/v.G1.5 Lock Sequence Number • Single digit - 0-9 • Latest transaction - 0 • Oldest transaction - 9 User Number • Three digits - 001 through 099 • User numbers assigned at time of programming Transaction Descriptions To LED location... - Page 8 Keypad Programming Instructions for the Profile Series v.G1.5 Lock To determine programming steps for your lock: If your controller has a “G1.5” label with keypad, use the programming below; if no keypad, LU PK refer to Section 4. If your controller has an LK label, turn to LK programming in Section 1. For RF Technology products (G1-TU, G1-TP, G1-TA), please take note of the following advisories: Advisory 1: There is a time delay period between initially depressing the RF FOB button and the actuation of the lock.
- Page 9 Keypad Programming Instructions for the Profile Series v.G1.5 Lock To Enter the Emergency Code 99# Master Code* Yellow LED blinks 50# 7# (User Number 03-2000)# Yellow LED blinks User Code (1-6 digits)* Yellow LED blinks quickly User Code (1-6 digits)* Yellow LED blinks slowly (If solid, see note) Yellow LED goes out Enter a Lock Out User Code...
- Page 10 Keypad Programming Instructions for the Profile Series v.G1.5 Lock Reset Master Code back to factory default (1234) and retain all other User codes 99# Master Code* Yellow LED blinks 40# 00000# 00000# Yellow LED blinks Yellow LED blinks quickly Yellow LED blinks very fast for 10 sec., then slow Yellow LED goes out Note: The factory default Master Code (1234) must be changed (i.e., “Forced Change”) prior to adding any other users.
-
Page 11: G1-Pa And G1-Ta Programming
Keypad Programming Instructions for the Profile Series v.G1.5 Lock To Enable/Disable A User 99# Master Code* Yellow LED blinks 56# 0# (Enable) or 1# (Disable) (User Number 03-2000)# Yellow LED blinks Yellow LED blinks quickly Yellow LED blinks slowly (If solid, see note) Yellow LED goes out To Delete A User 99# Master Code*... -
Page 12: Chain Programming
Keypad Programming Instructions for the Profile Series LK/v.G1.5 Lock Chain Programming When programming multiple User Numbers and Codes into the LK or G1.5 with keypad, it is not necessary to leave and re-enter the programming Mode (50) for each entry. Multiple entries may be chained together and the three different types of user codes (Standard, Passage and One Time) may be mixed. -
Page 13: Log Sheet For Keypad Programming
Keypad Programming Instructions for the Profile Series LK/v.G1.5 Lock Supplemental – Individual “Door” Log Sheet for keypad programming Lock Model: Door Name: Location: Table 1: Main Codes - User Programmed “Door” Log Function User Number Default Code User Programmed Code Master Code 1234* Supervisory Code... - Page 14 Copyright © SARGENT Manufacturing. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing is prohibited. ASSA ABLOY is the global leader in door opening solutions, dedicated to A7857A 1/08 satisfying end-user needs for security, safety and convenience.
