- Page 1 XC Series Cylinders Copyright © 2004-2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
-
Page 2: Table Of Contents
Cylinders XC Series Table of Contents Key Management Software Features, Benefits & Components Bored & Auxiliary Lock Cylinders Mortise/Rim Cylinders, Rosettes & Blocking Rings 11-6300 Series Large Format Interchangeable Cores (Removable) 11-6300 Cylinder/Lock Conversion Parts, Tools & Accessories 11-7P-7300B Small Format Interchangeable Cores Construction Master Keying Key Control Comparison &... -
Page 3: Key Management Software
Key Management Software XC Series SARGENT’S KeyWizard 5.5 Software Package Tracks Multiple Key Systems Including Keys, Keyholders, Locations and Hardware Information ™ This comprehensive key management software package was developed for locksmiths and end-users to track detailed information. The program features easy to navigate, non-cluttered screens and uses a format similar to Microsoft Outlook ®... -
Page 4: Features, Benefits & Components
Features, Benefits & Components XC Series The XC Series offers a new dimension in higher security cylinders and key control. The system features specially designed, patent protected keys which operate XC Cylinders and Conventional cylinders in one key system. XC Series cylinders can be integrated into most existing SARGENT systems (contact key records for compatibility) or as a new system. Multiple security levels are available to provide key control, convenience and service that meet the demands of each installation. -
Page 5: Bored & Auxiliary Lock Cylinders
Bored & Auxiliary Lock Cylinders XC Series Shell & Slide Assembly Plug Assembly Auxiliary Locks (Deadbolts) Bored Locks Complete Shell & Slide Complete Shell & Slide Locks 6 pin Assembly Plug Assembly Assembly Locks 6 pin Assembly Plug Assembly Assembly T-Zone (11 Line) 11-C11-1 (13-4562) 13-4332 13-4334 11-C460-1 (13-4578) 13-4329 13-4337 11-C460-2 (13-4580) 13-4329 13-4337 10 Line... -
Page 6: Mortise/Rim Cylinders Rosettes & Blocking Rings

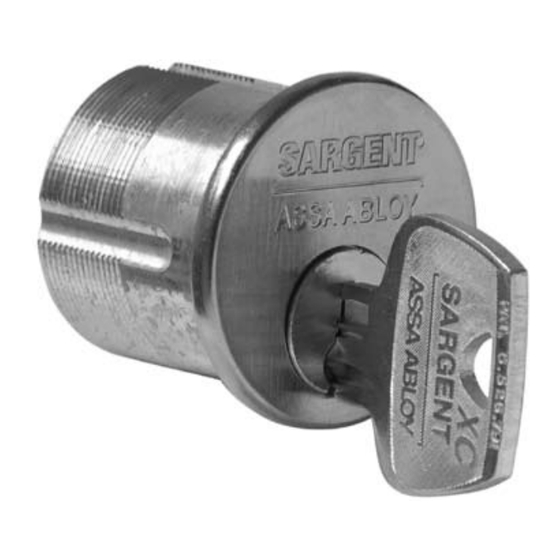

Mortise/Rim Cylinders Rosettes & Blocking Rings XC Series 11-40 Series Mortise Cylinders Shell & Slide Complete Dim. X Length Shell & Slide Assembly 6 pin Assembly Under Cylinder Head Plug Assembly Assembly 11-41 1-1/8” (29mm) 13-4314 13-4301 Plug 11-42 1-1/4” (32mm) 13-4315 13-4302 Assembly 11-43 1-3/8” (35mm) 13-4316 13-4303 11-44 1-1/2” (38mm) 13-4317 13-4304 11-46 1-3/4”... -
Page 7: 11-6300 Series Large Format Interchangeable Cores (Removable)
11- 6300 Series Large Format Interchangeable Cores (Removable) XC Series SARGENT XC 6300 Large Format Interchangeable Core (Removable) Cylinders offer a quick and easy method to change cylinders for increased security. The lock does not need to be removed from the door to rekey the opening. The XC core offers a patented cylinder option for full size LFIC (removable) core SARGENT cylinders. Note: The XC cores will only work in SARGENT hardware ordered to accept them with the 11-60 or 11-63- or will need to upgraded in the field. Mortise and rim cylinder housings made with shorter version posts to accept the 11-6300 core can be used without modification. Not all lever style bored locks will accept this 11-6300 core. Only products with removable tail pieces that insert in the back of the core are compatible by using with new tail pieces. Existing 480 Deadbolt Series will require conversion. See page 6 for compatibility and parts needed to upgrade exiting hardware to accept the 11-6300 core. -
Page 8: 11-6300 Cylinder/Lock Conversion Parts, Tools & Accessories
11-6300 Cylinder/Lock Conversion Parts Tools and Accessories XC Series 60-34 Rim, 8-Line and 480 Series Conversion Parts 758/858 Padlocks, 11 Line (T-Zone), 10, 7, 6500 Line Note: Only locks with removable Tail Pieces can be upgraded to 11-6300 Cores Kit # 13-5178 for 11-63-34 Rim Cylinders Kit # 08-5265 Kit # 17-2632 for Kit # 11-5003 for for 11-63-8-Line Knobs Padlock tailpiece pack 11-Line tailpiece pack Kit # 16-2508 for Cam Assembly for 11-63-Deadbolts Kit # 10-3429 for 10-Line, 7-Line & 6500 Cams for 11-6300 Large Format Interchangeable tailpiece pack (Cylinder Not Included) (Removable) Core Mortise Cylinders (Factory assembled to housing) 436-1 Slide Block Kit... -
Page 9: 11-7P-7300B Small Format Interchangeable Cores
11-7P-7300B Small Format Interchangeable Cores XC Series 11-7P-7300B Series Small Format Interchangeable Core (SFIC) Key Blanks/Cut Keys Cylinders: 7 Pin Only (Nickel Silver) • S ARGENT XC SFIC Cylinders are patented • Available in quantities of 100 each keys and cylinders for increased security. • Packed 50 per box With a control key, these cylinders can • SARGENT Keyways: 4A, Restricted 4B be easily removed for rekeying. It is • Order 11-6285B x Keyway unnecessary to remove the lock from a door to rekey the opening. -
Page 10: Construction Master Keying
Construction Master Keying Conventional XC Series Cylinders ordered with construction keying will Orders with 21- will have all change keys receive the 21- option Lost Ball feature. With shipped separately from hardware. this option, construction keying is obtained • 2 1- is not available with removable core without the nuisance of going back to each (5100, 6300 or 7300) cylinder and removing the construction split • U se 11-72 option for construction keying for... -
Page 11: Key Control Comparison & Key Blanks
Key Control Comparison & Key Blanks XC Series XC vs. Standard Keyway Control NOTE: XC keys and master keys will operate non-XC cylinders. Chart shows how XC key is fully compatible with non-XC cylinders Master Sections Key Blank Key Sections Plug Key Sections LA family shown above (also available in SARGENT R Multiplex family). SARGENT Key Blanks Small Format Interchangeable Core Keyways Master Key Section (6 Pin) Day or Change Key (6 Pin) Master/Day/Change Key (7 Pin only) Catalog Number 11-X6270 Catalog Number 11-X6275 Catalog Number 11-X7285B x keyway SARGENT 4A SARGENT 4B (Restricted)* * Pre approval required by SARGENT key record department LE RE LG RG • Packed 50 per box • Order by Catalog Number x Keyway 1-800-727-5477 • www.sargentlock.com... - Page 12 Cylinders & Components XC Series Visual Key Control (Stamping) To allow for easier key and cylinder identification, SARGENT offers the option for permanent stamping of keys and/or cylinder with industry standard alpha-numeric keyset symbols. Non-visual key control stamped change (day) keys include bitting numbers as standard, (Item A) unless specified in keying order lead sheet submitted with order requesting to be omitted and key set substituted. SFIC and Signature change keys are stamped with key set symbols as standard. Master level keys do not include bitting numbers. Master level keys include system register numbers stamped on the first line, and the standard visual key control designations on the second line (Item B).
- Page 13 Architectural Specifications How to Order XC Series Architectural Specifications 2.0 Cylinders, Key, and Keying – Standard Cylinders and 6300 Large Format Interchangeable Core (Removable) A. Acceptable Manufacturer and Series (No Substitutions): Manufacturer Series B. P rovide patented cylinders and LFIC cores that require SARGENT a patented key which are protected from unauthorized manufacture and distribution. C. T he key design and tolerances shall permit the cutting of keys with standard code or duplicating machines. The requirement for a single-purpose or keyway-specific cutting or duplicating machine shall not be allowed. D. The key design and tolerances shall permit the use of keys and cylinders in existing key systems having similar keyways and sections. E. Provide 6 masterkeys for each masterkey set. Provide 2 change keys for each lock. Stamp keys “DO NOT DUPLICATE”. F. K ey blanks shall only be shipped to end-user locations upon written documentation from authorized purchasing personnel and for specified number of keys only.
- Page 14 The company’s customer base includes commercial construction, institutional, and industrial markets. Copyright © 2004–2010 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
