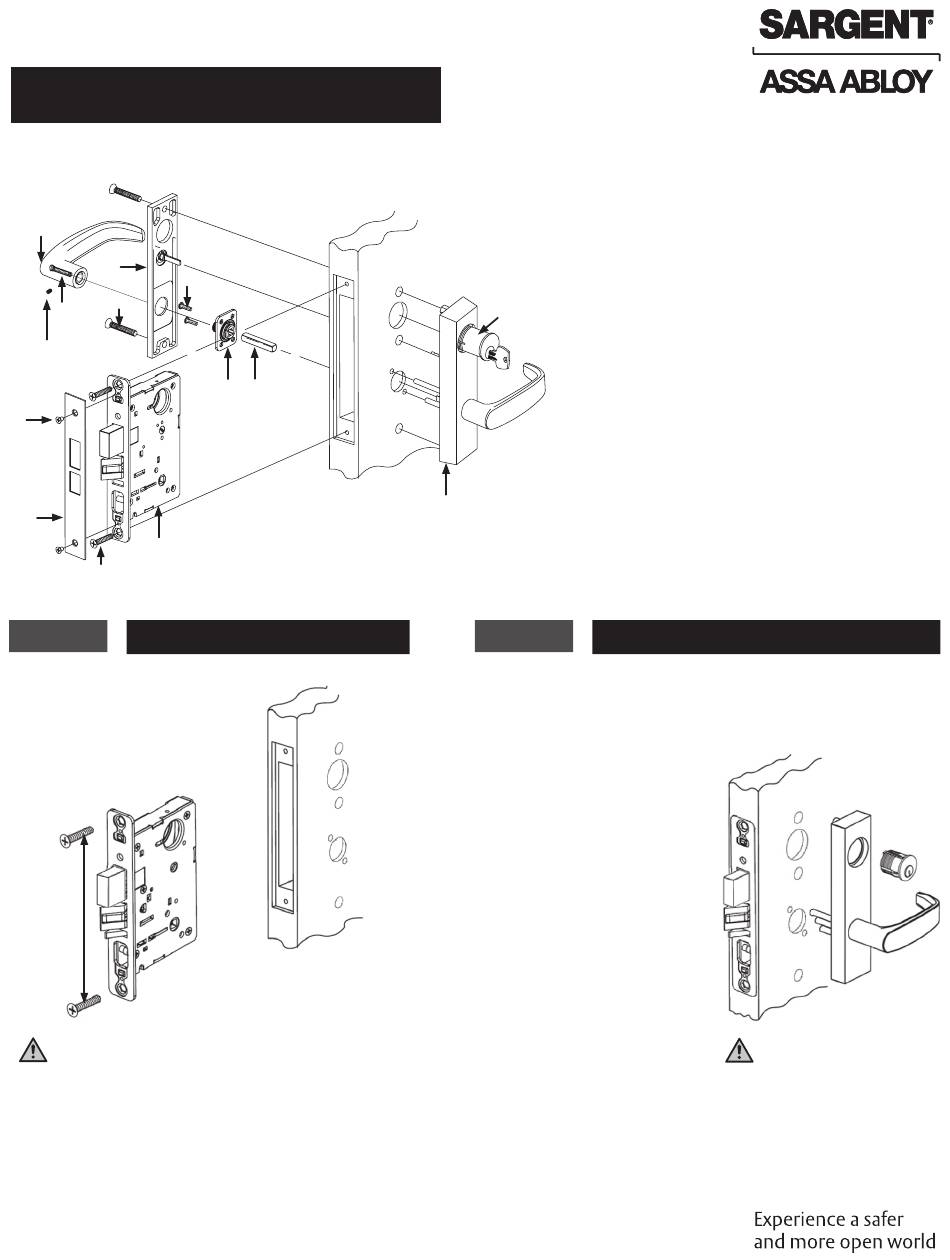

Assa Abloy SARGENT 8200 Series Installation Instructions

Installation Instructions
8200 Series Mortise Locks
with Freewheeling Escutcheon Trim (FE)
1
5
6
4
2
3
11
12
14
13
Refer to the SARGENT template 4500 for door preparation information.
1
Install Lockbody
Insert lockbody into mortise cutout.
Hold loosely in place
with (2) lockbody screws.
Do not tighten screws fully
at this time.
Lockbody
Screws
WARNING
This product can expose you to
lead which is known to the state of
California to cause cancer and birth
defects or other reproductive harm.
For more information go to www.
P65warnings.ca.gov.
1-800-727-5477 • www.sargentlock.com
Copyright © 2005, 2008, 2010, 2016, 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the
express written permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
INSIDE OF
DOOR
7 8
OUTSIDE
OF DOOR
Note: Keep door open
while installing
OUTSIDE
Parts Description
OF DOOR
1.
2.
3.
10
4.
5.
6.
7.
8.
9.
10. Cylinder
11. Screws (2) (#8-32 x 1/4")
12. Front Plate
13. Lockbody screws (2) (#12 x 1-1/4")
14. Lockbody
9
2
Install Outside Escutcheon Assembly
A. With outside lever horizontal, carefully insert the mounting posts through
the door and lockbody. Make sure the spindle is properly engaged in the lock.
Outside escutcheon assembly should be flush with door surface.
If cylinder is not included in
this function, proceed to step 3.
B. Screw cylinder into lockbody
until flush with escutcheon face.
Inside Lever
Spring
Set screw
Through-bolt Screws (2) (1/4" - 20 x 1-3/4)
Inside Escutcheon Plate
Screws & Lockwashers (2) (#8-32 x 5/8")
Adapter & Plate Assy.
Lever spindle
Outside Escutcheon Assembly
WARNING
Attention Installer: Improper
installation may result in dam-
age to the product and void the
factory warranty.
A7334-8 11/23
OUTSIDE
OF DOOR
