Drill Holes - Perlesmith PSLTK2 Manual

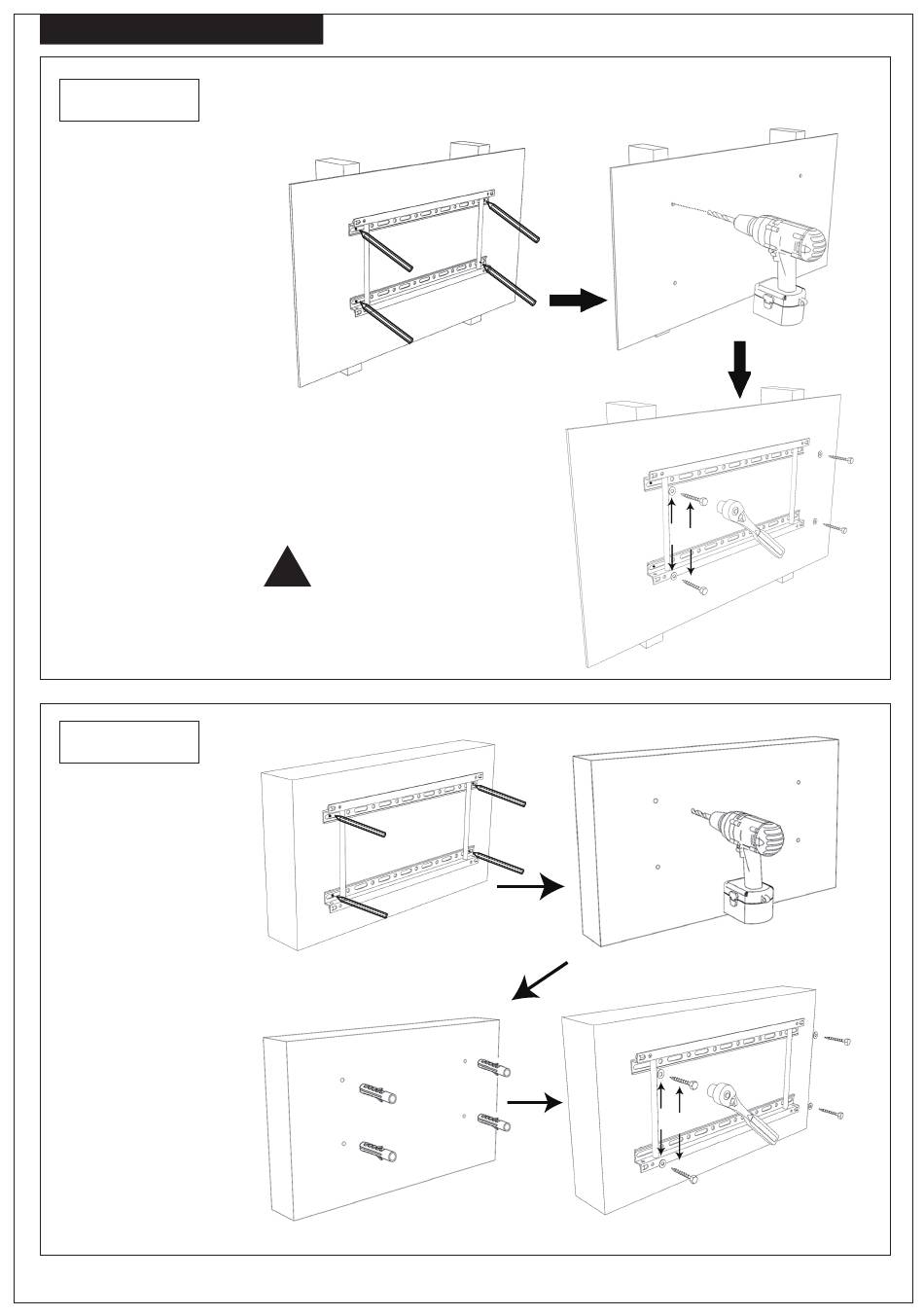

STEP5 Wall Plate Install
A : Wood Stud
B : Concrete
Mark Holes
Install Screws
！
CAUTION! Over tightening lag bolts
may cause heads to snap off
Mark Holes
Use Wall Anchors
8mm Drill bit
Secure Mount
4

Drill Holes

5mm Drill Bit
3mm Drill Bit
W3 W1
Drill Holes
10mm Drill bit
W3 W1
CAUTION! Over tightening lag bolts
may cause heads to snap off
