Hubner U-ONE-Compact UOC40 Configuration Manual

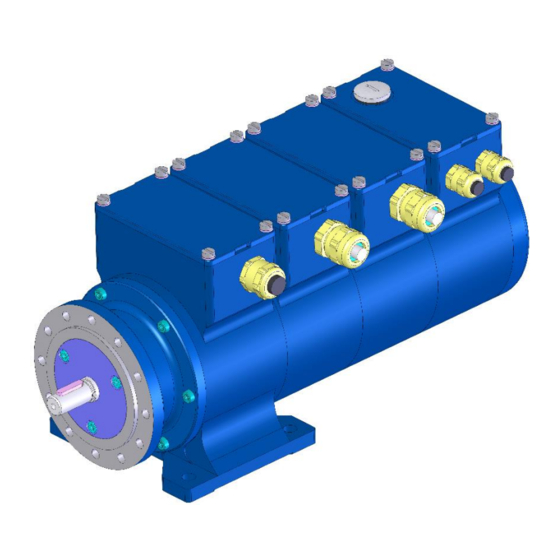

Universal-encoder-system and electronic position switch
Hide thumbs Also See for U-ONE-Compact UOC40:
Table of Contents

Advertisement

Quick Links

Download this manual
English
Universal-Encoder-System
U-ONE
Electronic Position Switch ERC40
For the following modules:
ECU C
ERC C-R (Module position switch with positively driven
EGS C-R (Module overspeed switch with positively driven
Read the configuration manual prior to assembly,
starting installation and handling!
Keep for future reference!
Translation of the original configuration manual ECU C
ID 74539
Configuration manual
®
-Compact UOC40
and
(Module Control Unit)
contacts)
contacts)
issued November. 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U-ONE-Compact UOC40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hubner U-ONE-Compact UOC40

Summary of Contents for Hubner U-ONE-Compact UOC40

  • Page 1 English Configuration manual Universal-Encoder-System ® U-ONE -Compact UOC40 Electronic Position Switch ERC40 For the following modules: ECU C (Module Control Unit) ERC C-R (Module position switch with positively driven contacts) EGS C-R (Module overspeed switch with positively driven contacts) Read the configuration manual prior to assembly, starting installation and handling! Keep for future reference! Translation of the original configuration manual ECU C...
  • Page 2 Johannes Hubner Fabrik elektrischer Maschinen GmbH. Subject to errors and changes due to technical improvements. Copyright © Johannes Hubner Fabrik elektrischer Maschinen GmbH. All rights reserved. UOC40_ERC40_ECU-Konfigmanual-en_R3...

  • Page 3: Table Of Contents

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C Table of contents 1 Generally ......................... 4 Abbreviations and terminology used ..................4 System requirements ........................4 2 Installing the software ....................4 Installing the driver manually ...................... 5 Manual driver installation under Windows XP SP3 ..............

  • Page 4: Generally

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 1 Generally ® The universal encoder system U-ONE -Compact UOC 40 and the electronic position switch ERC 40 is referred to as UOC 40 / ERC 40 in the following documentation. ®...

  • Page 5: Installing The Driver Manually

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 2.1 Installing the driver manually PLEASE NOTE! You must log into a user account with administrator rights to install the software. Ensure all programs are closed. If it is necessary to install the driver manually, depending on your operating system, please check the following steps.

  • Page 6: Manual Driver Installation Under Windows Xp Sp3

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 2.2 Manual driver installation under Windows XP SP3 Fig. 2-4: Software Installation XP SP3 Now select the installation source via “Browse” and point to path of your installation, there select the folder drivers.

  • Page 7: Setting Up Uoc 40 / Erc 40

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 3 Setting up UOC 40 / ERC 40 Allow sufficient time to plan the integration and configuration of the UOC 40 / ERC 40. Please remember that planning and configuration errors can put people at risk.

  • Page 8: Software Description Us42Pro

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 4 Software description US42Pro In this chapter you will learn how to configure the UOC 40 / ERC 40 in its respective device combination using the configuration software US42Pro. For the purpose of clarity the user in- terface is divided up into different sections.

  • Page 9: User Interface Head Section

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 4.1.1 User interface head section The menu bar containing basic commands to operate the software is located in the head section. 4.1.2 Pulldown menu: File  Import Parameters ...

  • Page 10: Pulldown Menu: File  Offline

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 4.1.5 Pulldown menu: File  Offline In offline mode, a device parameter set can be created without UOC 40 / ERC 40 as follows:  A virtual UOC 40 / ERC 40 is created by entering the type designation.

  • Page 11: Pulldown Menu: Options  Firmware Update

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C Level 1: Tester (password level 1) On this level the following functions are available in addition to those on level 0: - Perform test of switch - Generate test logs Level 2: Admin (password level 2)

  • Page 12: Pulldown Menu: Options  Reset To Factory Settings

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 4.1.10 Pulldown menu: Options  Reset to factory settings All parameters and the UOC 40 / ERC 40 will be deleted and reset to factory settings. Factory settings: Password level1 huebner1...

  • Page 13: Pulldown Menu: Options  Determine Calibration Factor

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 4.1.12 Pulldown menu: Options  Determine calibration factor see chapter 5.3.2 4.1.13 Pulldown menu: “Analysis”  switch test It is possible to alter the switch status by means of a switch test incorporated in the configuration software US42Pro.

  • Page 14: Pulldown Menu

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 4.1.14 Pulldown menu „?“  Info Displays the software version and Johannes Hubner contact details.  Help Opens the current configuration data in PDF format.  Documentation Opens the folder containing the UOC 40 / ERC 40 documentation.

  • Page 15: Fault Memory

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 4.1.18 Fault memory Memory Time: Time of error occurrence (Operating hours) The error memory is a ring memory and can accommodate 100 error entries. Internal er- rors should be sent to the manufacturer for analysis.

  • Page 16: Configuring Uoc 40 / Erc 40

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C Configuring UOC 40 / ERC 40 You must first calibrate the position system before configuring UOC 40 / ERC 40 (chapter 5.3). Device calibration and device configuration operations are only possible on the password level “Admin”.

  • Page 17: Calibrating The Position System

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 5.3 Calibrating the position system To calibrate the position system (adapt the internal device processing to mirror actual conditions at the place of installation) it is necessary to determine the system limits, cali- bration point, calibration factor and unit.

  • Page 18: Calibration

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 5.3.1 Calibration 1. Select the desired unit via the pulldown menu. 2. Enter the values for the system limits and the calibration point (preset). The following constraint applies: Lower system limit <...

  • Page 19: Saving Configuration- Or Parameterisation Data In The Uoc 40 / Erc 40

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 5.4 Saving configuration- or parameterisation data in the UOC 40 / ERC 40 All entries are formally checked prior to data transmission. Incorrect entries are highlighted red and data transmission to the UOC 40 / ERC 40 are prevented.

  • Page 20: Functions

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 6 Functions 6.1 ECU C module The ECU C module (Control Unit) is the central control unit of the UOC 40 / ERC 40. To assign the module a user-defined designation click the symbol .

  • Page 21: Digital Outputs

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 6.1.2 Digital outputs There are 2 digital outputs: Status- and error output.  Error output: When the status is error-free, the error output has a high level. An error is indicated by a low-level signal at the error output, which can be reset via the configuration software "US42Pro".

  • Page 22: Current Output

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 6.1.3 Current output The current output can be set to speed (UOC 40 only) or position dependent on the menu and must be activated before use. 6.1.3.1 Configuring the position-dependent current output To configure the position-dependent current output it is nec-...

  • Page 23: Erc C Module

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 6.2 ERC C module The ERC C module is a position switch module and contains 3 or 6 position switches. The position switch opens or closes depending on the position value. It is possible to imple- ment a cam with a single switch;...

  • Page 24: Depiction In The Display Section

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 6.2.1 Depiction in the display section The module is depicted as follows in the display section: The switching states of the individual switches are represented by switch symbols . Description Meaning 1 Module position...

  • Page 25: Underspeed

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C The switches listed in the lines are allo- The values listed in the columns are allo- cated as follows cated as follows S1R Switching speeds of switch 1 for Hysteresis switching speed clockwise direction of rotation for underspeed detection...

  • Page 26: Switching Delay

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 6.3.3 Switching delay The adjustable switching delay makes it possible to prevent the overspeed switch switch- ing if the limit speed is exceeded only briefly. That can be appropriate during load shed- ding, for example.

  • Page 27: Error Handling

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 6.5 Error handling Numerous diagnostic measures check the functions and operating conditions of the UOC 40 / ERC 40 at power up and during runtime. Fig.

  • Page 28: Error Table

    UOC 40 / ERC 40 Configuration manual ECU C / ERC C / EGS C 6.5.1 Error table Error no. Description Undervoltage detected 31, 32 Overvoltage detected Fell below min. temperature Max. temperature exceeded Error reset input Error preset input Error Error output Fall below system limit System limit exceeded...
