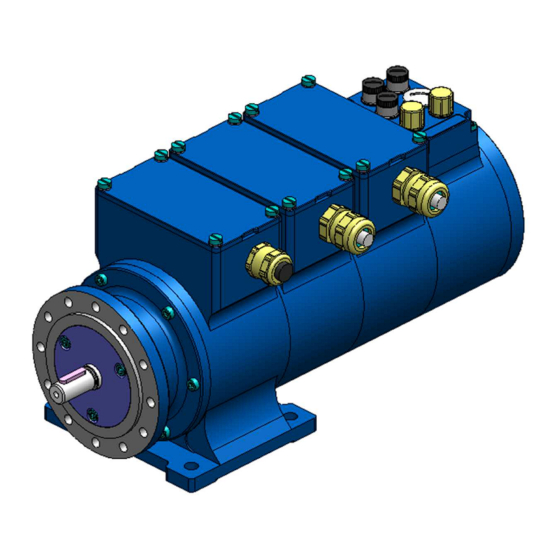

Configuration manual
®
U-ONE
-SAFETY-Compact USC 42
Universal-Encoder-System
For the following modules:
SCU-C (Safety Control Unit)
SRC C-R
(Safety position switch)
SGS C-R
(Safety overspeed switch)
Read the configuration manual prior to assembly,
starting installation and handling!
Keep for future reference!
Translation of the original configuration manual
ID 74237
issued August 2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hubner U-ONE-SAFETY Compact USC 42
Summary of Contents for Hubner U-ONE-SAFETY Compact USC 42

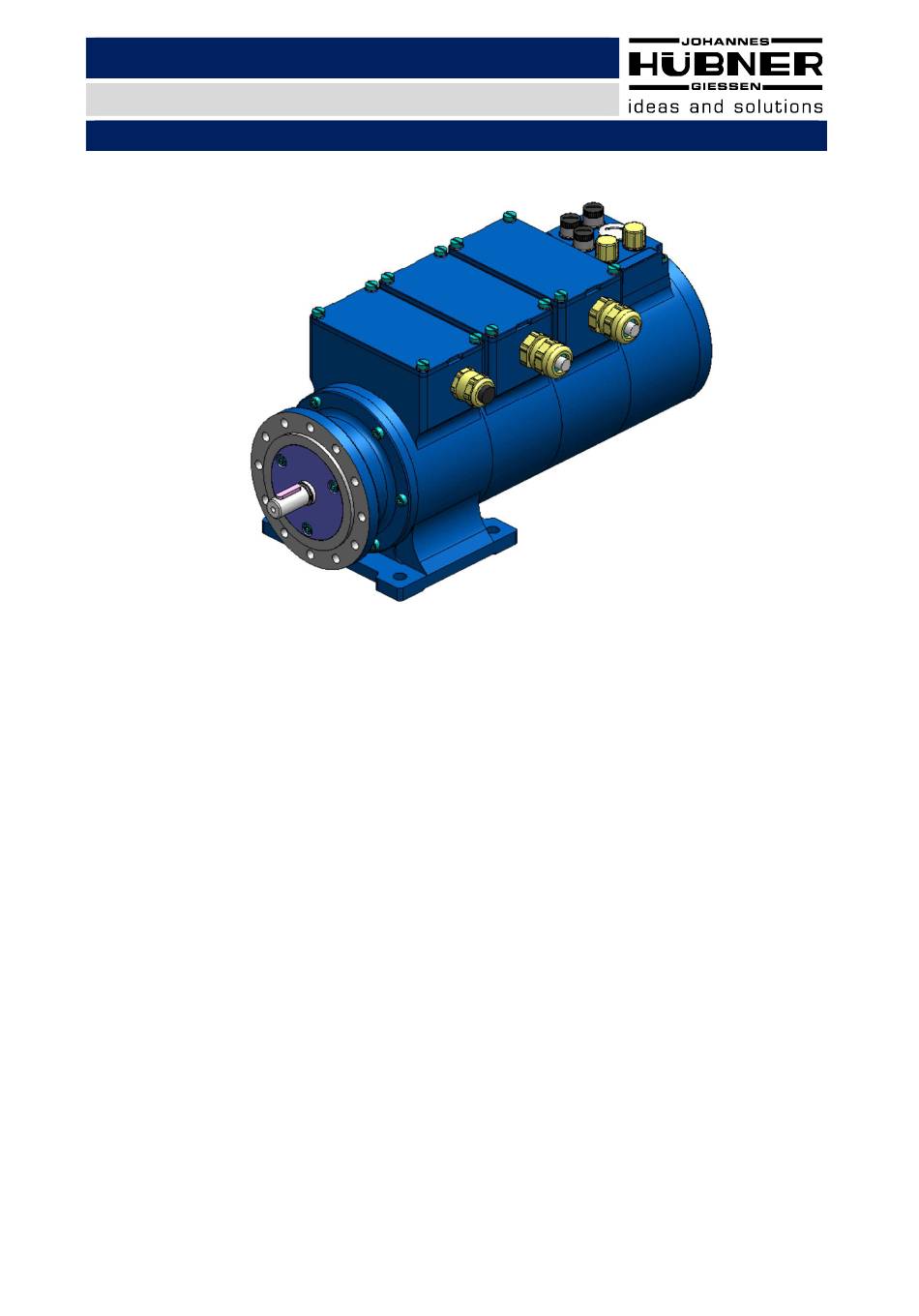

- Page 1 English Configuration manual ® U-ONE -SAFETY-Compact USC 42 Universal-Encoder-System For the following modules: SCU-C (Safety Control Unit) SRC C-R (Safety position switch) SGS C-R (Safety overspeed switch) Read the configuration manual prior to assembly, starting installation and handling! Keep for future reference! Translation of the original configuration manual issued August 2018 ID 74237...
- Page 2 Johannes Hubner Fabrik elektrischer Maschinen GmbH. Subject to errors and changes due to technical improvements. Copyright © Johannes Hubner Fabrik elektrischer Maschinen GmbH. All rights reserved. USC42_SCU-KonfigManual-en_R5...
-
Page 3: Table Of Contents
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C Table of contents 1 Generally ......................... 5 1.1 Abbreviations and terminology used ................5 1.2 System requirements ....................5 2 Installing the software ....................5 2.1 Installing the driver manually ..................6 2.2 Manual driver installation under Windows XP SP3 ............. - Page 4 ® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 6.3.2 Rotation direction dependent....................26 6.3.3 Switching delay ........................27 6.3.4 Display in the display area ....................27 6.4 Input accuracy of switching points ................27 6.5 Error handling ......................28 6.5.1 Error table ..........................
-
Page 5: Generally
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 1 Generally The U-ONE®-SAFETY-Compact is referred to as “USC 42” in the following documentation. This document explains how to set the parameters of the U-ONE®-SAFETY-Compact using the software US42Pro and then transfer the settings to the device. -
Page 6: Installing The Driver Manually
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 2.1 Installing the driver manually PLEASE NOTE! You must log into a user account with administrator rights to install the software. Ensure all programs are closed. If it is necessary to install the driver manually, depending on your operating system, please check the following steps. -
Page 7: Manual Driver Installation Under Windows Xp Sp3
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 2.2 Manual driver installation under Windows XP SP3 Fig. 2-4: Software Installation XP SP3 Now select the installation source via “Browse” and point to path of your installation, there select the folder drivers. -
Page 8: Setting Up Usc 42
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 3 Setting up USC 42 Allow sufficient time to plan the integration and configuration of the USC 42. Please remem- ber that planning and configuration errors can put people at risk. Put organizational measures in place to guarantee the safe systemstate during configuration procedures! Ensure that the system cannot enter any dangerous states during the configuration proce- dures including in that part of the system monitored by devices connected to the USC 42. -
Page 9: Software Description Us42Pro
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 4 Software description US42Pro In this chapter you will learn how to configure the USC 42in its respective device combination using the configuration software US42Pro. For the purpose of clarity the user interface is divided up into different sections. -
Page 10: User Interface Head Section
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 4.1.1 User interface head section The menu bar containing basic commands to operate the software is located in the head section. 4.1.2 Pulldown menu: File Import Parameters •... -
Page 11: Pulldown Menu: File Offline
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 4.1.5 Pulldown menu: File Offline In offline mode, a device parameter set can be created without USC 42as follows: • A virtual USC 42 is created by entering the type designation. -
Page 12: Pulldown Menu: Options Firmware Update
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C Level 1: Tester (password level 1) On this level the following functions are available in addition to those on level 0: - Perform test of switch - Generate test logs Level 2: Admin (password level 2) -
Page 13: Pulldown Menu: Options Reset To Factory Settings
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 4.1.10 Pulldown menu: Options Reset to factory settings All parameters and the USC 42 will be deleted and reset to factory settings. Factory settings: Password level1 huebner1 Test pulse duration 1 ms... -
Page 14: Pulldown Menu: Options Fitcalc
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 4.1.12 Pulldown menu: Options FitCalc The characteristic safety values of the device depend on the number of relay switching cy- cles. The type determines the number of relays. Switching cycles p.a.: Number of relay switching cycles per an- num. -
Page 15: Pulldown Menu
-SAFETY Compact Configuration manual SCU C / SRC C / SGS C 4.1.15 Pulldown menu „?“ • Info Displays the software version and Johannes Hubner contact details. • Help Opens the current configuration data in PDF format. • Documentation Opens the folder containing the USC 42 documentation. This is where the connection diagrams, dimension drawings and operating and assembly instructions and the configuration manual are stored. -
Page 16: Fault Memory
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 4.1.19 Fault memory Memory Time: Time of error occurrence (Operating hours) The error memory is a ring memory and can accommodate 100 error entries. Internal er- rors should be sent to the manufacturer for analysis. -
Page 17: Configuring Usc 42
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C Configuring USC 42 You must first calibrate the position system before configuring USC 42 (chapter 5.3). Device calibration and device configuration operations are only possible on the password level “Admin”. CAUTION! It is only possible to assign parameters and calibrate the device when the device is at a standstill! -
Page 18: Calibrating The Position System
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 5.3 Calibrating the position system To calibrate the position system (adapt the internal device processing to mirror actual conditions at the place of installation) it is necessary to determine the system limits, cali- bration point, calibration factor and unit. -
Page 19: Calibration
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 5.3.1 Calibration 1. Select the desired unit via the pulldown menu 2. Enter the values for the system limits and the calibration point (preset). The following constraint applies: Lower system limit <... -
Page 20: Saving Configuration- Or Parameterisation Data In The Usc 42
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 5.4 Saving configuration- or parameterisation data in the USC 42 All entries are formally checked prior to data transmission. Incorrect entries are highlighted red and data transmission to the USC 42 are prevented. If the entries comply with the conditions above (chapter 5.3.2), the values are transmitted to the USC 42, checked, ac-... -
Page 21: Functions
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 6 Functions 6.1 SCU C module The SCU C module (Safety-Control Unit) is the central control unit of the USC 42. To assign the module a user-defined designation click the symbol . -
Page 22: Digital Outputs
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 6.1.2 Digital outputs There are 2 digital outputs: Status and error output. Both outputs are 2 channel (Cat. 3) types. Both channels of an error output must have the same status (open/closed) and both must be monitored by the applica- tion. -
Page 23: Current Output (Non Safety Related)
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 6.1.3 Current output (non safety related) The current output can be set to speed or position dependent on the menu and must be activated before use. 6.1.3.1 Configuring the position-dependent current output To configure the position-dependent current output it is nec-... -
Page 24: Src C Module
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 6.2 SRC C module The SRC C module is a position switch module and contains 3 or 6 position switches. The position switch opens or closes depending on the position value. The position switches are 2 channel types (2 NO contacts, Cat. -
Page 25: Depiction In The Display Section
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 6.2.1 Depiction in the display section The module is depicted as follows in the display section: The switching states of the individual switches are represented by switch symbols . Description Meaning X2: 2. -
Page 26: Underspeed
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C The switches listed in the lines are allocated The values listed in the columns are allocated as follows as follows Switching speeds of switch 1 for Hysteresis switching speed for clockwise direction of rotation underspeed detection... -
Page 27: Switching Delay
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 6.3.3 Switching delay The adjustable switching delay makes it possible to prevent the overspeed switch switching if the limit speed is exceeded only briefly. That can be appropriate during load shedding, for example. -
Page 28: Error Handling
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 6.5 Error handling Numerous diagnostic measures check the functions and operating conditions of the USC 42 at power up and during runtime. In the event of a deviation, the error state (safe state) is initiated and the error is stored in the error Fig. -
Page 29: Error Table
® U-ONE -SAFETY Compact Configuration manual SCU C / SRC C / SGS C 6.5.1 Error table Error no. Description Undervoltage detected 31, 32 Overvoltage detected Fell below min. temperature Max. temperature exceeded Error reset input Error preset input Error output Fall below system limit System limit exceeded Operating range (system limit) too great...
