Operating and Assembly Instructions
Incremental Hollow Shaft Encoder

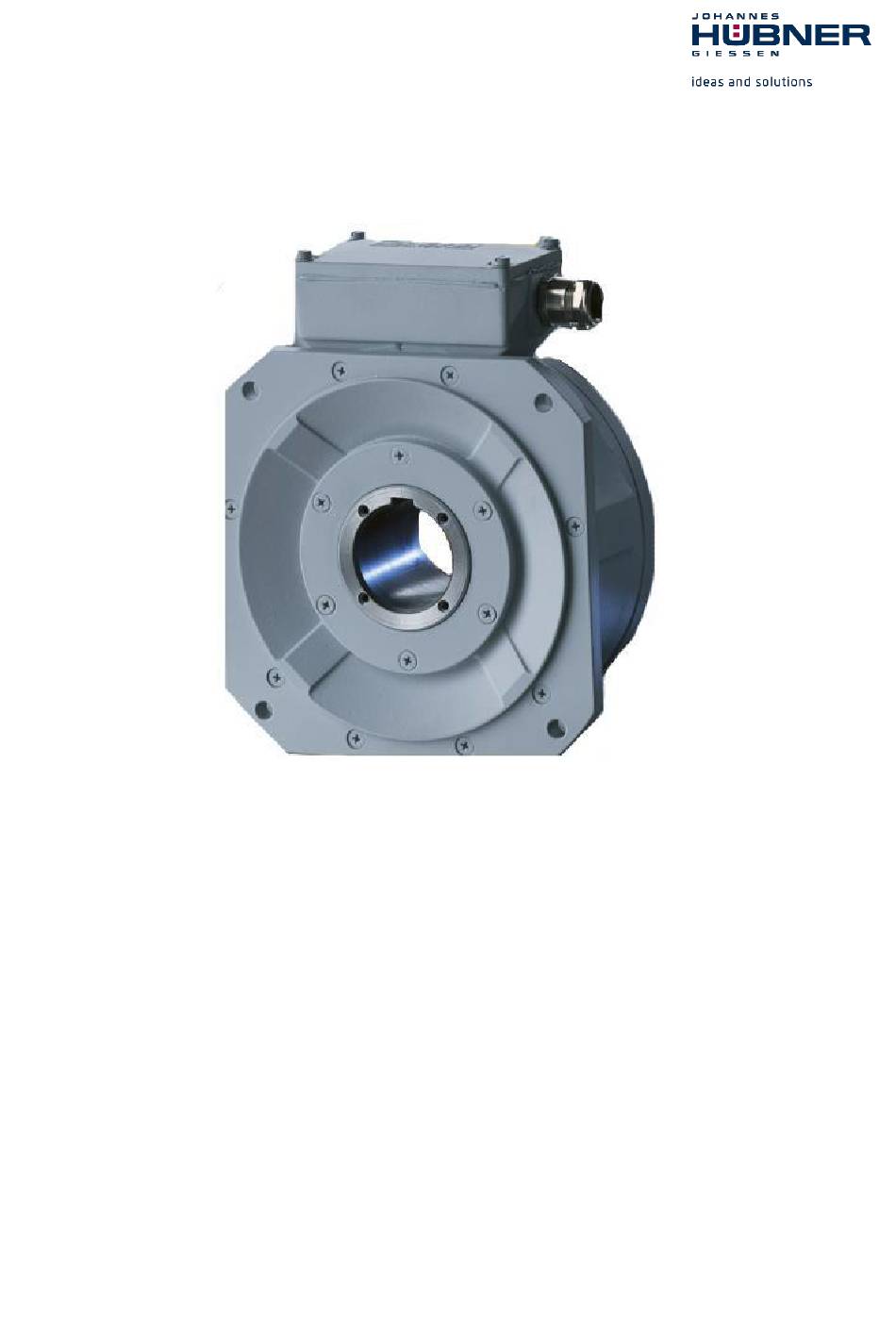

FGH 6
Read the operating and assembly instructions prior to
assembly, starting installation and handling!
Keep for future reference!
Translation of the original Operating and Assembly Instructions FGH6_MANUAL-en_R12(2018-11-05)ID73487.docx
ID 74515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FGH 6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hubner FGH 6

Summary of Contents for Hubner FGH 6

  • Page 1 English Operating and Assembly Instructions Incremental Hollow Shaft Encoder FGH 6 Read the operating and assembly instructions prior to assembly, starting installation and handling! Keep for future reference! Translation of the original Operating and Assembly Instructions FGH6_MANUAL-en_R12(2018-11-05)ID73487.docx ID 74515...
  • Page 2 Johannes Hubner Fabrik elektrischer Maschinen GmbH. Subject to errors and changes due to technical improvements. Copyright © Johannes Hubner Fabrik elektrischer Maschinen GmbH. All rights reserved. FGH6_MANUAL-en_R12(2018-11-05)ID74515.docx...

  • Page 3: Table Of Contents

    Assembly instruction for hollow shaft devices ..............13 5.2.2 Assembly of a hollow shaft encoder FGH 6 and additionally a further encoder in construction type B5 onto the NDE of the FGH 6 ................14 Connecting the hollow shaft encoder ..................15 5.3.1...
  • Page 4 Incremental Hollow Shaft Encoder FGH 6 Faults table ..........................17 8 Testing ..........................18 Safety instructions ........................18 Maintenance information ......................18 Quality control plan ........................18 9 Disposal .......................... 18 Disposal procedure ........................18 10 Dimension drawings ...................... 22 11 Connection Diagrams ....................

  • Page 5: General

    In addition, applicable local regulations for the prevention of industrial accidents and general safety regulations must be complied with. 1.2 Scope of delivery Incremental Hollow Shaft Encoder FGH 6, operating and assembly instructions. 1.3 Explanation of symbols Warnings are indicated by symbols in this operating manual. The warnings are introduced by signal words that express the scope of the hazard.

  • Page 6: Disclaimer

    2.2 Intended use The device has been designed and constructed exclusively for the intended use described here. Series FGH 6 incremental hollow-shaft encoders are used for measurement of rotations, for instance of electrical and mechanical drives and shafts. Claims of any type due to damage arising from non-intended use are excluded; the owner bears sole responsibility for non-intended use.

  • Page 7: Non- Intended Use

    Incremental Hollow Shaft Encoder FGH 6 2.3 Non- intended use The device may not be used in explosion-threatened areas. On the device no other mechanical load may be exercised except his dead weight and the oscillations without fail appearing during the company and pushes.

  • Page 8: Technical Data

    Incremental Hollow Shaft Encoder FGH 6 3 Technical Data 3.1 Type plate Type plate example: The type plate is located on the side of the housing and contains the following information:  Manufacturer, address  Type  CE-mark  Serial number (S/N) ...

  • Page 9: Electrical And Mechanical Data

    Incremental Hollow Shaft Encoder FGH 6 3.2 Electrical and mechanical data Pulse rates Value Preferred pulse rates 1024, 2000 (nickel disks) Pulse rates available 512, 1000, 1200, 1800, 2048, 2500 Connection data 12 … 30 V DC (Option: 5 VDC)
  • Page 10 Incremental Hollow Shaft Encoder FGH 6 Signal outputs Basic version (n = pulses/revolution). One pulse channel (basic) with n direct square wave pulses, corresponding to the segment division and LED monitoring output. Option 90 pulse channel as basic version, bit with 90°...

  • Page 11: Type Code

    Incremental Hollow Shaft Encoder FGH 6 3.3 Type code 90 G /50P Incremental Hollow Shaft Encoder Synthetic bushing Series Connection K: Terminal box S: Industrial plug R: 12 pole. round plug C: 2 m connection cable L: fiber optics- technic...

  • Page 12: Transport, Packaging And Storage

    Incremental Hollow Shaft Encoder FGH 6 4 Transport, packaging and storage 4.1 Safety instructions for transport CAUTION! Improper transport can cause property damage! 4.2 Incoming goods inspection Check delivery immediately upon receipt for completeness and possible transport damage. Inform the forwarder directly on receipt of the goods about existing transport damages (prepare pictures for evidence).

  • Page 13: Mounting Of The Hollow Shaft Encoder (Mechanically)

    Incremental Hollow Shaft Encoder FGH 6 5.2 Mounting of the hollow shaft encoder (mechanically) Mounting and disassembly by means of a hammer or similar tools is not permitted (warranty void). 5.2.1 Assembly instruction for hollow shaft devices 1. Mount the adapter flange and align precisely with dial gauge; if necessary optimize the alignment with ball pressure adjusting screws.

  • Page 14: Assembly Of A Hollow Shaft Encoder Fgh 6 And Additionally A Further Encoder In

    2. Put the coupling (metal bellows coupling) on adapter shaft extension and fix the encoder with a set screw. 3. Put the hollow shaft encoder FGH 6 onto the shaft that has been lightly greased and fix with suitable axial tightening disc and screw. Details see chapter 5.2.1.

  • Page 15: Connecting The Hollow Shaft Encoder

    Incremental Hollow Shaft Encoder FGH 6 5.3 Connecting the hollow shaft encoder 5.3.1 Connections Cable glands are closed with a stopper to protect the devices on transport and storage. Cable connections: Have to be executed according to the encoder type.

  • Page 16: Technical Notes

    Incremental Hollow Shaft Encoder FGH 6 5.3.3 Technical notes Ambient temperature The max. perm. ambient temperature depends on speed and protection class (shaft sealing) of the encoder as well as on frequency, signal cable length and mounting situation. See chapter 3.2...

  • Page 17: Faults

    Incremental Hollow Shaft Encoder FGH 6 7 Faults 7.1 Faults table Faults Possible cause Remedy Soiled terminal box gasket or Clean terminal box gasket and seal surfaces seal surfaces Damaged terminal box gasket Replace terminal box gasket Moisture in the terminal box...

  • Page 18: Testing

    Incremental Hollow Shaft Encoder FGH 6 8 Testing 8.1 Safety instructions Personnel Skilled technical staff only are permitted to inspect the device and its installation. Observe the safety instructions contained in chapter 2 when inspecting or working on the device.

  • Page 19: Dimension Drawings

    Incremental Hollow Shaft Encoder FGH 6 11 Dimension drawings Special dimension drawings on request or see Internet. KK Redundant version with FGH 6 KK…/50P/B14 HM 14 M 107720 B14 flange FGH6_MANUAL-en_R2(2018-11-05)ID74515.docx...
  • Page 20 Incremental Hollow Shaft Encoder FGH 6 FGH 6 KK…/50P KK redundant version HM 14 M 107722 FGH6_MANUAL-en_R12(2018-11-05)ID74515.docx...
  • Page 21 Incremental Hollow Shaft Encoder FGH 6 FGH 6 K…/50P/B14 B 14-flange HM 14 M 107721 FGH6_MANUAL-en_R2(2018-11-05)ID74515.docx...
  • Page 22 Incremental Hollow Shaft Encoder FGH 6 FGH 6 K.../50P HM 14 M 107723 FGH6_MANUAL-en_R12(2018-11-05)ID74515.docx...
  • Page 23 Incremental Hollow Shaft Encoder FGH 6 KK redundant version with FGH 6 KK…/50P/B14 HM 14 M 107733 B14-flange and integrated Option S FGH6_MANUAL-en_R2(2018-11-05)ID74515.docx...
  • Page 24 Incremental Hollow Shaft Encoder FGH 6 KK redundant version with FGH 6 KK…/50P HM 14 M 107744 integrated Option S FGH6_MANUAL-en_R12(2018-11-05)ID74515.docx...
  • Page 25 Incremental Hollow Shaft Encoder FGH 6 KK redundant version with FGHI 6 KK…/40P/B14 HM 14 M 107731 B14 flange FGH6_MANUAL-en_R2(2018-11-05)ID74515.docx...
  • Page 26 Incremental Hollow Shaft Encoder FGH 6 FGH 6 K / (KK) with coupled KK redundant version or with HM 14 M 108189 encoder: integrated option S FGH6_MANUAL-en_R12(2018-11-05)ID74515.docx...
  • Page 27 Incremental Hollow Shaft Encoder FGH 6 FGH 6 K / (KK) …/50P / B14 KK redundant version or with HM 14 M 108203 with coupled encoders: integrated option S FGH6_MANUAL-en_R2(2018-11-05)ID74515.docx...
  • Page 28 Incremental Hollow Shaft Encoder FGH 6 FGH 6 K / (KK)…/50P / B14 KK redundant version or with HM 00 M 55 128-1 with coupled encoder: integrated option S FGH6_MANUAL-en_R12(2018-11-05)ID74515.docx...
  • Page 29 Incremental Hollow Shaft Encoder FGH 6 FGH 6 K / (KK) KK redundant version or with HM 15 M 108379 Construction type B3 / B14: integrated option S FGH6_MANUAL-en_R2(2018-11-05)ID74515.docx...
  • Page 30 Incremental Hollow Shaft Encoder FGH 6 FGH 6 K / (KK) …/ 50P / B14 KK Redundant version or with HM 03 M 55 762 encoder with adapter shaft: integrated option S FGH6_MANUAL-en_R12(2018-11-05)ID74515.docx...
  • Page 31 Incremental Hollow Shaft Encoder FGH 6 FGH 6 K / (KK) …/ 50P / B14 KK redundant version or with HM 14 M 108191 encoder with adapter shaft and assembly integrated option S FGH6_MANUAL-en_R2(2018-11-05)ID74515.docx...

  • Page 32: Connection Diagrams

    Incremental Hollow Shaft Encoder FGH 6 12 Connection Diagrams FGH 6 Standard Terminal box FGH 6 Standard Connection cable FGH6_MANUAL-en_R12(2018-11-05)ID74515.docx...
  • Page 33 Incremental Hollow Shaft Encoder FGH 6 12 – pole plug FGH 6 Standard FGH 6 Standard EMC industrial plug FGH6_MANUAL-en_R2(2018-11-05)ID74515.docx...

  • Page 34: Mounting Instructions For Coupling

    Incremental Hollow Shaft Encoder FGH 6 13 Mounting instructions for coupling FGH6_MANUAL-en_R12(2018-11-05)ID74515.docx...
