COMPONENT IDENTIFICATION

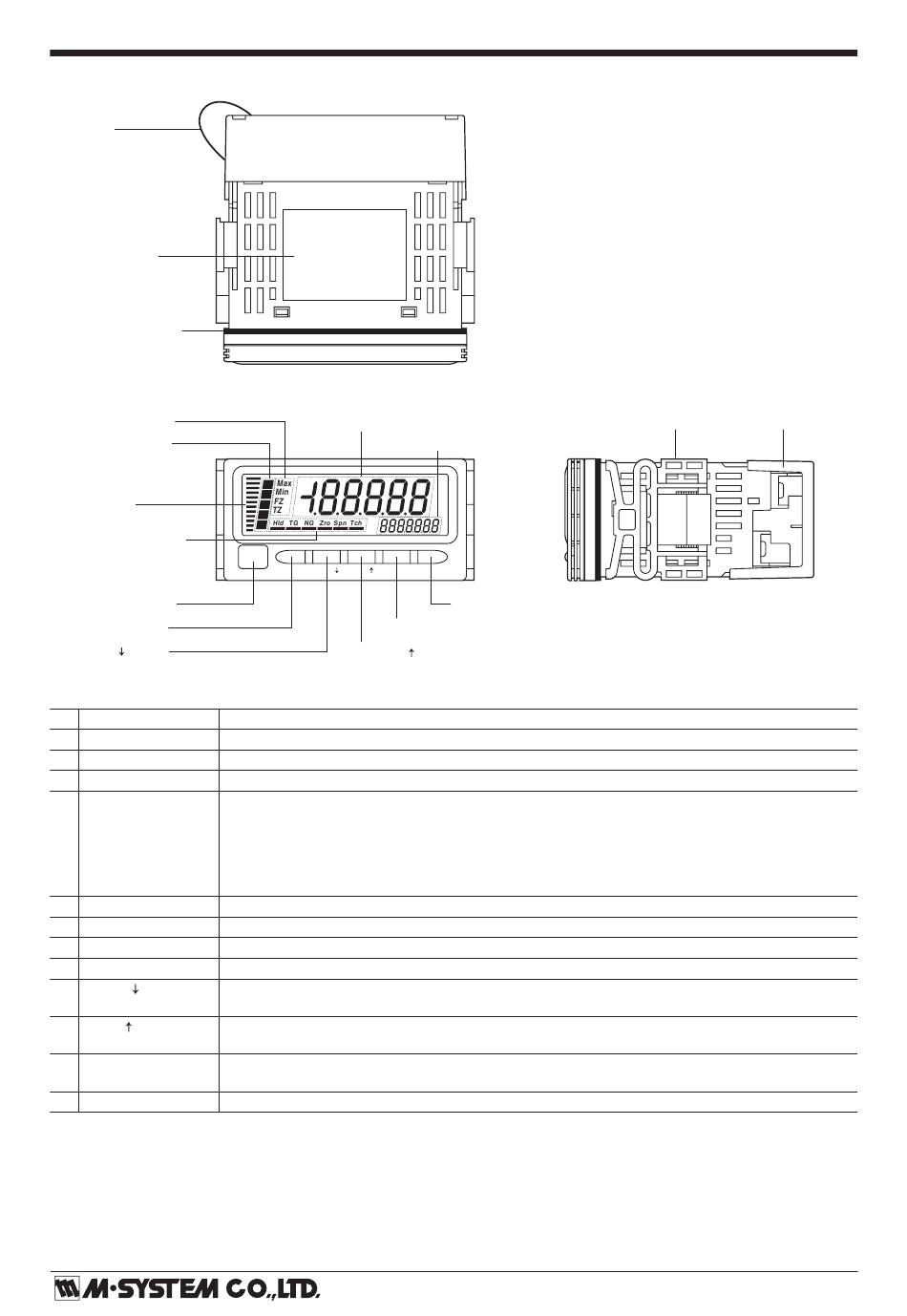

■ TOP VIEW
Strap
Specifications
Watertight Sealing
■ FRONT VIEW
(3) Status Indicators
(4) Alarm Indicators
(5) Bargraph
(6) Function Indicators
(7) Infrared Interface
(8) Max/Min Button
(9) Alarm/ Button
• COMPONENT IDENTIFICATION
No. COMPONENT
(1) Main display
(2) Sub display
(3) Status indicators
(4) Alarm indicators *
1
(5) Bargraph
(6) Function indicators Indicate the device status.
(7) Infrared interface
(8) Max/Min button
(9) Alarm/ button
(10) Scale/ button
(11) Shift button
(12) Up button
*1. All setpoints can be set and indicated regardless of alarm output options. Each is independently set either for Hi or Lo
alarm trip.
(1) Main Display
HH
H
P
L
LL
Max/Min Alarm/ Scale/ Shift
(11) Shift Button
(10) Scale/
FUNCTION
Indicates present values, setting values.
Indicates the present setting mode.
Indicate Max/Min display mode, Forced zero mode and Tare adjustment mode.
Indicate alarm status of the input signal.
LL turns on when the LL alarm is tripped.
L turns on when the L alarm is tripped.
H turns on when the H alarm is tripped.
HH turns on when the HH alarm is tripped.
P turns on when none of the other alarms is tripped.
Indicates present signal level against the scaled range.
Used for the infrared communication.
Used to switch the main display to show present values, maximum values or minimum values.
Used to confirm alarm setpoints, to move on to the alarm setting mode; or to shift through set-
ting items in each setting mode.
Used to move on to the scaling setting mode; or to shift through setting items in each setting
mode.
Used to move on to the setting standby status and shift through display digits in each setting
item.
Used to change and apply setting values; or to execute/cancel Forced Zero.
■ SIDE VIEW
(2) Sub Display
Up
(12) Up Button
Button
Mounting Bracket Terminal Cover
