47DV

SETTING PROCEDURE

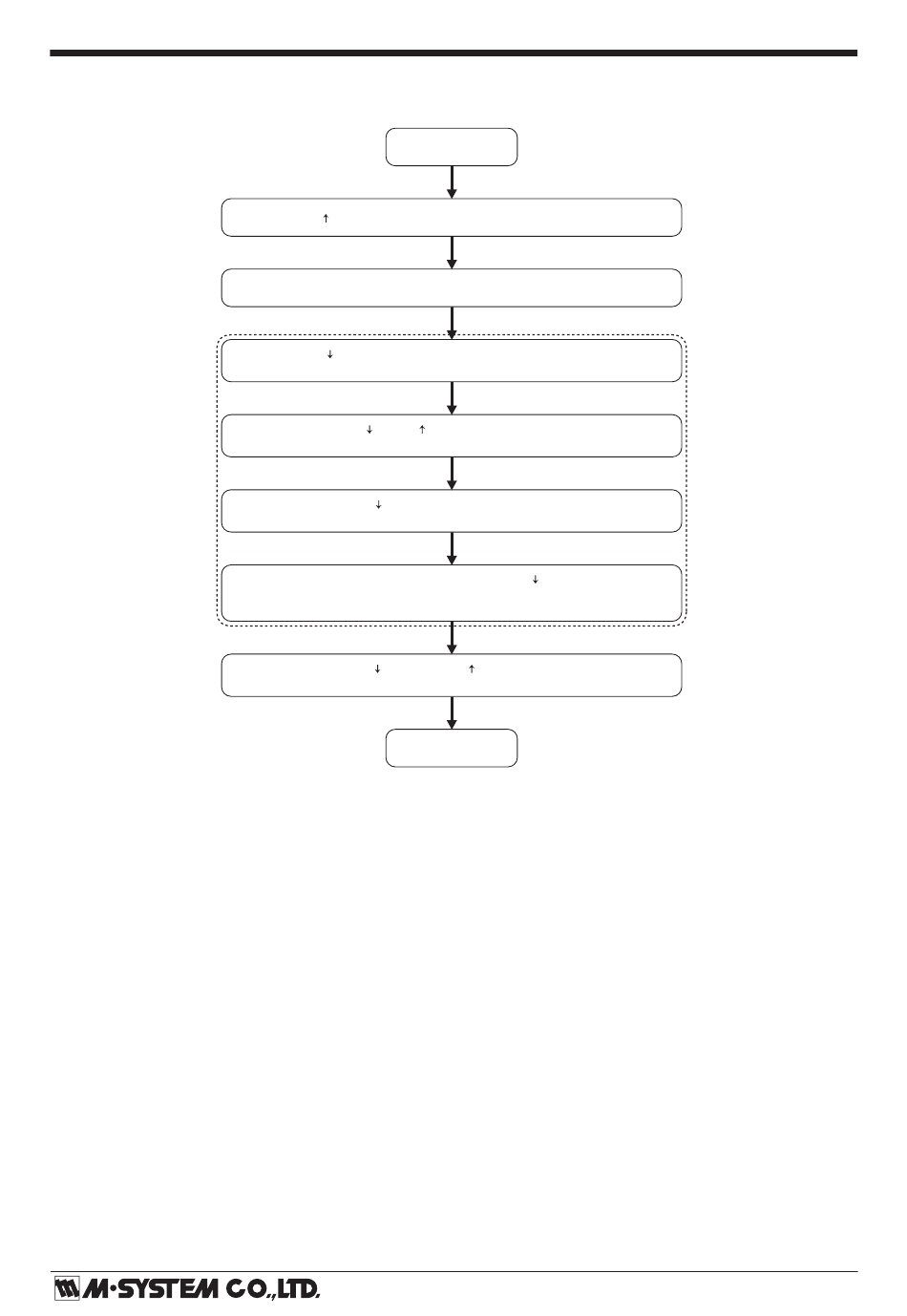

■ INITIAL SETTING FLOWCHART
POWER ON
Hold down Scale/ button for 3 seconds or more to move on to Scaling Setting Mode.
Choose an input type and display scale values.
Hold down Alarm/ button for 3 seconds or more to move on to Alarm Setting Mode.
Go through the alarm settings.
Hold down Alarm/ + Scale/ buttons at once for 3 seconds or more
to move on to Advanced Setting Mode. Go through the advanced settings.
*
1
Hold down Alarm/ + Shift buttons at once for 3 seconds or more
to move on to Modbus Setting Mode. Go through the Modbus settings.
If necessary, hold down Max/Min button + Alarm/ buttons at once
for a preset time duration to enter Lockout Setting Mode.
Go through the lockout settings.
Hold down Alarm/ button or Scale/ button for 1 second or more
to go back to Measuring Mode.
Initial Setting Complete
Measuring Started
*1. Optional settings for parameters in a broken-line section.
EM-9501-B Rev.6 P. 11 / 34
