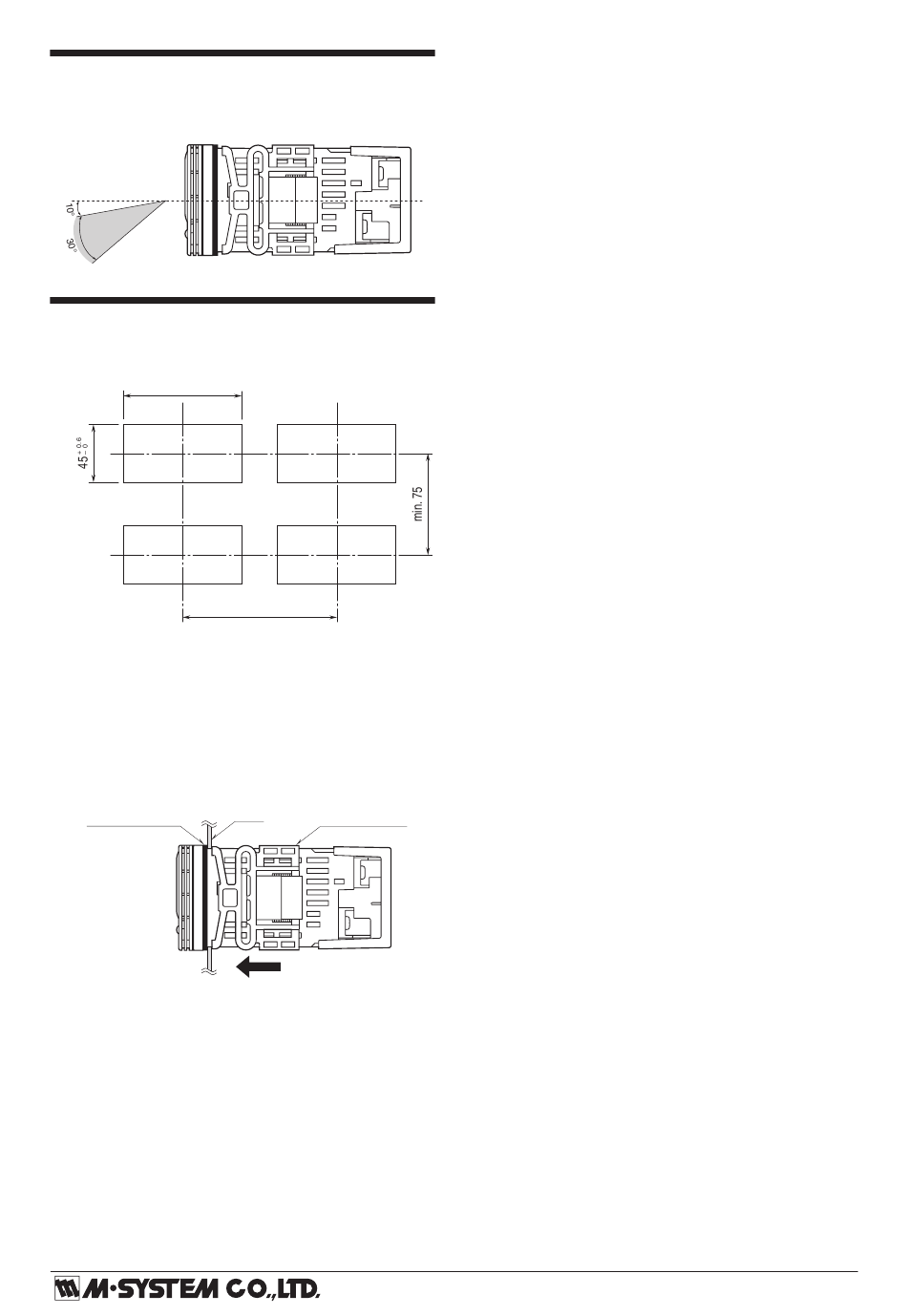

VIEWING ANGLE

The display is designed to provide the optimal legibility
when viewed from the angles as shown below.

INSTALLATION

■ PANEL CUTOUT unit: mm
+ 0.8
92
– 0
Panel thickness: 1.6 to 8.0 mm
■ HOW TO MOUNT THE UNIT ON A PANEL
The watertight packing must be in place to hold the meter.
Do not remove it.
1) Insert the unit into the panel cutout.
2) Push the mounting brackets into the grooves on both
sides of the rear module, until they hit the panel's rear
side.
Watertight packing
min. 120
Panel
Mounting Bracket
47DV
EM-9501-B Rev.6 P. 4 / 34
