Extreme Tools TXPIT7009 Manual

Professional Tools and Equipment
PROFESSIONAL STEEL CABINET MANUAL

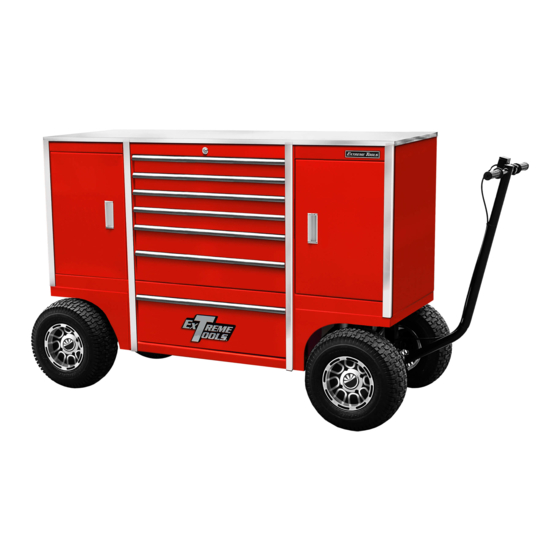

TXPIT7009 70" PIT BOX
Extreme Tools , Inc.
®
1. Replacement keys may be ordered, the code
740 Frontenac Road
which appears on the face of the lock is required.
Naperville, IL 60563
2. Give the information for service parts: part number
Office: 630 369-9303
and quantity.
Fax: 815 254-1930
TXPIT7009 70" PIT BOX
TO REMOVE DRAWERS
• Pull drawer out so it's almost fully extended
• Push UP right hand black release lever, at the same
time push DOWN left hand black release lever
• While holding the levers in the positions as
instructed from above, pull the drawer outward
until it is released from the drawer side.
PUSH UP (RIGHT HAND SIDE)
PUSH DOWN (LEFT HAND SIDE)
TO REPLACE DRAWERS
Extend the drawer slides from the tool cabinet.
Insert the brackets on each side of the
drawer into slots in the cabinet slides,
being careful that they are properly
positioned.
Once properly inserted, completely
close the drawer to set the slides in
their proper positions.
1
ASSEMBLY INSTRUCTIONS
RAISE & RELEASE DRAWER FRONTS
The Pit Box is equipped with raise and release
drawer fronts. To open, lift up on the drawer
front while pulling drawer towards you.
To close, shut the drawer firmly until the latch
engages. If the drawer does not stay closed
the hook may be bent, or it may rub against
the drawer slides. To fix this problem lightly
bend the hook until the drawer will engage in
the slide
MAINTENANCE
• Lubricate the slides (twice a year)
• Periodically the drawer fronts, drawer
trim and other surfaces should be cleaned
with mild detergent and water.
• Grease and oil can be removed with most
standard cleaning fluids. For safety, use a
a nonflammable cleaning fluid.
• Periodically check tires for pressure levels.
FLAT REPAIR INSTRUCTIONS
• If air leakage occurs after use for a long
time, check tire, inflate as needed.
• If tire is pierced by a nail or other sharp
object, repair the tire as you would a
car tire. If the damage can not be
repaired, change tire.
