MadgeTech Pulse101A Quick Start Manual

Part Number
Maximum Pulse Rate
Input Range
Input Low
Input High
Internal Weak Pull-Up
Input Impedance:
Minimum Pulse Width/
Contact Closure Duration:
Memory
250,000 readings in repeatable start/stop mode
Wrap Around
LED Indicator
Required Interface Package
Baud Rate
Typical Battery Life
Operating Environment
Material
Dimensions
Approvals
Battery Warning
WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE,
FORCE OVER DISCHARGE, DISASSEMBLE, CRUSH, PENETRATE OR INCINERATE. BATTERY MAY
LEAK OR EXPLODE IF HEATED ABOVE 80°C (176°F).
Specifications subject to change.
See MadgeTech's terms and conditions at www.madgetech.com
MadgeTech, Inc.
PO Box 50
l
Phone 603.456.2011
www.madgetech.com
Pulse101A
10KHz
0 to 30VDC continuous
<0.4 V
>2.8 V
<60μA
>60kΩ
≥10 microseconds
500,000 readings
Yes
Red & Green
IFC200
115,200
10 years at a 15 minute reading rate
-40°C to +80°C (-40°F to +176°F),
0%RH to 95%RH non-condensing
ABS plastic
1.4" x 2.5" x 0.6"
(36mm x 64mm x 16mm)
CE
Warner, NH 03278
Fax 603.456.2012
l
info@madgetech.com
l
Product Information Card
Pulse101A

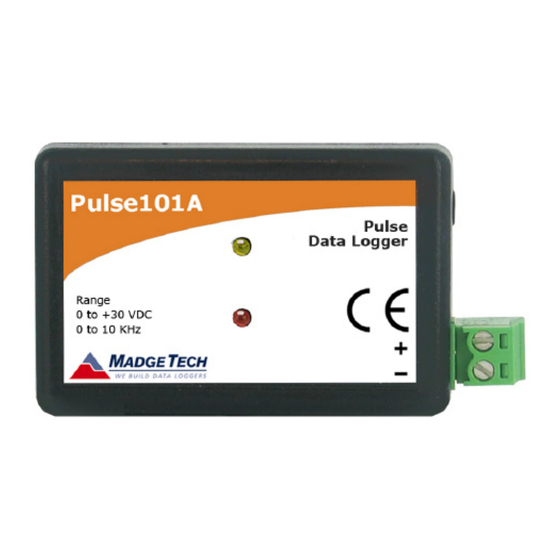

Pulse Data Logger
REV A 2011.01.07
