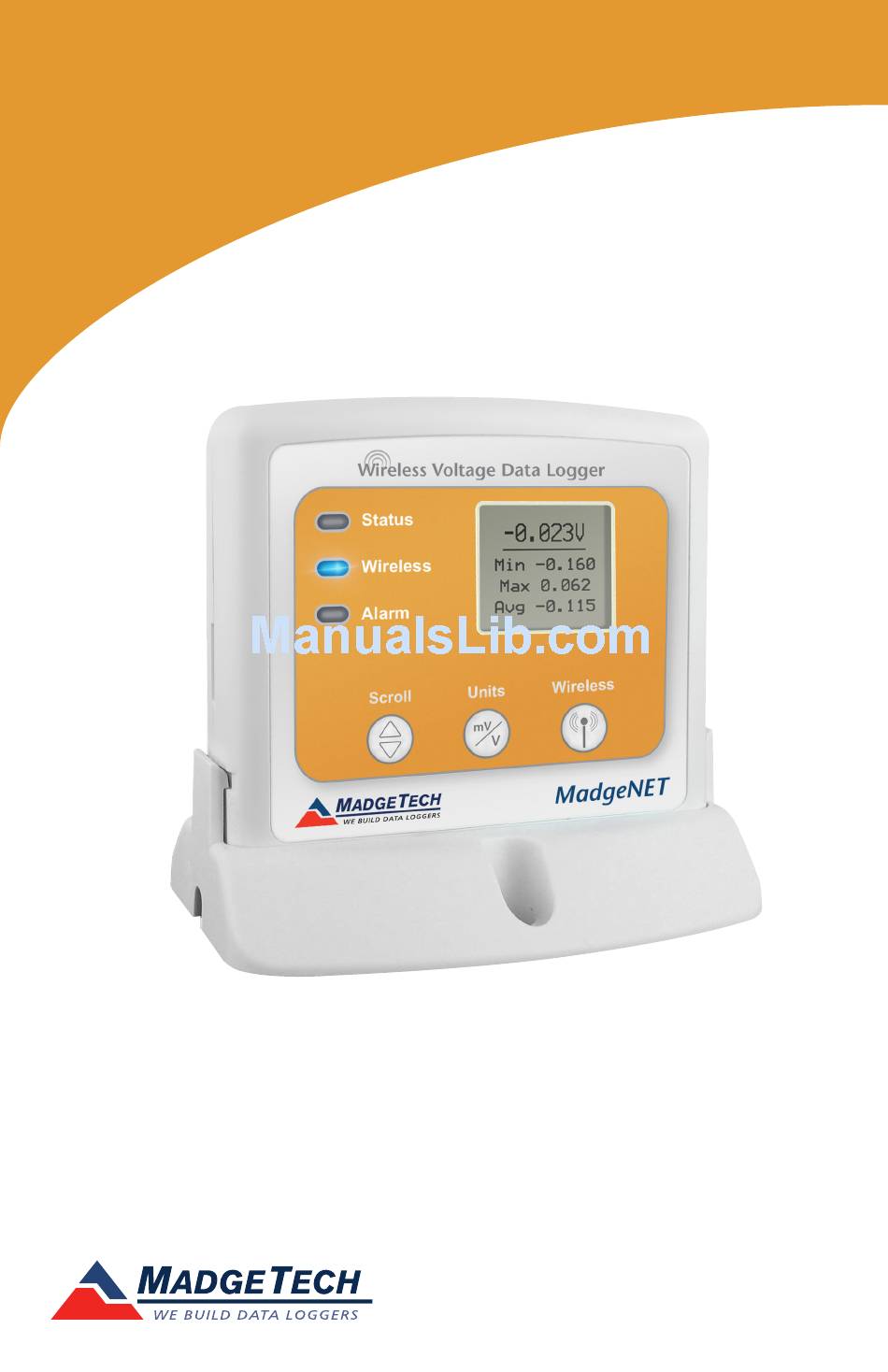

- Page 1 Product User Guide RFVolt2000A RFVolt2000A Red 485 Wireless Voltage Data Logger Dark Blue Pantone 289 Light Blue 58% of Pantone 289 To view the full MadgeTech product line, visit our website at www.madgetech.com. Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com (603) 746-5524...
-
Page 2: Table Of Contents
Channel Programming ......... 11 Deployment & Activation ......12 General Specifications ........12 Compliance Information ........ 13 Troubleshooting Tips .... Back Cover To view the full MadgeTech product line, visit our website at www.madgetech.com. Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com (603) 746-5524... -
Page 3: Quick Start Steps
“Wireless: OFF”. If wireless mode is on, press and hold the Wireless button on the device for 5 seconds. The RFVolt2000A comes with a USB cable. Plug one end of the cable into an available USB port on the PC and plug the opposite end of the cable into the communication port on the RFVolt2000A. -
Page 4: Product Overview
DC voltage monitoring applica- tions. The RFVolt2000A can also be interfaced with a wide range of voltage output sensors, including pressure sensors and CO2 sensors, as well as transmitters and other transducers. -
Page 5: Additional Features & Operation
6. Once the alarm is configured appropriately, click Apply to save the settings. **Please refer to the Help file in the MadgeTech software for more information regarding alarm settings** Distributed by MicroDAQ.com, Ltd. -
Page 6: Mounting Instructions
Product User Guide Mounting Instructions The base provided with the RFVolt2000A can be used in two ways. • The bottom of the logger snaps in place to use and mount the unit on a table top or horizontal surface. • The base can also securely snap to the backside of the logger for wall mounting if desired (as shown below). -
Page 7: Product Maintenance
Recalibration only $40.00 RMA Instructions To send a device back in to MadgeTech, follow the instructions below to create an RMA (Return Merchandise Authorization) on the MadgeTech website: 1. Visit www.madgetech.com, under the Services tab select RMA Process. 2. When the web page opens, please sign in. If this is the first time, select Click here to register an account and create one. -
Page 8: General Specifications
±1 minute/month USB to mini USB, 250,000 baud for standalone operation or RFC1000 Computer Interface required for wireless operation Software XP SP3/Vista/Windows 7/Windows 8 (MadgeTech 4 only) Operating -20°C to +60°C (-4°F to +140°F); 0 to 95% RH non-condensing Environment Dimensions 3.5”... -
Page 9: Battery Warning
WARNING: MAY LEAK, FLAME OR EXPLODE IF DISASSEMBLED, SHORTED, CHARGED, CONNECTED TOGETHER, MIXED WITH USED OR OTHER BATTERIES, AND/OR EXPOSED TO FIRE/HIGH TEMPERATURE. DISCARD USED BATTERY PROMPTLY, KEEP OUT OF REACH OF CHILDREN. Specifications subject to change. See MadgeTech’s terms and conditions at www.madgetech.com Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com (603) 746-5524... - Page 10 Product User Guide RFC1000 Wireless Transceiver Other models available: RFC1000-CE - Approved for European markets RFC1000-IP69K - Splash Proof for harsh environments Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com (603) 746-5524...
-
Page 11: Product Overview
RFC1000 Product Overview MadgeTech has designed the RFC1000, a high powered transceiver that has a substantially long transmission range, providing enhanced performance in occluded environments (ovens, refrigerators, etc.). The RFC1000 also features an external antenna, allowing more flexibility with mounting positions in both orientation and proximity to metal walls. The device may be used as a repeater, or directly plugged into the Windows PC. -
Page 12: Mounting Instruction
Product User Guide Mounting Instructions For best wireless performance, both the RFC1000 and the MadgeTech data loggers should be mounted in the same orientation. This usually means that the external antenna should be pointing straight up. The antenna can pivot to accommodate either a wall mount or a desk mount. -
Page 13: Channel Programming
Channel Programming The RFC1000 transmits data on the 2.4GHz band and is programmed by default on channel 11. Each MadgeTech Wireless Data Logger and RFC1000 has a set of dip switches with which the channel may be programmed. Different wireless channels may be used to create multiple networks in one area, or to avoid wireless interference from other devices. -
Page 14: Deployment & Activation
Step 1: Use the USB Cable, plug the USB end of the cable into an available USB port on the PC. Step 2: Plug the opposite end of the cable into the communication port on the RFVolt2000A. Step 3: Open the MadgeTech Software. Locate and select the RFVolt2000A in the Connected Devices panel. -
Page 15: Compliance Information
RFC1000 Compliance Information • “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”... -
Page 16: Troubleshooting Tips
• Ensure that no other MadgeTech software (such as MadgeTech 2, or MadgeNET) is running in the background. • Ensure that MadgeTech 4 is being used. MadgeTech 2 and MadgeNET are not the correct software for connecting with the RFVolt2000A.
