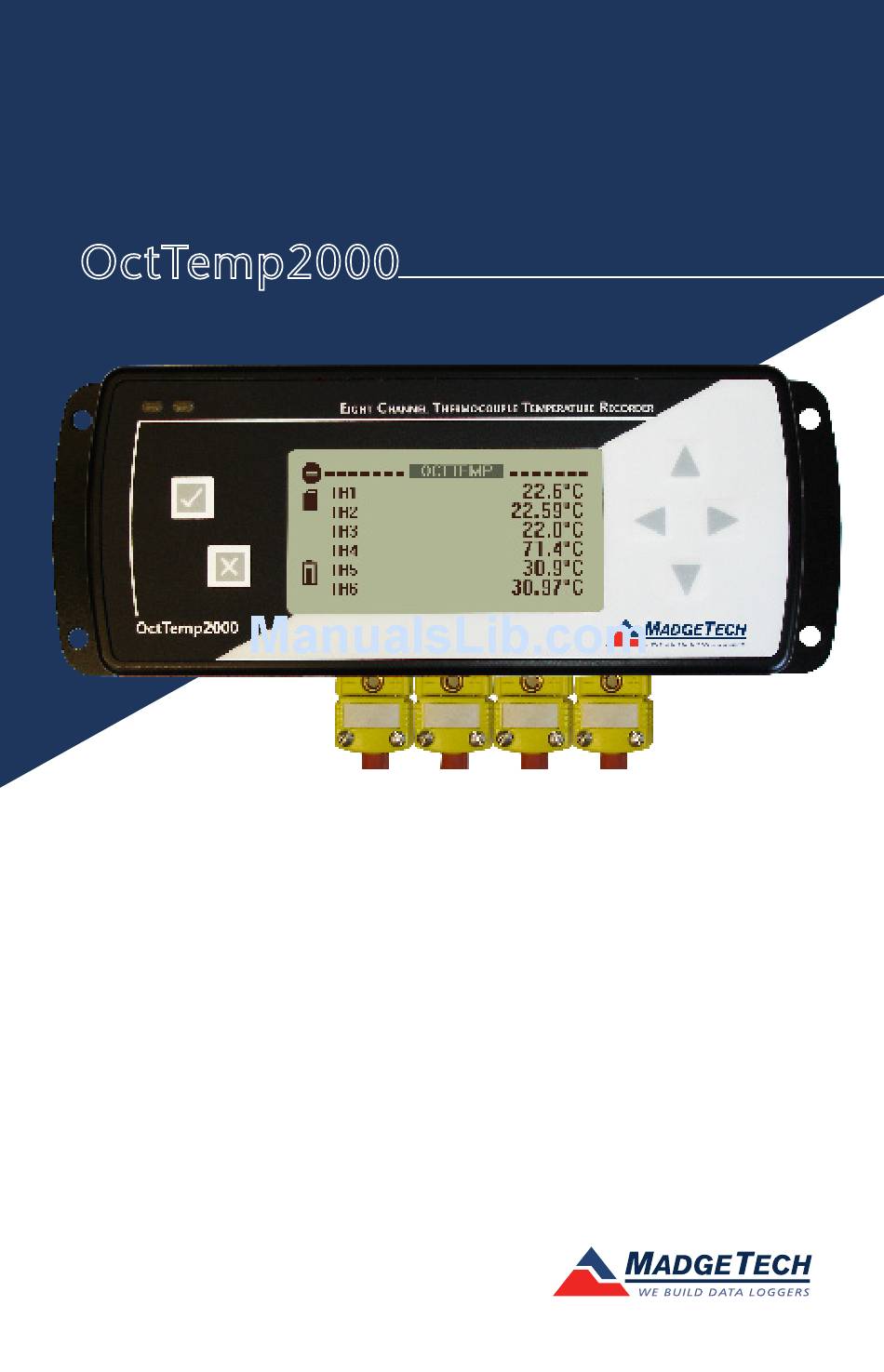

OctTemp2000
Data Logger Manual
Red 485
Dark Blue Pantone 289
Light Blue 58% of Pantone 289

Advertisement

Table of Contents
loading

Related Manuals for MadgeTech octtemp 2000

Summary of Contents for MadgeTech octtemp 2000

  • Page 1 OctTemp2000 Data Logger Manual Red 485 Dark Blue Pantone 289 Light Blue 58% of Pantone 289...

  • Page 2: Table Of Contents

    Table of Contents Data Logger Manual Overview ....................2 Other Documentation ..............2 Contacting Us ................. 2 Introducing the OctTemp2000 ............3 Device Overview ................3 Display Overview ................4 Specifications .................. 5 Device Functions .................. 7 Channel Options ................7 Show or Hide Channels on the Main Screen ......

  • Page 3: Overview

    MadgeTech OctTemp2000 Overview Other Documentation Other documents which may be of interest to you are the Software Operating Manual and Data Logger Quick Start Guide. To obtain the most current versions of both of these documents please visit our website (www.madgetech.com).

  • Page 4: Introducing The Octtemp2000

    Data Logger Manual Introducing the OctTemp2000 Device Overview 9-12VDC Communications Directional Status Input Port Key Pad LEDs Mounting Holes OK Key Channel Cancel Key Inputs Keypad Functions OK Key Cancel Key Up/Down Directional Keys Left/Right Directional Keys Page 3...

  • Page 5: Display Overview

    MadgeTech OctTemp2000 Display Overview Screen Title Status Screen Indicators Content Status Indicators Battery Power (Full, Half-full, Empty) Memory Remaining (Empty, Half-full, Full) Device is running Device is stopped Delay Start Push-button (Manual) Start Device reset has occurred External power present...

  • Page 6: Specifications

    Data Logger Manual Specifications Internal Temperature Channels Range: -20 to +60°C Resolution: 0.1°C Accuracy: ±0.5°C (0 to +50°C) Thermocouple Channels Types: J, K, T, E, R, S, B, and N Connection: Female sub-minature (SMP) Cold Junction Compensation: Automatic, based on internal channel Ω...
  • Page 7 MadgeTech OctTemp2000 Calibration Digital calibration through software. Calibration date automatically recorded within device. NIST traceable certificate available. Power Supply Primary Source: 9V lithium or alkaline battery, user replaceable Secondary Source: 7.5 - 24V DC external, 100mA max Battery Life Eighteen month battery life with display off. Three months typical with continuous display use.

  • Page 8: Device Functions

    Data Logger Manual Device Functions Channel Options Each of the OctTemp2000’s channels have several options that are configurable by the user through the device’s display screen menus and the software. Show or Hide Channels on the Home Screen The user may choose to either show or hide channels on the home screen. To change channel visibility from the Home Screen: 1.

  • Page 9: Change Channel Display Size

    MadgeTech OctTemp2000 Change Channel Display Size Channels may be viewed in a number of different sizes. The smallest size allows for an overview of several channels at once, while the largest gives at-a-glance access to one or two channels. Small Font...

  • Page 10: Change Channel Units

    Data Logger Manual Change Channel Units Channels can be customized to display readings in a variety of convenient units. Units available for selection will vary according to channel type. Note: Changing display units will not affect logged data. To change channel display from the Home Screen: 1.

  • Page 11: Statistics

    MadgeTech OctTemp2000 Statistics Statistical information is generated based on the data measured by each channel. Note: Information is only generated while the data logger is running and the reset does not affect statistics on download. View Channel Statistics Minimum, maximum, and average values are calculated for each channel and displayed in the statistics screens.

  • Page 12: Time And Date Information

    Data Logger Manual Time and Date Information Current time and date information is available on the LCD. System time is automatically synchronized with your computer’s clock. To view time and date information from the Home Screen: 1. Press to enter the Main Menu to highlight Clock 2.

  • Page 13: Device Menus

    MadgeTech OctTemp2000 Device Menus Device Status Menu Information such as current recording status, reading rate, stop date and time, and calibration information can be found in the Device Status Menu. To access the Device Status Menu from the Home Screen: 1.

  • Page 14: Device Setup Menu

    Cal Date – Date of last device calibration Cal Due – Date device is due for recalibration Note: It is important to keep your device properly calibrated to ensure accurate readings. Contact MadgeTech for further information regarding calibration services. Device Setup Menu Functions in the Device Setup Menu allow you to change home screen, display, and battery options.
  • Page 15 MadgeTech OctTemp2000 Display – Options for display visibility to select Auto - display turns off after two minutes of inactivity On - display always on Backlight – Options for use of display backlight to select Auto - backlight turns off after five seconds of inactivity...

  • Page 16: Software Features

    This section details several features of the data logger software that are particularly useful with the OctTemp2000 device. For further information regarding the software, please consult the Data logger Software Manual available at www.madgetech.com. Enable and Disable Channels The user may choose to enable or disable channels using the software.
  • Page 17 MadgeTech OctTemp2000 Notice that disabled thermocouple and ambient channels appear grayed-out on the Device Detail screen. Page 16...

  • Page 18: Name Channels

    Data Logger Manual Name Channels Each channel can be given an unique name for easy identification. Channel names are visible on the LCD and are used throughout the software and data files. To name channels in the software: 1. In the Device drop down menu select Identify Device and Read Status to view the Device Status screen 2.

  • Page 19: Change Device Id

    MadgeTech OctTemp2000 Change Device ID Each OctTemp2000 can be given a device ID allowing for easy identification among multiple devices. Device IDs are displayed on the Home Screen of the LCD and are used throughout the software and data files.

  • Page 20: Battery Information

    Do not heat lithium batteries above the specified operating temperature.* Dispose of the battery in accordance with local regulations. *See the individual specification sheets at www.madgetech.com. Battery Replacement This product does not have any user-serviceable parts except the battery which should be replaced periodically.

  • Page 21: Computer Interface

    MadgeTech OctTemp2000 Computer Interface Fully insert the male connector of the IFC200 interface cable into the female receptacle of the data logger. Fully insert the female USB connector into the USB. (Please see the Data Logger Software manual for further information.) *WARNING: Install driver before connecting a device using a USB for the first time.

  • Page 22: Warranty

    Products manufactured by MadgeTech, Inc., are warranted against defective material and workmanship for a period of one year, starting from the date of shipment. In the event that a MadgeTech product is found to be defective, MadgeTech will repair or replace the product at its sole discretion.

  • Page 23: Terms And Conditions

    MadgeTech OctTemp2000 Terms and Conditions All products furnished by MadgeTech, Inc. (“Seller”) shall be in accordance with the following terms and conditions unless otherwise stated in writing: These Terms and Conditions (“Terms and Conditions”) govern (a) all sales quotations and sales of components, equipment, parts, and other products (“Product”) from, and (b) all service proposals and provisions of services by Seller to the buyer of the Products (“Buyer”).
  • Page 24 Data Logger Manual WARRANTIES AND COVENANTS, EXPRESSED OR IMPLIED, IN REGARD THERETO. EXCEPT FOR THE EXPRESS LIMITED WARRANTY SET FORTH IN THIS SECTION, SELLER DOES NOT MAKE AND HEREBY DISCLAIMS ANY AND ALL OTHER REPRESENTATIONS AND WARRANTIES OF ANY KIND WHATSOEVER, WHETHER EXPRESSED, IMPLIED OR STATUTORY, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NONINFRINGEMENT OR ACCURACY, ADEQUACY OR COMPLETENESS OF DATA MEASUREMENT, WITH RESPECT TO ANY OF THE SELLER...
  • Page 25 MadgeTech OctTemp2000 employees, who must use the Software only as specified above; (ii) modify the Software or merge it with another program; (iii) reverse engineer, disassemble, decompile, or make any attempt to discover the source code of the Software; (iv) translate or create derivative works based on the Software;...
  • Page 26 879 Maple Street Contoocook, NH 03229 Phone 603.456.2011 Fax 603.456.2012 www.madgetech.com info@madgetech.com...
