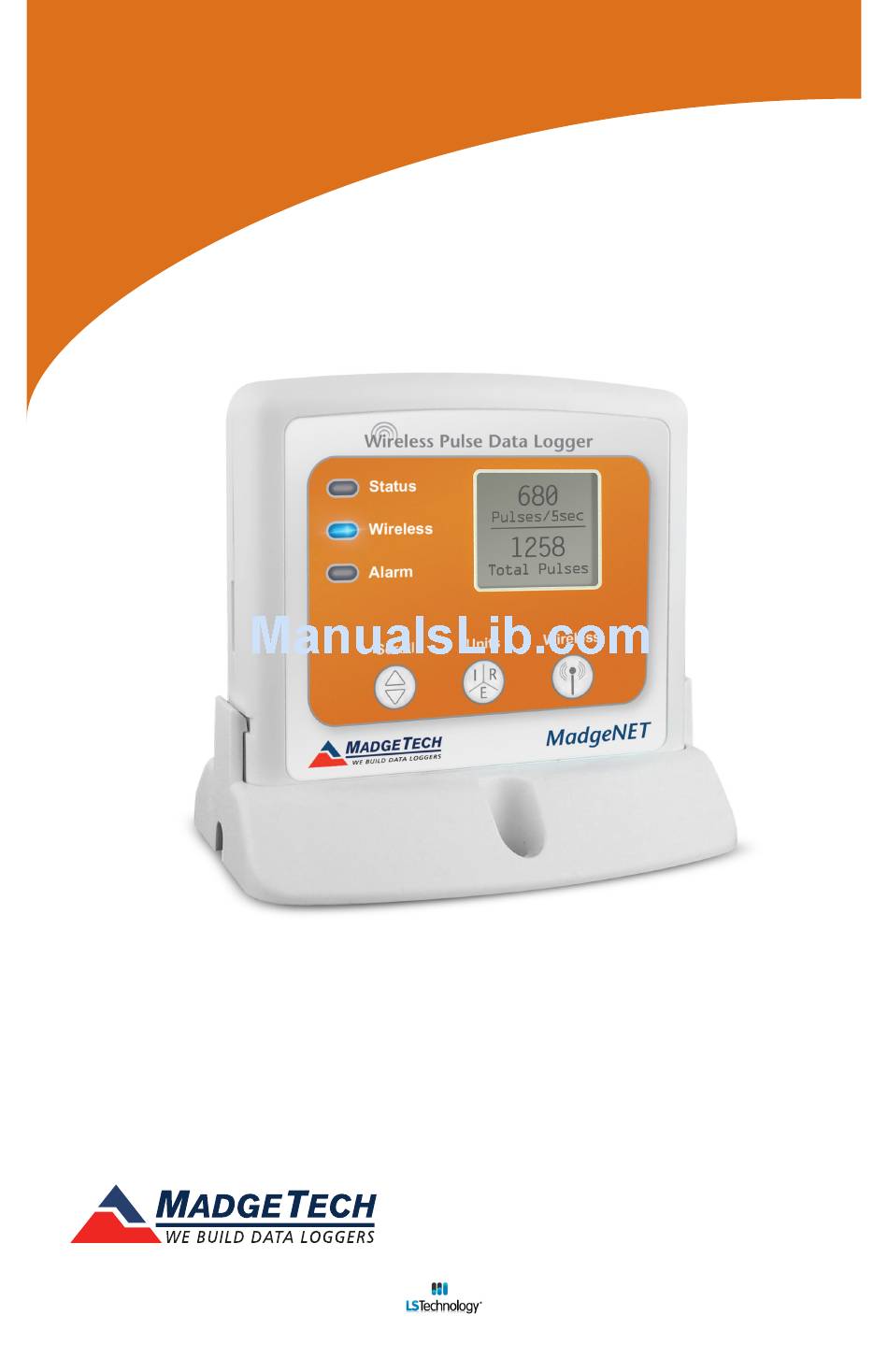

- Page 1 Product User Guide RFPulse2000A RFPulse2000A Wireless Pulse Data Logger Distributor: LoggerShop Technologies | Dorset Tel: +44 (0)845 520 0202 Fax: +44 (0)845 520 0203 | Email: sales@loggershop.co.uk | www.loggershop.co.uk...
-
Page 2: Table Of Contents
Product User Guide Table of Contents RFPulse2000A Data Logger Quick Start Steps ........... 1 Product Overview .......... 2 Additional Features & Operation ....3 Mounting Instructions ........4 Product Maintenance ........5 General Specifications ........6-7 RFC1000 Transceiver Product Overview .......... 9 Installation Guide ........... -
Page 3: Quick Start Steps
“Wireless: OFF”. If wireless mode is on, press and hold the Wireless button on the device for 5 seconds. The RFPulse2000A comes with a USB cable. Plug one end of the cable into an available USB port on the PC and plug the opposite end of the cable into the communication port on the RFPulse2000A. -
Page 4: Product Overview
This information is available on the LCD screen of the data logger as well as in the software. The RFPulse2000A is unique in that it not only calculates pulse count, but it also calculates pulse rate. Engineering units can be programmed into the device as a rate, which allows the device to calculate the measurement unit in rates per second, minute, hour or per day. -
Page 5: Additional Features & Operation
6. Once the alarm is configured appropriately, click Apply to save the settings. **Please refer to the Help file in the MadgeTech software for more information regarding alarm settings** Distributor: LoggerShop Technologies | Dorset... -
Page 6: Mounting Instructions
Product User Guide Mounting Instructions The base provided with the RFPulse2000A can be used in two ways. • The bottom of the logger snaps in place to use and mount the unit on a table top or horizontal surface. • The base can also securely snap to the backside of the logger for wall mounting if desired (as shown below). -
Page 7: Product Maintenance
RFPulse2000A Product Maintenance Battery Replacement Materials: U9VL-J Battery 1. On the bottom of the enclosure, open the battery compartment by pulling in on the cover tab. 2. Remove the battery by pulling it from the compartment. 3. Install the new battery, taking note of the polarity. -
Page 8: General Specifications
±1 minute/month USB to mini USB, 250,000 baud for standalone operation or RFC1000 Computer Interface required for wireless operation Software XP SP3/Vista/Windows 7/Windows 8 (MadgeTech 4 only) Operating -20°C to +60°C (-4°F to +140°F); 0 to 95% RH non-condensing Environment Dimensions 3.5”... -
Page 9: Battery Warning
HIGH TEMPERATURE. DISCARD USED BATTERY PROMPTLY, KEEP OUT OF REACH OF CHILDREN. Specifications subject to change. See MadgeTech’s terms and conditions at www.madgetech.com Distributor: LoggerShop Technologies | Dorset Tel: +44 (0)845 520 0202 Fax: +44 (0)845 520 0203 | Email: sales@loggershop.co.uk | www.loggershop.co.uk... - Page 10 Product User Guide RFC1000 Wireless Transceiver Other models available: RFC1000-CE - Approved for European markets RFC1000-IP69K - Splash Proof for harsh environments Distributor: LoggerShop Technologies | Dorset Tel: +44 (0)845 520 0202 Fax: +44 (0)845 520 0203 | Email: sales@loggershop.co.uk | www.loggershop.co.uk...
-
Page 11: Product Overview
RFC1000 Product Overview MadgeTech has designed the RFC1000, a high powered transceiver that has a substantially long transmission range, providing enhanced performance in occluded environments (ovens, refrigerators, etc.). The RFC1000 also features an external antenna, allowing more flexibility with mounting positions in both orientation and proximity to metal walls. The device may be used as a repeater, or directly plugged into the Windows PC. -
Page 12: Mounting Instruction
Product User Guide Mounting Instructions For best wireless performance, both the RFC1000 and the MadgeTech data loggers should be mounted in the same orientation. This usually means that the external antenna should be pointing straight up. The antenna can pivot to accommodate either a wall mount or a desk mount. -
Page 13: Channel Programming
Channel Programming The RFC1000 transmits data on the 2.4GHz band and is programmed by default on channel 11. Each MadgeTech Wireless Data Logger and RFC1000 has a set of dip switches with which the channel may be programmed. Different wireless channels may be used to create multiple networks in one area, or to avoid wireless interference from other devices. -
Page 14: Deployment & Activation
Step 1: Use the USB Cable, plug the USB end of the cable into an available USB port on the PC. Step 2: Plug the opposite end of the cable into the communication port on the RFPulse2000A. Step 3: Open the MadgeTech Software. Locate and select the RFPulse2000A in the Connected Devices panel. -
Page 15: Compliance Information
RFC1000 Compliance Information • “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” •... -
Page 16: Troubleshooting Tips
• Ensure that no other MadgeTech software (such as MadgeTech 2, or MadgeNET) is running in the background. • Ensure that MadgeTech 4 is being used. MadgeTech 2 and MadgeNET are not the correct software for connecting with the RFPulse2000A.
