Summary of Contents for MadgeTech PR2000

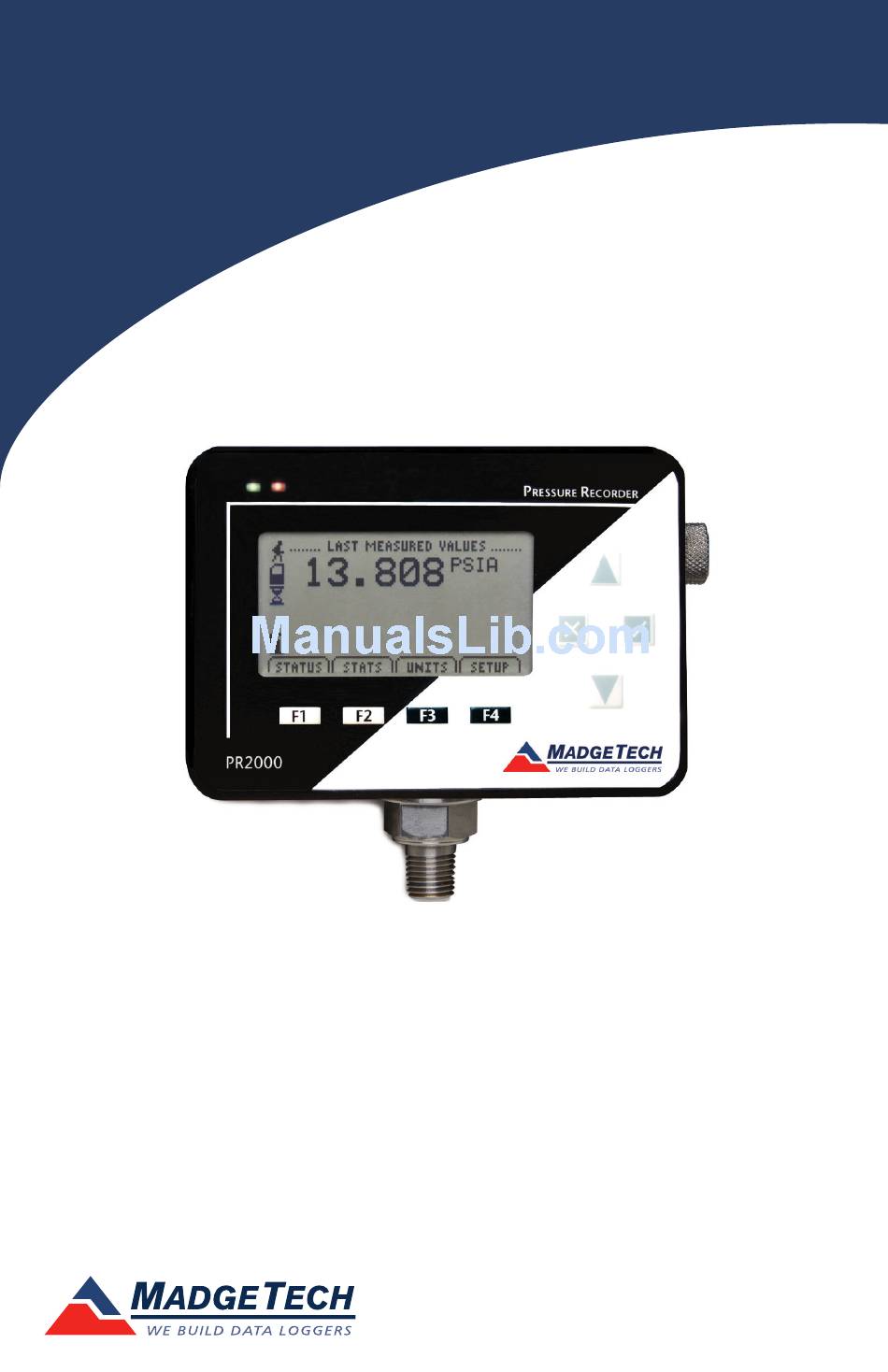

- Page 1 Product User Guide PR2000 PR2000 Pressure Data Logger with LCD Red 485 Dark Blue Pantone 289 Light Blue 58% of Pantone 289...
-
Page 2: Table Of Contents
Software Installation ............. 5 Device Operation ............5 Computer Interface ............6 Front Panel Overview ............ 7 Screen Descriptions ........... 8-9 Maintenance ............. 10 General Specifications ..........11 To view the full MadgeTech product line, visit our website at www.madgetech.com. -
Page 3: Quick Start Steps
To download data, connect the data logger to the windows PC with the IFC200, select the device in the list, click the Stop icon, and then click the Download icon. A graph will automatically display the data. Please refer to the PR2000 Product Manual for full product details by going to www.madgetech.com/product-documentation. -
Page 4: Product Overview

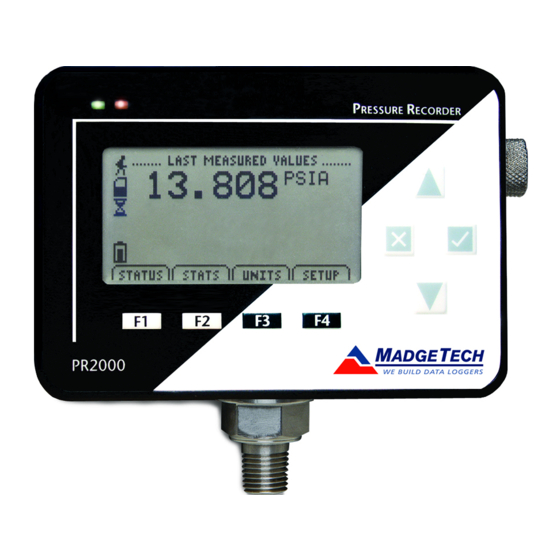

PR2000 Product Overview The PR2000 is a pressure data logger with LCD display. The device features an IP rating of 65, which means it is dust proof, and splash proof making it available to be used outdoors. The convenient LCD provides access to the current pressure reading, as well as minimum, maximum and average statistics. -
Page 5: Software Installation
Software Installation Installing the MadgeTech 4 Software The MadgeTech 4 Software makes the process of downloading and reviewing data quick and easy, and is free to download from the MadgeTech website. Download the MadgeTech 4 Software on a Windows PC by going to: www.madgetech.com/software-download. -
Page 6: Computer Interface
PR2000 Computer Interface Fully insert the male connector of the IFC200 interface cable into the female receptacle of the data logger. Fully insert the female USB connector into the USB. (Please see the Data Logger Software manual for further information.) *WARNING: Install driver before connecting a device using a USB for the first time. -
Page 7: Front Panel Overview
Front Panel Overview Changing the display units The PR2000 comes with factory default display units of PSI for pressure and the real-time pressure graphing feature. These units can be easily changed by pressing the F3 button in the main screen and then selecting F1 for pressure or F2 for the pressure graph. After selecting the channel, the available units can be scrolled through by either pressing the channel’s function key repeatedly or using the UP and DOWN keys... -
Page 8: Screen Descriptions
PR2000 Screen Descriptions Main Screen Displays last measured values Status Screens Run Parameters Memory Status Date and Time Statistics Statistics Menu Screen: Displays options Channel Statistics: Displays statistics available within the statistics menu Type Statistics: Displays statistics from the Statistics Information Screen: Displays... - Page 9 Product User Guide Device Configuration Menu Displays options available within the device configuration menu F1 = DISPLAY: enters Adjust Visibility screen F2 = POWER: enters Power Modes screen F3 = INFO: goes to Device Information screens F4 = EXIT: returns to main screen CANCEL = returns to main screen OK = returns to main screen UP = no function...
-
Page 10: Maintenance
Prices and specifications subject to change. See MadgeTech’s terms and conditions at www.madgetech.com To send devices to MadgeTech for calibration, service or repair, please use the MadgeTech RMA Process by visiting www.madgetech.com, then under the services tab, select RMA Process. -
Page 11: General Specifications
Material 303 stainless steel NPT process connection Dimensions 5.1 in x 4.8 in x 1.705 (130 mm x 122 mm x 43.3 mm) Approvals * PR2000 Pressure Range, Resolution and Accuracy Range (PSI) 0- 300 0- 500 0- 1000 0- 30... - Page 12 MadgeTech, Inc. 6 Warner Road Warner, NH 03278 Phone 603.456.2011 Fax 603.456.2012 www.madgetech.com info@madgetech.com DOC-1148036-00 REV 12 2017.03.27...
