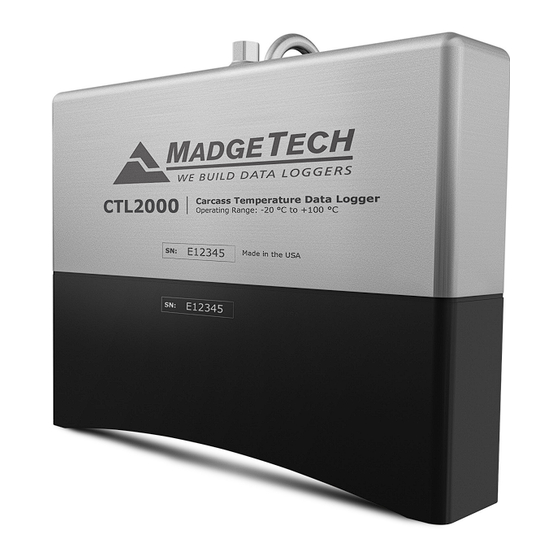

- Page 1 Product User Guide CTL2000 CTL2000 Carcass Temperature Data Logger with 8 Remote Thermocouple Channels To view the full MadgeTech product line, visit our website at www.madgetech.co.nz.
-
Page 2: Table Of Contents
Additional Features & Operation ....3-4 Installation Guide ........... 5 Product Maintenance ........6 Recalibration ..........6 RMA Instructions ..........7 General Specifications ........8-9 Troubleshooting Tips .... Back Cover To view the full MadgeTech product line, visit our website at www.madgetech.co.nz. -
Page 3: Ctl2000 Data Logger
USB port on the PC and plug the opposite end of the cable into the communication port on the CTL2000. Launch the MadgeTech 4 Software. The CTL2000 will appear in the connected devices window indicating the device has been recognized. -
Page 4: Product Overview
-20 °C to 100 °C (-4 °F to +212 °F), allowing it to monitor the entire pasteurization process. Each channel of the CTL2000 can store up to 129,024 readings which aids in the logging of multiples cycles. Reading rate capabilities range from as fast as four readings per second or as infrequently as one reading every 24 hours. -
Page 5: Additional Features & Operation
CTL2000 Additional Features and Operation Password Settings A password of a device that supports password capabilities can be set to protect it from being altered by unauthorized users. If the device does not have password capabilities, no password information will be displayed on the Device Properties screen. -
Page 6: Additional Features & Operation
Photographs courtesy of JBS USA, LLC Still need help? For more troubleshooting tips and information, refer to the built in help section of the MadgeTech 4 software, visit our Knowledge Base online at www.madgetech.com/kbase or contact us for customer support at 603-456-2011. -
Page 7: Installation Guide
IFC200 indicating successful installation. Installing the Software Insert the MadgeTech 4 Software Flash Drive into an open USB port on the PC. If the autorun does not appear, locate the drive on the computer and double click on Autorun.exe. Follow the instructions provided in the Installation Wizard. -
Page 8: Product Maintenance
Call for custom calibration options to accommodate specific application needs. Prices and specifications subject to change. See MadgeTech’s terms and conditions at www.madgetech.com To send devices to MadgeTech for calibration, service or repair, please use the MadgeTech RMA Process (next section). -
Page 9: Rma Instructions
CTL2000 RMA Instructions To send a device back in to MadgeTech, follow the instructions below to create an RMA (Return Merchandise Authorization) on the MadgeTech website: 1. Visit www.madgetech.com, under the Services tab select RMA Process. 2. When the web page opens, please sign in. If this is the first time, select Click here to register an account and create one. -
Page 10: General Specifications
Battery Type (4) 7.2V lithium battery included; user replaceable Battery Life 4 years typical at a 15 minute reading rate MadgeTech recommends annual factory calibration. Calibration Digital calibration within the software is also available. Calibration Date Automatically recorded within the device Data Format Date and time stamped ºC, ºF, K, ºR, mV, V... - Page 11 ±0.5 °C (±0.9 °F) Battery Warning WARNING: FIRE, EXPLOSION AND SEVERE BURN HAZARD. DO NOT RECHARGE, DISASSEMBLE, HEAT ABOVE 100 °C (212 °F), INCINERATE, CRUSH, OR EXPOSE CONTENTS TO WATER. Specifications subject to change. See MadgeTech’s terms and conditions at www.madgetech.co.nz...
-
Page 12: Troubleshooting Tips
If possible, try switching the battery with a new 7.2V lithium battery. • Ensure that no other MadgeTech software (such as MadgeTech 2, or MadgeNET) is running. • Ensure that MadgeTech 4 is being used. MadgeTech 2 and MadgeNET are not the correct software for connecting with the CTL2000.
