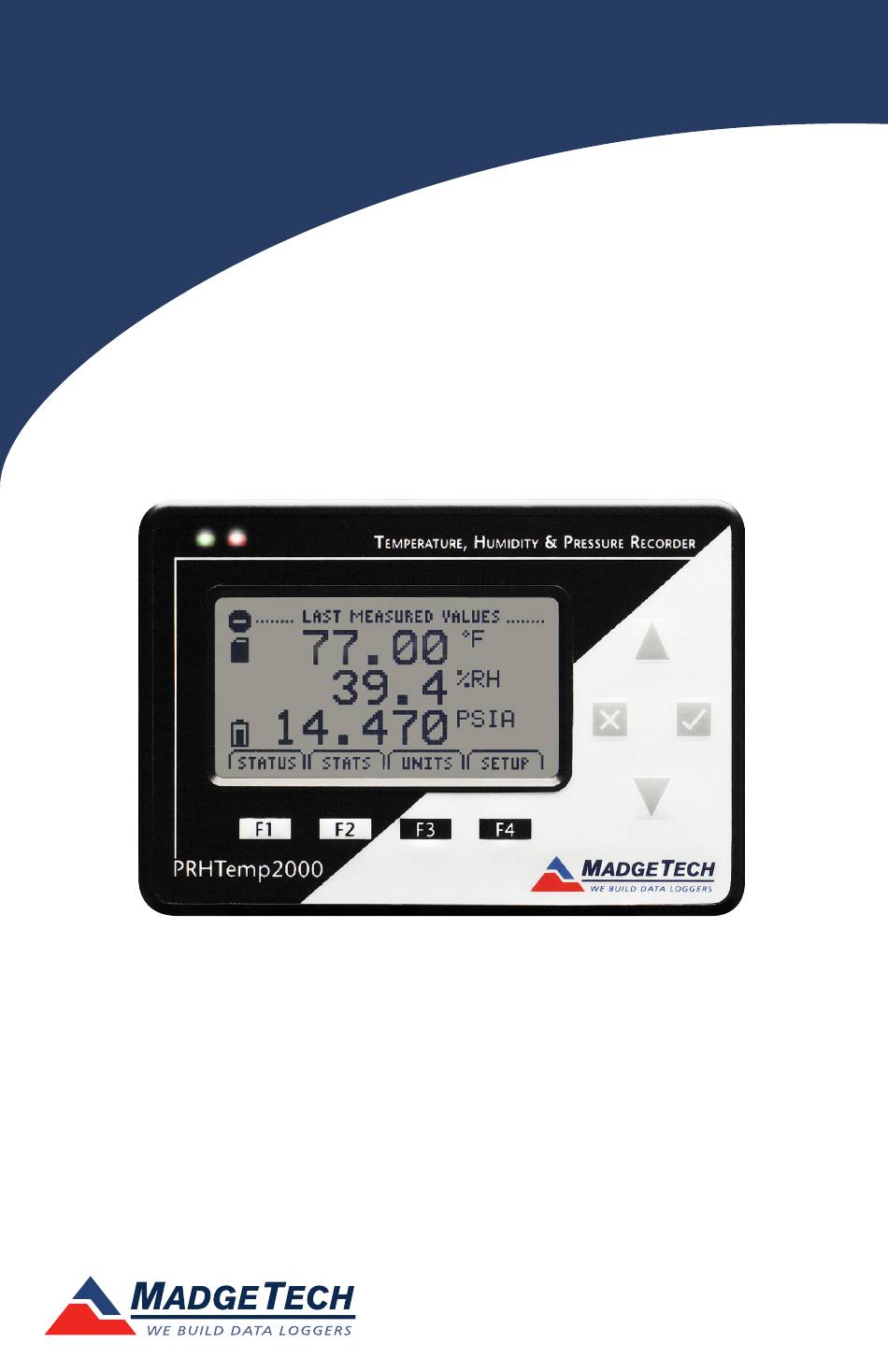

- Page 1 Product User Guide PRHTemp2000 PRHTemp2000 Pressure, Humidity and Temperature Data Logger with LCD Red 485 Dark Blue Pantone 289 Light Blue 58% of Pantone 289...
-
Page 2: Table Of Contents
Device Operation ............5 Computer Interface ............6 Wall Mounting .............. 6 Front Panel Overview ............ 7 Screen Descriptions ........... 8-9 Maintenance ............. 10 General Specifications ..........11 To view the full MadgeTech product line, visit our website at www.madgetech.com. -
Page 3: Quick Start Steps
To download data, connect the data logger to the windows PC with the IFC200, select the device in the list, click the Stop icon, and then click the Download icon. A graph will automatically display the data. Please refer to the PRHTemp2000 Product Manual for full product details by going to www.madgetech.com/product-documentation. -
Page 4: Product Overview
The PRHTemp2000 is a pressure, temperature and humidity data logger with LCD display. The convenient LCD provides access to the current pressure, temperature and humidity readings, as well as minimum, maximum and average statistics. Please refer to the PRHTemp2000 Product Manual for full product details by going to www.madgetech.com/product-documentation. Display Overview... -
Page 5: Software Installation
Software Installation Installing the MadgeTech 4 Software The MadgeTech 4 Software makes the process of downloading and reviewing data quick and easy, and is free to download from the MadgeTech website. Download the MadgeTech 4 Software on a Windows PC by going to: www.madgetech.com/software-download. -
Page 6: Computer Interface
PRHTemp2000 Computer Interface Fully insert the male connector of the IFC200 interface cable into the female receptacle of the data logger. Fully insert the female USB connector into the USB. (Please see the Data Logger Software manual for further information.) *WARNING: Install driver before connecting a device using a USB for the first time. -
Page 7: Front Panel Overview
Front Panel Overview Changing the display units The PRHTemp2000 comes with factory default display units of °C for temperature, %RH for humidity, and PSIA for pressure. These units can be easily changed by pressing the F3 but- ton in the main screen and then selecting either F1 for temperature, F2 for humidity or F3 for pressure. -
Page 8: Screen Descriptions
PRHTemp2000 Screen Descriptions Main Screen: Displays last measured values. F1 = STATUS: goes to status screens F2 = STATS: shows statistics menu F3 = UNITS: goes to unit selection screen F4 = SETUP: shows device configuration menu CANCEL = no function... - Page 9 Product User Guide Unit Selection Menu: Displays units currently being used for each channel F1 = TEMP: selects temperature channel for unit change F2 = HUMID: selects humidity channel for unit change F3 = PRESS: selects pressure channel for unit change F4 = OK: returns to Main Screen Note: unit selection can be changed by pressing the corresponding function key repeatedly or using the UP and DOWN arrows to select appropriate units.
-
Page 10: Maintenance
Prices and specifications subject to change. See MadgeTech’s terms and conditions at www.madgetech.com To send devices to MadgeTech for calibration, service or repair, please use the MadgeTech RMA Process by visiting www.madgetech.com, then under the services tab, select RMA Process. -
Page 11: General Specifications
0%RH to 95%RH (non-condensing) Material Black anodized aluminum Dimensions 4.8 in x 3.3 in x 1.25 in (122 mm x 84 mm x 32 mm) Weight 16 oz (440 g) Approvals Specifications subject to change. See MadgeTech’s terms and conditions at www.madgetech.com... - Page 12 MadgeTech, Inc. 6 Warner Road Warner, NH 03278 Phone 603.456.2011 Fax 603.456.2012 www.madgetech.com info@madgetech.com DOC-1140036-00 REV 11 2016.03.24...
