  • Page 1 TCTemp2000 Data Logger Manual...
  • Page 2: Table Of Contents

    5.2 Status Menu ................2 5.3 Statistics Menu ...............2 5.4 Units..................3 5.5 Setup Menu ................3 Section 6: TCTemp2000 Screen Descriptions .........8 6. Main Screen: ................8 6.2 Status Screens (Run Parameters): ..........8 6.3 Status Screens (Memory Status): ..........9 6.4 Status Screens (Time): ............9 6.5 ID Parameters .................20...
  • Page 3: Channel Statistics

    MadgeTech TCTemp2000 6.7 Channel Statistics: ..............2 6.8 Type Statistics: ................2 6.9 Statistics Information Screen: ..........22 6.0 Unit Selection Menu: ............22 6. Device Configuration Menu: ..........23 6.2 Adjust Visibility: ..............23 6.3 Display Configuration: ............24 6.4 Power Modes Screen: ............25 6.5 Display Update Mode Screen: ..........25 6.6 Power Status Screen: ............26...
  • Page 4: Section 1: Device Safety

    CAUTION: DEVICE MUST BE USED ONLY IN A MANNER CONSIS- TENT WITH THIS MANUAL. NOTICE: WHEN 230VAC SUPPLY USED, MADGETECH SPECIFIES USE OF AC SUPPLY PART # T35-9-00R-3 MANUFACTURED BY ENG ELECTRIC. THIS SUPPLY IS AVAILABLE FROM MADGETECH. 1.1 Model information • Model: TCTemp2000 •...
  • Page 5 MadgeTech TCTemp2000 Dot-Matrix LCD Dimensions: 2.5” x .375” (63mm x 35mm) Text: Configurable channel text size Indicators: Power, status, memory Backlight: Configurable w/auto shut-off and contrast adjustment Start/Stop Time: Software programmable start time and date, up to six months in advance;...
  • Page 6: Warranty

    In the event that a MadgeTech product is found to be defec- tive, MadgeTech will repair or replace the product at its sole discretion. Such repair or replacement shall be the sole remedy of this warranty.
  • Page 7: Section 2: Device Overview

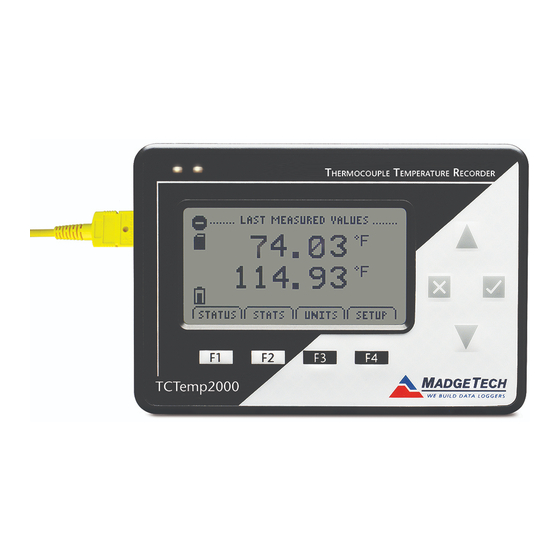

    MadgeTech TCTemp2000 Section 2: Device Overview Power Jack Indicators Communication LCD Display Jack Screen Up Key Okay Key Black anodized Down Key aluminum enclosure Function Keys Cancel Key Page 6...
  • Page 8: Section 3: Status Indicator Icons

    Empty Full The memory status icons indicate the amount of memory left for data storage. If the TCTemp2000 is in wraparound mode, the memory status icon will always indicate empty. 3.3 Running Indicator Indicates that the TCTemp2000 is taking readings. The icons cycle periodically.
  • Page 9: Delay Start Indicator

    The wait icon indicates that the device is busy. 3.6 Stop Icon Indicates that the TCTemp2000 is not currently taking readings. 3.7 External Power Icon Indicates that the TCTemp2000 is powered by an external source. 3.8 Reset Icon Indicates that the device has been reset. Page 8...
  • Page 10: Section 4: Front Panel Overview

    Section 4: Front Panel Overview 4.1 Changing the display units The TCTemp2000 comes with factory default display units of °C for both the internal temperature and external probe channels. These units can be easily changed by pressing the F3 button in the main screen and then selecting either F for the internal temperature or F2 for external probe.
  • Page 11: Checking The Memory Status

    Main Screen -> F4 -> F2 -> F4 -> F4 4.5 Changing the Contrast The TCTemp2000’s LCD screen contrast values can be changed in two ways. One method is outlined in the Function Reference Guide. A faster, simpler way involves simultaneously pressing the CANCEL and UP or DOWN repeat- edly in any screen.
  • Page 12: Section 5: Prhtemp2000 Function Reference

    Section 5: TCTemp2000 Function Reference 5.1 Main Screen The main screen of the TCTemp2000 features a real-time display of most recently measured internal temperature and external probe data. At the bot- tom of the main screen are tabs corresponding to each of the four function keys.
  • Page 13: Statistics Menu

    5.3.ii Viewing statistics by type The TCTemp2000’s Statistics Menu also provides the option to view statistics by type. This can be done by pressing F2 while in the Statistics Menu. Here the function keys F, F2, and F3 correspond to the three different types of statistics: average, minimum, and maximum respectively.
  • Page 14: Units

    OK button or the F4 key) accepts and confirms the unit selection. Pressing the CANCEL key cancels the unit changing action and reverts to the previously selected units. The TCTemp2000 offers most commonly used units. 5.5 Setup Menu Pressing the F4 key while in the Main Screen will display the Device Con- figuration screen.
  • Page 15 MadgeTech TCTemp2000 that it will be shown. Channels can be toggled by either repeatedly press- ing the channel’s corresponding function key or by using the UP and DOWN keys. 5.5.i.b Display Configuration By selecting “MORE” (either by pressing the F4 key on the Adjust Visibility Screen or by pressing the OK button) in the Display section the Display Configuration screen can be viewed.
  • Page 16 LED Modes The function of the two LEDs on the upper left corner of the TCTemp2000 can be regulated by first pressing the F3 key to highlight the LED parameter configuration tab. Once the tab is highlighted the option can be changed by pressing the F3 key repeatedly or using the UP and DOWN keys to select either “Enabled”...
  • Page 17 On this screen the battery type is displayed and should be changed by the user based on whether a Lithium or Alkaline battery is used in the TCTemp2000. This can be changed by first pressing the F button to highlight the type parameter configuration tab.
  • Page 18 Data Logger Manual It is important to keep your device properly calibrated to ensure accurate readings. 5.5.iii.d Device Version Pressing the F4 key while viewing the Maximum or Minimum Device Range screens will display the Device Version screen, containing information such as firmware revision number and communications baud rate.
  • Page 19: Section 6: Tctemp2000 Screen Descriptions

    MadgeTech TCTemp2000 Section 6: TCTemp2000 Screen Descriptions 6.1 Main Screen: Displays last measured values. F1 = STATUS: goes to status screens F2 = STATS: shows statistics menu F3 = UNITS: goes to unit selection screen F4 = SETUP: shows device configuration menu...
  • Page 20: Status Screens (Memory Status)

    Data Logger Manual OK = returns to main screen UP = no function DOWN = no function 6.3 Status Screens (Memory Status): Displays information about the device’s memory capabilities including percent of memory available (memory left), number of readings taken so far (readings), max number of readings (max readings), and wrap.
  • Page 21: Id Parameters

    MadgeTech TCTemp2000 F3 = TIME: displays date and time screen F4 = MORE: displays ID parameters screen CANCEL = returns to main screen OK = returns to main screen UP = no function DOWN = no function 6.5 ID Parameters Displays information relating to device identity.
  • Page 22: Channel Statistics

    Data Logger Manual OK = returns to main screen UP = no function DOWN = no function 6.7 Channel Statistics: Displays statistics (maximum recorded value, minimum recorded value, and aver- age recorded value) based on channel (Internal Temperature or External Probe). F1 = TEMP…: Displays internal temperature statistics F2 = PROBE: Displays external probe statistics F3 = no function...
  • Page 23: Statistics Information Screen

    MadgeTech TCTemp2000 CANCEL = returns to Statistics Menu OK = returns to Statistics Menu UP = no function DOWN = no function 6.9 Statistics Information Screen: Displays current statistics information including the number of recorded readings, start date, and start time.
  • Page 24: Device Configuration Menu

    Data Logger Manual repeatedly or using the UP and DOWN arrows to select appropriate units. CANCEL = returns to main menu without accepting changes OK = accepts changes and returns to main menu 6.11 Device Configuration Menu: Displays options available within the device configuration menu. F1 = DISPLAY: enters Adjust Visibility screen F2 = POWER: enters Power Modes screen F3 = INFO: goes to Device Information screens...
  • Page 25: Display Configuration

    MadgeTech TCTemp2000 CANCEL = return to Display Configuration Menu OK = moves on to Display Configuration screen UP = once channel parameter configuration tab is highlighted scrolls through available options DOWN = once channel parameter configuration tab is highlighted scrolls through available options 6.13 Display Configuration:...
  • Page 26: Power Modes Screen

    Data Logger Manual 6.14 Power Modes Screen: Displays information regarding the devices different power modes including the display visibility, backlight options, and LED modes. F1 = DISPLAY: first highlights and then changes display visibility (On: full vis- ibility or Auto: shuts off after 5 minutes of inactivity) F2 = BKLGHT: first highlights and then changes backlight options (On: backlight always on, Auto: backlight shuts off after 30 sec of inactivity, or Off: backlight always off)
  • Page 27: Power Status Screen

    6.17 Device Information Screens (Minimum Device Range): Displays values indicating minimum internal temperature and external probe data detectable by the TCTemp2000. For all Device Information Screens: F1 = MIN: no function F2 = MAX: shows Device Range (Maximum) screen...
  • Page 28: Device Information Screens (Maximum Device Range)

    DOWN = No function 6.18 Device Information Screens (Maximum Device Range): Displays values indicating maximum internal temperature and external probe (for thermocouple selected) data detectable by the TCTemp2000. 6.19 Device Information Screens (Device Version): Displays device version information. F1 = VERS: no function...
  • Page 29: Device Information Screens (Firmware Version)

    MadgeTech TCTemp2000 6.20 Device Information Screens (Firmware Version): Displays device firmware version information. F1 = VERS: shows Device Version screen F2 = FIRM: no function F3 = MORE: shows Device Range (Minimum) screen F4 = EXIT: Returns to Device Configuration Menu...
  • Page 30: Calibration Information Screens (Internal Temperature Cal.)

    Data Logger Manual 6.22 Calibration Information Screens (Internal Temperature Cali- bration): Displays calibration information for internal temperature channel. F1 = DATE: shows calibration date information F2 = AMB: Shows ambient calibration information F3 = PROBE: shows external probe calibration information F4 = MORE: shows further calibration information screens CANCEL = Returns to Device Configuration Menu OK = Returns to Device Configuration Menu...
  • Page 31: Device Reset Screen (Hardware Reset)

    MadgeTech TCTemp2000 6.24 Device Reset Screen (Hardware Reset): Displayed as notification when a hardware reset has occurred. F1 = OK: accepts notification and displays main screen F2 = no function F3 = no function F4 = no function CANCEL = no function...
  • Page 32: Device Reset Screen (Power Interruption)

    Data Logger Manual 6.25 Device Reset Screen (Power Interruption): Displayed as notification when power is interrupted during device operation. F1 = OK: accepts notification and displays main screen F2 = no function F3 = no function F4 = no function CANCEL = no function OK = accepts notification and displays main screen UP = no function...
  • Page 33: Section 7: Computer Interface

    *WARNING: Install driver before connecting a device using a USB for the first time. See the MadgeTech Data Logger Software manual for further information.) Note: Most MadgeTech data loggers can use both IFC110 and IFC200 interface cables. For interface cable data logger clarification contact technical support at 603-456-2011 or support@madgetech.com.
  • Page 34: Section 8: Wall Mounting

    Data Logger Manual Section 8: Wall Mounting Power Supply Cable Slot Page 33...
  • Page 35: Section 9: Maintenance

    The battery life is affected by battery type, ambient temperature, sample rate, sensor selection, offloads and LCD display usage. The TCTemp2000 has a battery status indicator on the LCD display. If the battery indication is low, or if the device seems to be inoperable, it is recommended that the battery be changed.
  • Page 36: Section 10: Terms And Conditions

    Data Logger Manual Section 10: Terms and Conditions All products furnished by MadgeTech, Inc. (“Seller”) shall be in accordance with the following terms and conditions unless otherwise stated in writing: These Terms and Conditions (“Terms and Conditions”) govern (a) all sales quotations and sales of components, equipment, parts, and other products (“Product”) from, and (b) all service...
  • Page 37: Limitations

    MadgeTech TCTemp2000 CLAIMS ANY AND ALL OTHER REPRESENTATIONS AND WARRANTIES OF ANY KIND WHATSOEVER, WHETHER EXPRESSED, IMPLIED OR STATUTORY, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NONIN- FRINGEMENT OR ACCURACY, ADEQUACY OR COMPLETENESS OF DATA MEASUREMENT, WITH RESPECT TO ANY OF THE SELLER MANUFACTURED PRODUCTS, CONSUMABLES OR SOFT- WARE, OR ANY OF THE SELLER PROVIDED SERVICES.
