Summary of Contents for MadgeTech PRHTemp2000
- Page 1 PRHTemp2000 Data Logger Manual...
-
Page 2: Table Of Contents
5.2 Status Menu ................2 5.3 Statistics Menu ...............2 5.4 Units..................3 5.5 Setup Menu ................3 Section 6: PRHTemp2000 Screen Shot Descriptions ......8 6. Main Screen: ................8 6.2 Status Screens (Run Parameters): ..........8 6.3 Status Screens (Memory Status): ..........9 6.4 Status Screens (Time): ............9 6.5 ID Parameters .................20... -
Page 3: Channel Statistics
MadgeTech PRHTemp2000 6.7 Channel Statistics: ..............2 6.8 Type Statistics: ................2 6.9 Statistics Information Screen: ..........22 6.0 Unit Selection Menu: ............22 6. Device Configuration Menu: ..........23 6.2 Adjust Visibility: ..............23 6.3 Display Configuration: ............24 6.4 Power Modes Screen: ............25 6.5 Display Update Mode Screen: ..........25 6.6 Power Status Screen: ............26... -
Page 4: Section 1: Device Safety
CAUTION: DEVICE MUST BE USED ONLY IN A MANNER CONSIS- TENT WITH THIS MANUAL. NOTICE: WHEN 230VAC SUPPLY USED, MADGETECH SPECIFIES USE OF AC SUPPLY PART # T35-9-00R-3 MANUFACTURED BY ENG ELECTRIC. THIS SUPPLY IS AVAILABLE FROM MADGETECH. 1.1 Model information • Model: PRHTemp2000 •... - Page 5 MadgeTech PRHTemp2000 Start/Stop Time: Software programmable start time and date, up to six months in advance; programmable stop time Memory: 87,38 readings per channel; 262,43 total readings; software configurable memory wrap Reading Rate: reading every 2 seconds to every 24 hours...
-
Page 6: Warranty
In the event that a MadgeTech product is found to be defec- tive, MadgeTech will repair or replace the product at its sole discretion. Such repair or replacement shall be the sole remedy of this warranty. -
Page 7: Section 2: Device Overview

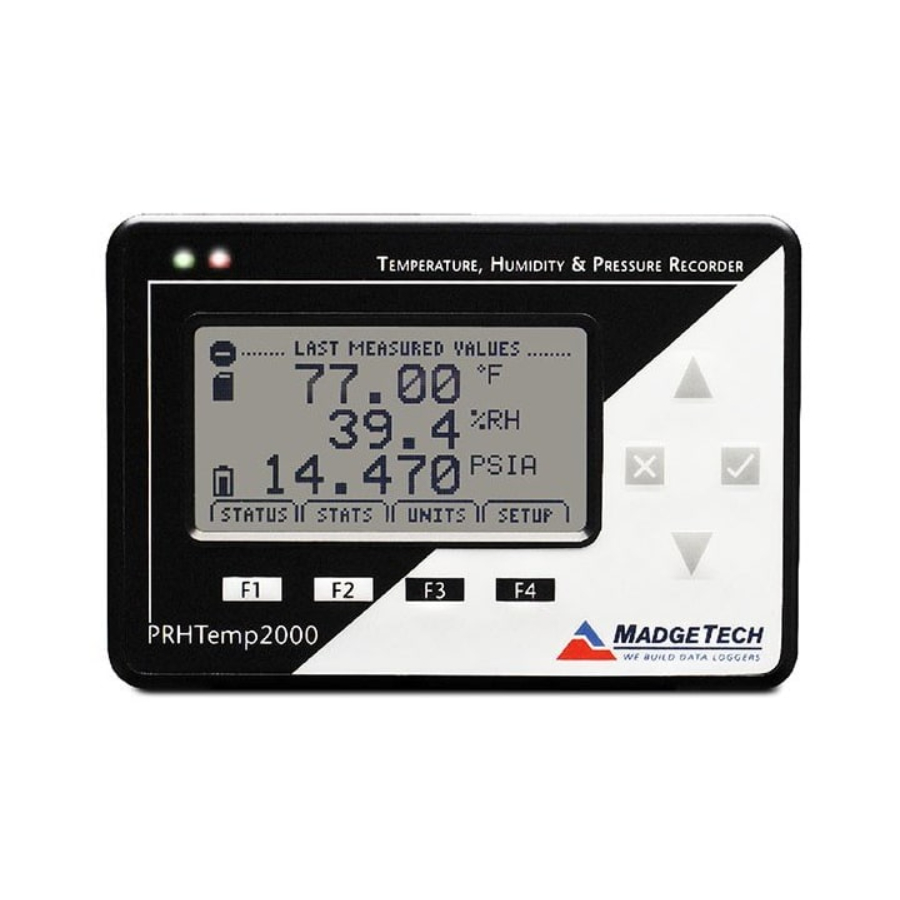

MadgeTech PRHTemp2000 Section 2: Device Overview Pressure Sensor Power Jack Temperature and Humidity Sensor LED Lights Ventilation Holes Communication LCD Display Jack Screen Up Key Okay Key Bleach anodized Down Key aluminum enclosure Function Keys Cancel Key Page 6... -
Page 8: Section 3: Status Indicator Icons
Empty Full The memory status icons indicate the amount of memory left for data storage. If the PRHTemp2000 is in wraparound mode, the memory status icon will indicate empty. 3.1 Running Indicator Indicates that the PRHTemp2000 is taking readings. The icons cycle periodically. -
Page 9: Delay Start Indicator
3.3 Wait Icons The wait icons indicate that the device is busy. 3.4 Stop Icon Indicates that the PRHTemp2000 is not currently taking readings. 3.5 External Power Icon Indicates that the PRHTemp2000 is powered by an external source. -
Page 10: Section 4: Front Panel Overview
Section 4: Front Panel Overview 4.1 Changing the display units The PRHTemp2000 comes with factory default display units of °C for tem- perature, %RH for humidity, and PSIA for pressure. These units can be easily changed by pressing the F3 button in the main screen and then selecting either F for temperature, F2 for humidity or F3 for pressure. -
Page 11: Checking The Memory Status
Main Screen -> F4 -> F2 -> F4 -> F4 4.5 Changing the Contrast The PRHTemp2000’s LCD screen contrast values can be changed in two ways. One method is outlined in the Function Reference Guide. A faster, simpler way involves simultaneously pressing the CANCEL and UP or DOWN button in any screen. -
Page 12: Section 5: Prhtemp2000 Function Reference
Section 5: PRHTemp2000 Function Reference 5.1 Main Screen The main screen of the PRHTemp2000 features a real-time display of most recently measured temperature, humidity, and pressure data. At the bottom of the main screen are tabs corresponding to each of the four function keys. -
Page 13: Statistics Menu
5.3.ii Viewing statistics by type The PRHTemp2000’s Statistics Menu also provides the option to view statis- tics by type. This can be done by pressing F2 while in the Statistics Menu. Here the function keys F, F2, and F3 correspond to the three different types of statistics, average, minimum, and maximum respectively. -
Page 14: Units
(either by pressing the OK button or the F4 key) accepts and confirms the unit selection. Pressing the CANCEL key cancels the unit changing action and reverts to the previously selected units. The PRHTemp2000 offers most commonly used units. 5.5 Setup Menu Pressing the F4 key while in the Main Screen will display the Device Con- figuration screen. - Page 15 MadgeTech PRHTemp2000 indicating that it will be shown. Channels can be toggled by either repeatedly pressing the channel’s corresponding function key or by using the UP and DOWN keys. 5.5.i.b Display Configuration By selecting “MORE” (either by pressing the F4 key on the Adjust Visibility Screen or by pressing the OK button) in the Display section the Display Configuration screen can be viewed.
- Page 16 LED Modes The function of the two LEDs on the upper left corner of the PRHTemp2000 can be regulated by first pressing the F3 key to highlight the LED parameter configuration tab. Once the tab is highlighted the option can be changed by pressing the F3 key repeatedly or using the UP and DOWN keys to select either “Enabled”...
- Page 17 On this screen the battery type is displayed and should be changed by the user based on whether a Lithium or Alkaline battery is used in the PRHTemp2000. This can be changed by first pressing the F button to highlight the type parameter configuration tab.
- Page 18 Data Logger Manual 5.5.iii.d Device Version Pressing the F4 key while viewing the Maximum or Minimum Device Range screens will display the Device Version screen, containing information such as firmware revision number and communications baud rate. Values on this screen cannot be modified. 5.5.iii.e Firmware Version Firmware details can be viewed by pressing the F2 key while viewing the Device Version screens.
-
Page 19: Section 6: Prhtemp2000 Screen Shot Descriptions
MadgeTech PRHTemp2000 Section 6: PRHTemp2000 Screen Shot Descriptions 6.1 Main Screen: Displays last measured values. F1 = STATUS: goes to status screens F2 = STATS: shows statistics menu F3 = UNITS: goes to unit selection screen F4 = SETUP: shows device configuration menu... -
Page 20: Status Screens (Memory Status)
Data Logger Manual OK = returns to main screen UP = no function DOWN = no function 6.3 Status Screens (Memory Status): Displays information about the device’s memory capabilities including percent of memory available (memory left), number of readings taken so far (readings), max number of readings (max readings), and wrap. -
Page 21: Id Parameters
MadgeTech PRHTemp2000 F3 = TIME: displays time information screen F4 = MORE: displays the second status screen CANCEL = returns to main screen OK = returns to main screen UP = no function DOWN = no function 6.5 ID Parameters Displays information relating to device identity. -
Page 22: Channel Statistics
Data Logger Manual CANCEL = returns to main screen OK = returns to main screen UP = no function DOWN = no function 6.7 Channel Statistics: Displays statistics (Maximum recorded value, Minimum recorded value, and average recorded value) based on channel (Temperature, Humidity, or Pressure). F1 = TEMP…: Displays temperature statistics F2 = HUMID…: Displays humidity statistics F3 = PRESS…: Displays pressure statistics... -
Page 23: Statistics Information Screen
MadgeTech PRHTemp2000 F4 = EXIT: Returns to Statistics Menu CANCEL = returns to Statistics Menu OK = returns to Statistics Menu UP = no function DOWN = no function 6.9 Statistics Information Screen: Displays current statistics information including the number of recorded readings, start date, and start time. -
Page 24: Device Configuration Menu
Data Logger Manual F4 = OK: returns to Main Screen Note: unit selection can be changed by pressing the corresponding function key repeatedly or using the UP and DOWN arrows to select appropriate units. CANCEL = returns to main menu without accepting changes OK = accepts changes and returns to main menu 6.11 Device Configuration Menu: Displays options available within the device configuration menu. -
Page 25: Display Configuration
MadgeTech PRHTemp2000 F3 = PRESS: first highlights and then changes the viewing options of the pressure channel F4 = MORE: moves on to Display Configuration screen CANCEL= return to Display Configuration Menu OK = moves on to Display Configuration screen... -
Page 26: Power Modes Screen
Data Logger Manual 6.14 Power Modes Screen: Displays information regarding the devices different power modes including the display visibility, backlight options, and LED modes. F1 = DISPLAY: first highlights and then changes display visibility (On: full vis- ibility or Auto: shuts off after 5 minutes of inactivity) F2 = BKLGHT: first highlights and then changes backlight options (On: backlight always on, Auto: backlight shuts off after 30 sec of inactivity, or Off: backlight always off) -
Page 27: Power Status Screen
6.17 Device Information Screens (Minimum Device Range): Displays values indicating minimum temperature, pressure and humidity detect- able by the PRHTemp2000. For all Device Information Screens: F1 = MIN: no function F2 = MAX: shows Device Range (Maximum) screen... -
Page 28: Device Information Screens (Maximum Device Range)
UP = No function DOWN = No function 6.1 Device Information Screens (Maximum Device Range): Displays values indicating maximum temperature, pressure and humidity detect- able by the PRHTemp2000. 6.2 Device Information Screens (Device Version): Displays device version information. F1 = VERS: no function... -
Page 29: Device Information Screens (Firmware Version)
MadgeTech PRHTemp2000 6.1 Device Information Screens (Firmware Version): Displays device firmware version information. F1 = VERS: shows Device Version screen F2 = FIRM: no function F3 = MORE: shows Device Range (Minimum) screen F4 = EXIT: Returns to Device Configuration Menu... -
Page 30: Calibration Information Screens (Temperature Calibration)
Data Logger Manual 6.1 Calibration Information Screens (Temperature Calibration): Displays calibration information for temperature channel. F1 = DATE: shows calibration date information F2 = TEMP: no function F3 = HUMID: shows humidity calibration information F4 = MORE: shows further calibration information screens CANCEL = Returns to Device Configuration Menu OK = Returns to Device Configuration Menu UP = No function... -
Page 31: Calibration Information Screens (Pressure Calibration)
MadgeTech PRHTemp2000 6.1 Calibration Information Screens (Pressure Calibration): Displays calibration information for pressure channel. For all Device Information Screens: F1 = PRESS…: no function F3 = MORE: shows further calibration information screens F4 = EXIT: Returns to Device Configuration Menu... -
Page 32: Device Reset Screen (Power Interruption)
Data Logger Manual 6.3 Device Reset Screen (Power Interruption): Displayed as notification when power is interrupted during device operation. F1 = OK: accepts notification and displays main screen F2 = no function F3 = no function F4 = no function CANCEL = no function OK = accepts notification and displays main screen UP = no function... -
Page 33: Section 7: Computer Interface
USB. (Please see the MadgeTech Datalogger Software manual for further information) Note: Most MadgeTech data loggers can use both IFC110 and IFC200 interface cables. For interface cable data logger clarification contact technical support at 603-456-2011 or support@madgetech.com. -
Page 34: Section 8: Wall Mounting
Data Logger Manual Section 8: Wall Mounting Power Supply Cable Slot Page 33... -
Page 35: Section 9: Maintenance
The battery life is affected by battery type, ambient temperature, sample rate, sensor selection, offloads and LCD display usage. The PRHTemp2000 has a battery status indicator on the LCD display. If the battery indication is low, or if the device seems to be inoperable, it is recommended that the battery be changed. -
Page 36: Terms And Conditions
Data Logger Manual Terms and Conditions All products furnished by MadgeTech, Inc. (“Seller”) shall be in accordance with the following terms and conditions unless otherwise stated in writing: These Terms and Conditions (“Terms and Conditions”) govern (a) all sales quotations and sales of components, equipment, parts, and other products (“Product”) from, and (b) all service... -
Page 37: Software License
MadgeTech PRHTemp2000 WHETHER EXPRESSED, IMPLIED OR STATUTORY, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NONIN- FRINGEMENT OR ACCURACY, ADEQUACY OR COMPLETENESS OF DATA MEASUREMENT, WITH RESPECT TO ANY OF THE SELLER MANUFACTURED PRODUCTS, CONSUMABLES OR SOFT- WARE, OR ANY OF THE SELLER PROVIDED SERVICES. - Page 38 PO Box 50 201 Route 103 West, Warner, NH 03278 Phone 603.456.2011 Fax 603.456.2012 www.madgetech.com info@madgetech.com...
