Ergotron StyleView Hot Swap Power system User Manual page 12

NEO-FLEX
NEO-FLEX

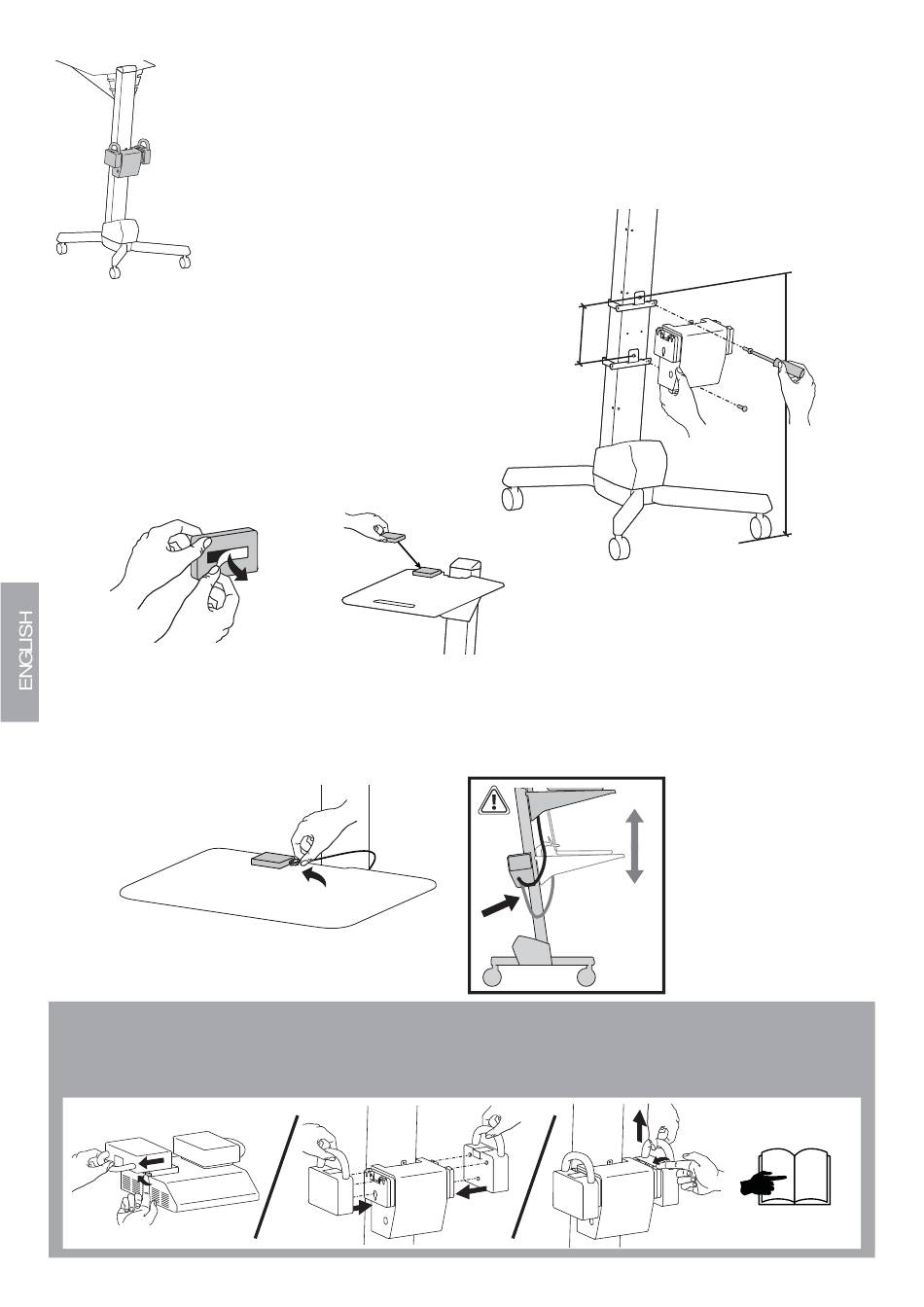

Mounting brackets ordered separately
1
Follow instructions provided with
the mounting brackets.
3
Attach user interface.
4
Route cables
a. If using DC Adapters, attach the two available power cables to those
b. Route Ethernet cable to user interface
NOTE: Leave enough slack in cable to allow for full lift motion of cart!
SEE PAGE 8 FOR BATTERY ATTACHMENT/REMOVAL STEPS
12 of 13
2
END OF NEO-FLEX CART INSTALLATION -
7.5"
(190 mm)
32"
(813 mm)
8
888-83-071-G-00 rev. B • 11/13
